Glass Hatch Opener: Notes — 2011 Lexus GX 460 Service Manual ~ FixVault

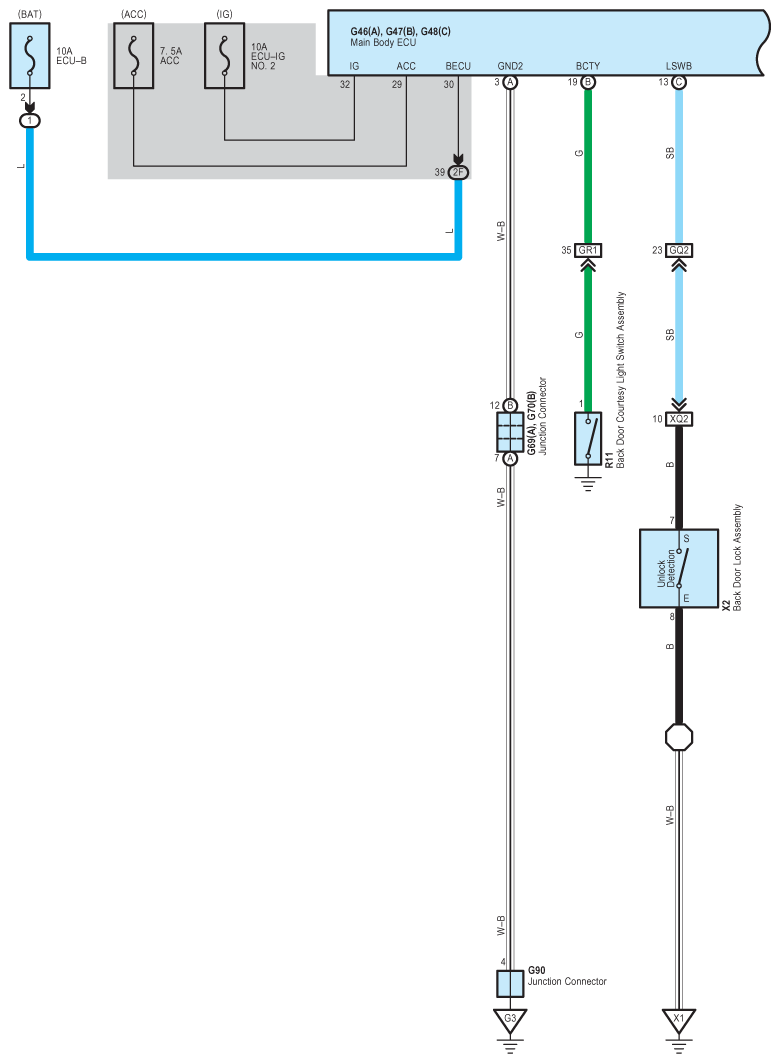

Fig 1: Glass Hatch Opener - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

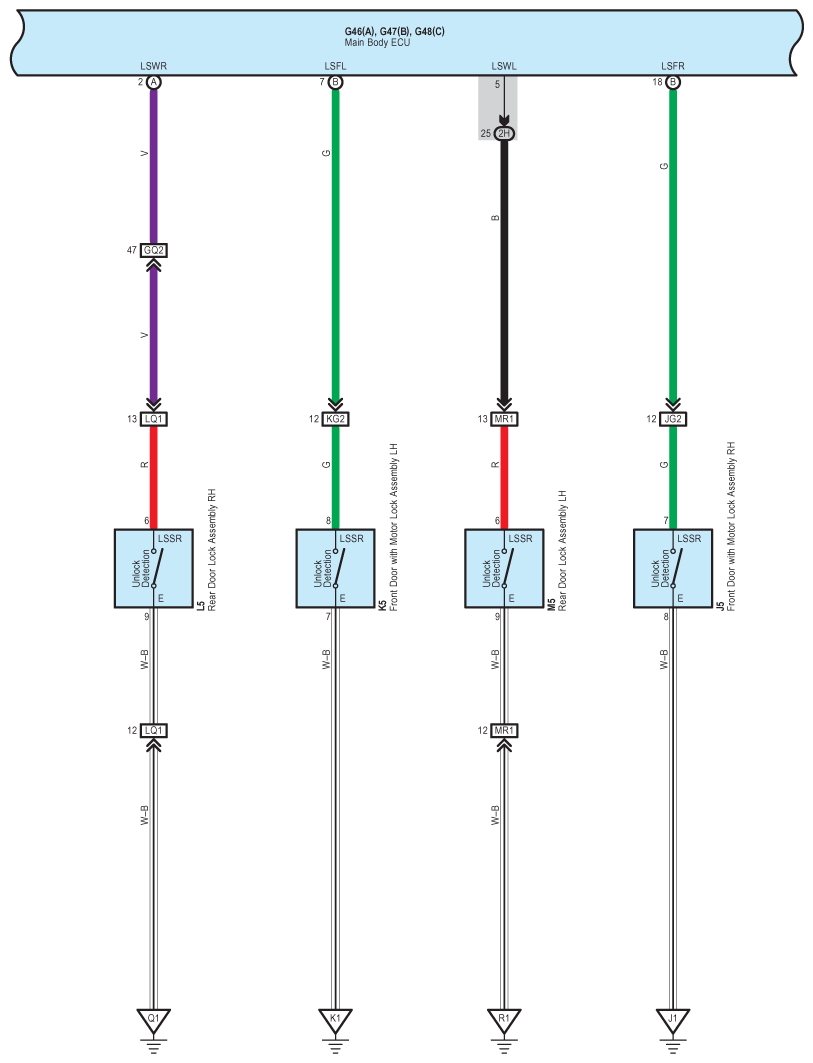

Fig 2: Glass Hatch Opener - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

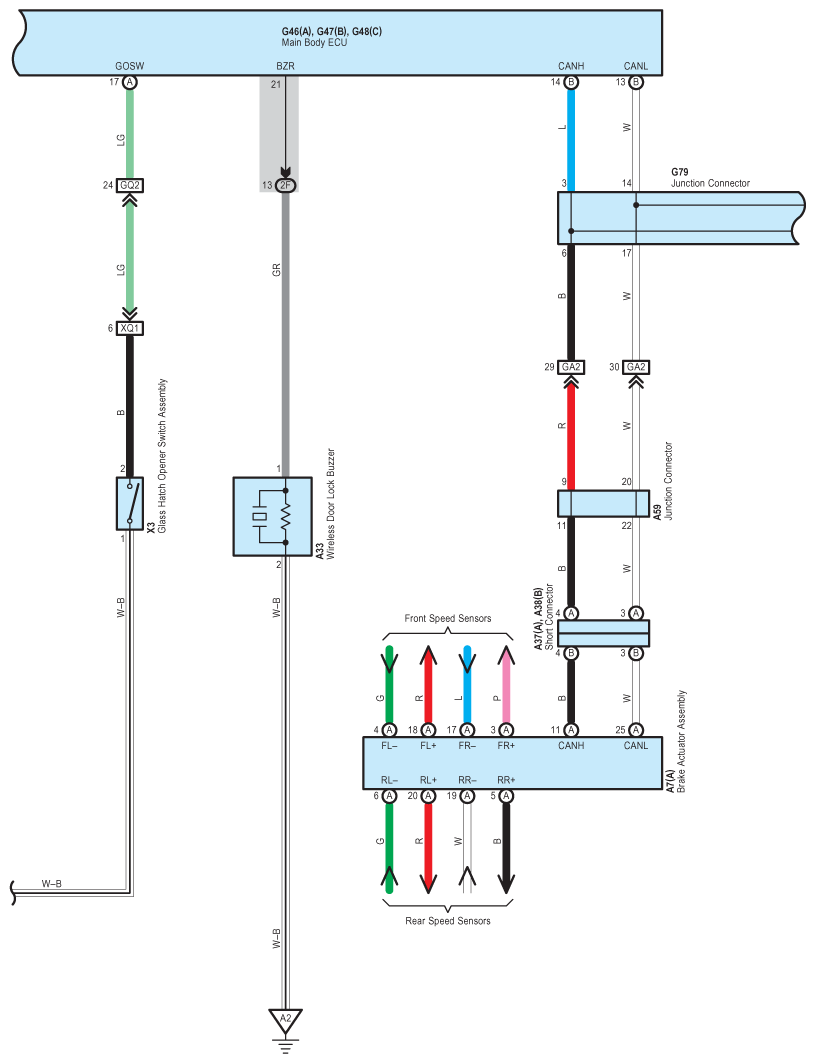

Fig 3: Glass Hatch Opener - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

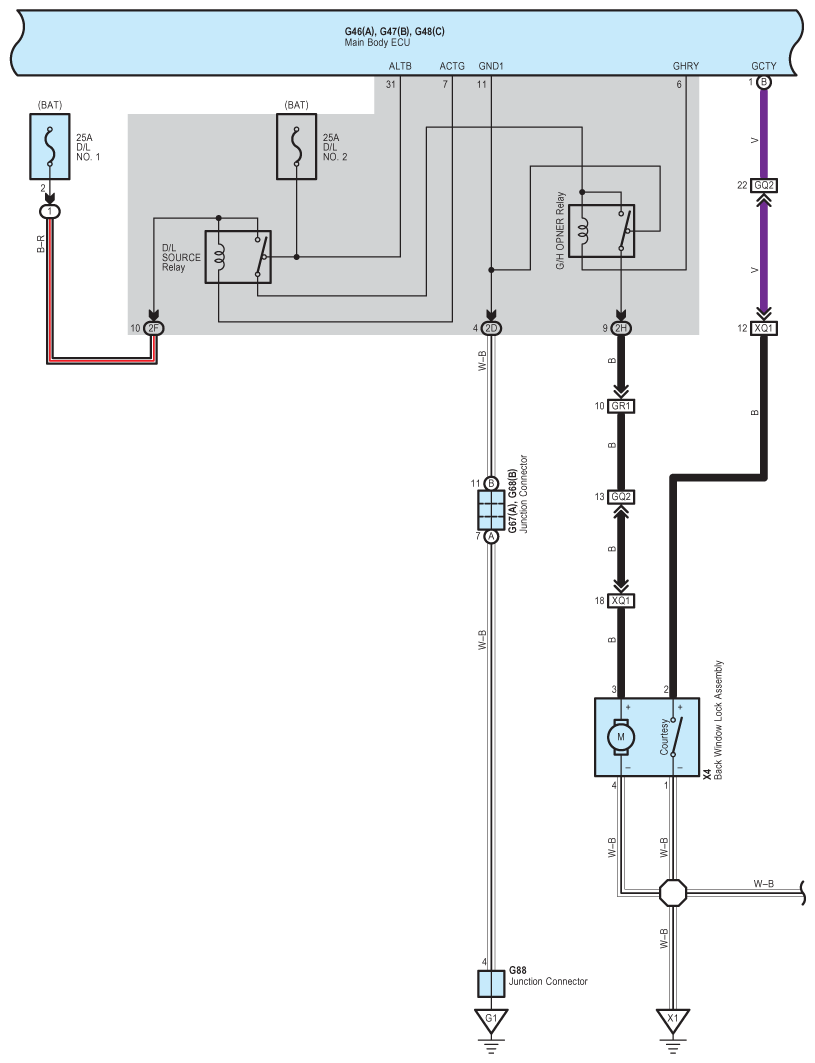

Fig 4: Glass Hatch Opener - Circuit Diagram (4 Of 5)

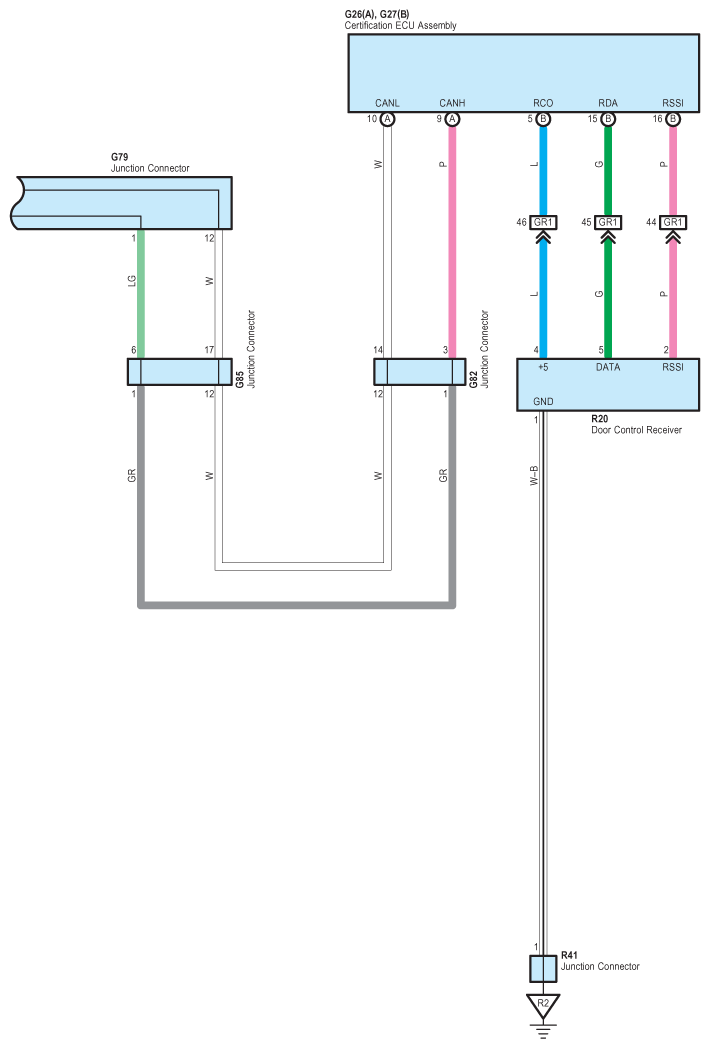

Fig 5: Glass Hatch Opener - Circuit Diagram (5 Of 5)
