Heat Steering Wheel System
›
Notes
Heat Steering Wheel System: Notes

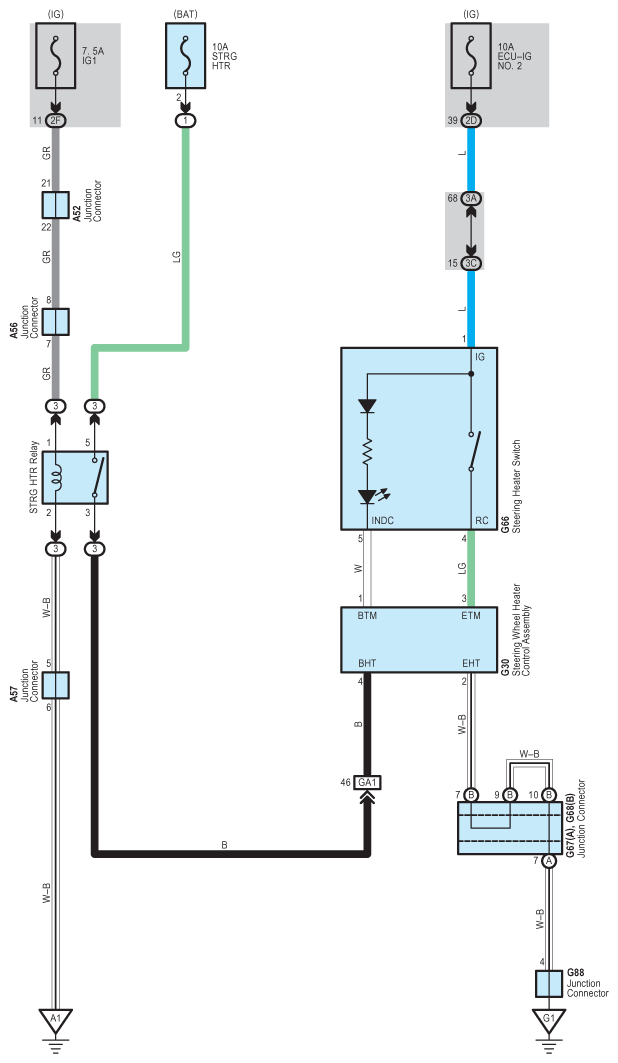

Fig 1: Heat Steering Wheel System - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
