Camshaft Oil Control Valve
›
Components
›
Illustration
Camshaft Oil Control Valve: Components: Illustration

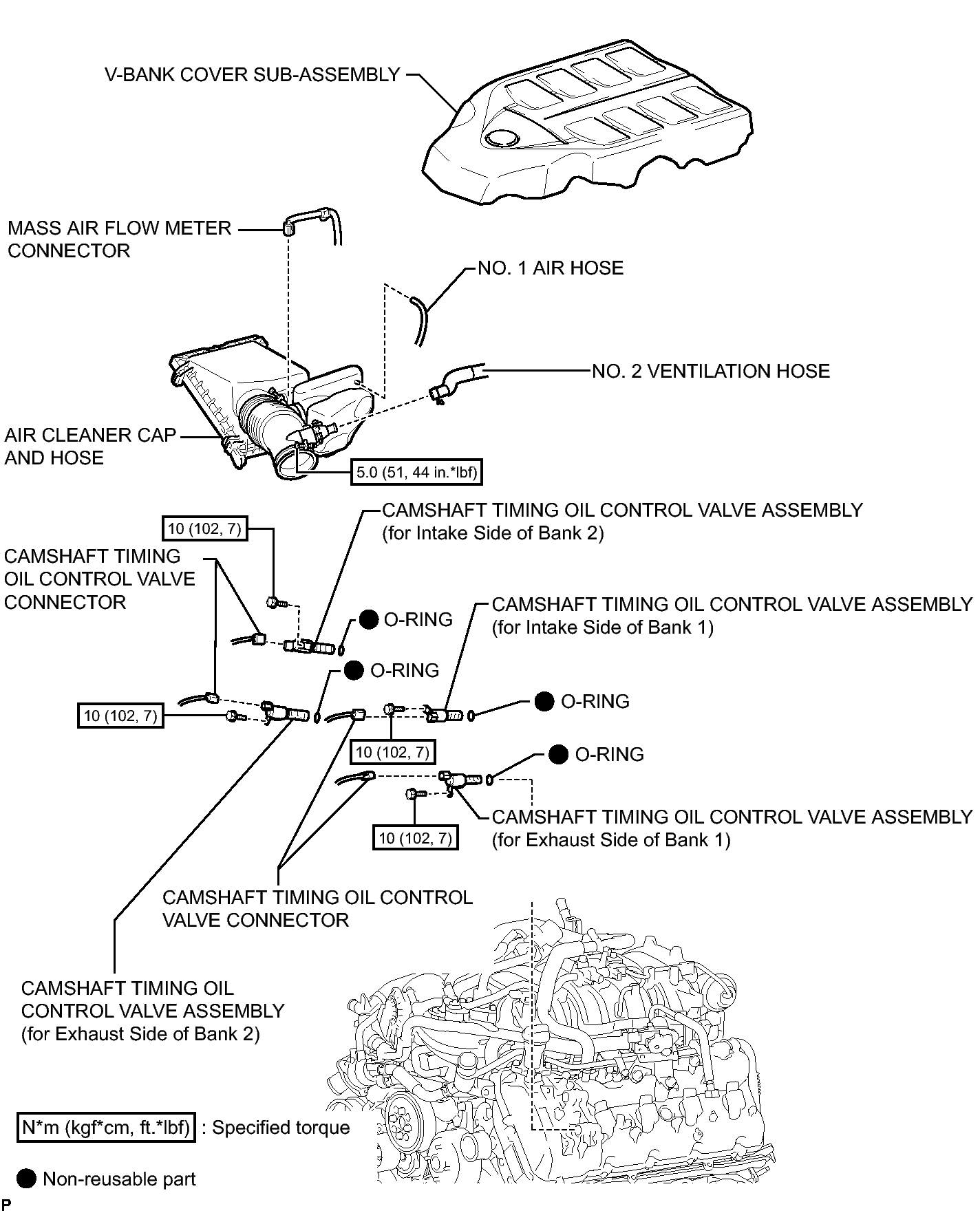

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications
