Power Rear No. 2 Seat with Stowing Function: Notes

WARNING: This page is about a different car, the 2010 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

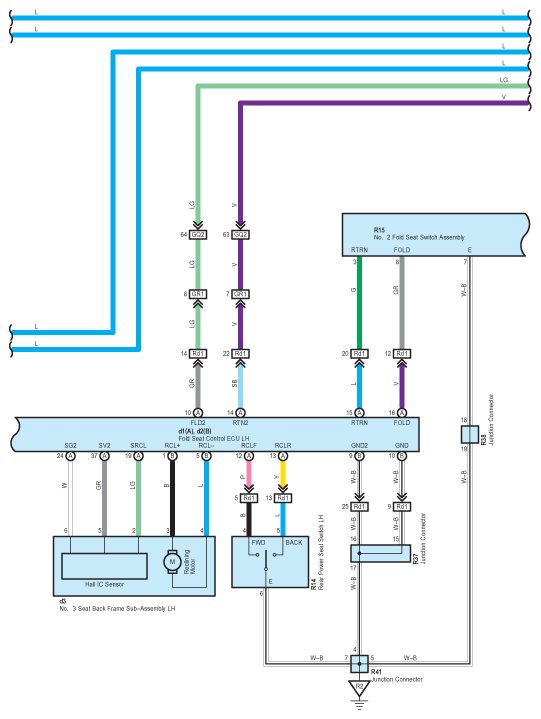

Fig 1: Power Rear No. 2 Seat With Stowing Function - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

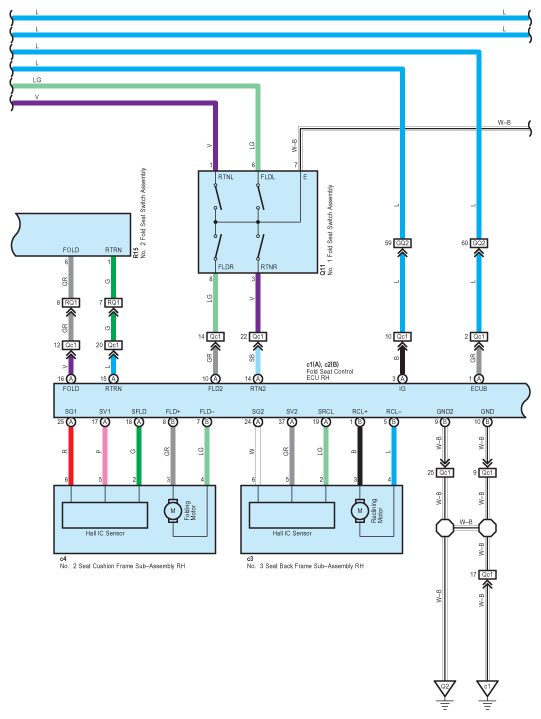

Fig 2: Power Rear No. 2 Seat With Stowing Function - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

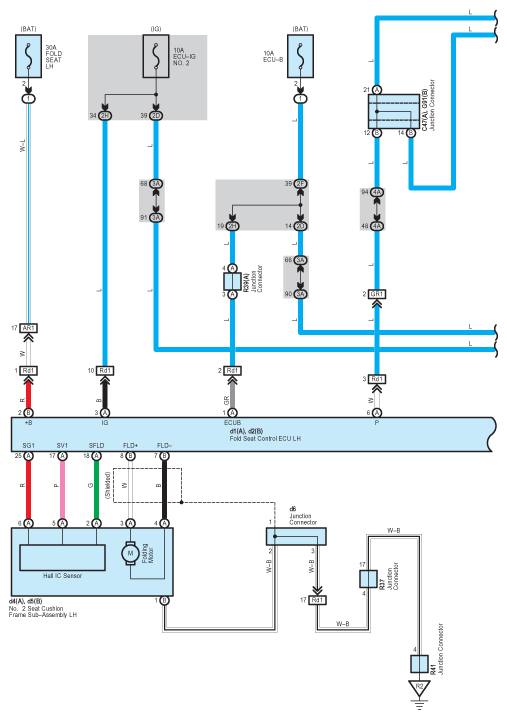

Fig 3: Power Rear No. 2 Seat With Stowing Function - Circuit Diagram (3 Of 4)

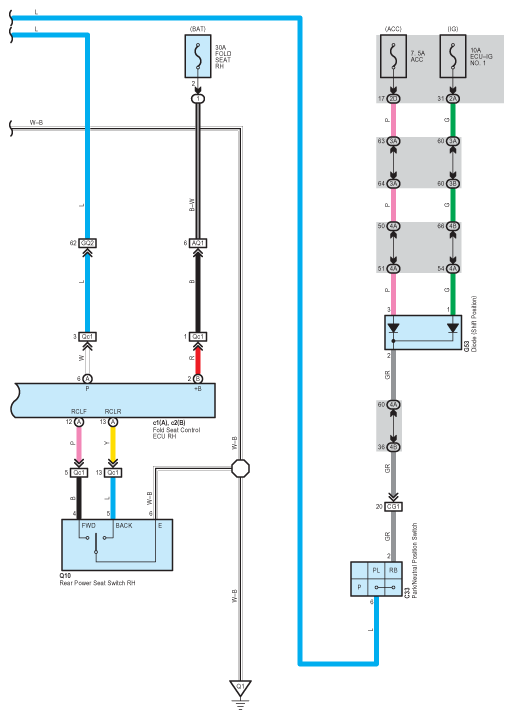

Fig 4: Power Rear No. 2 Seat With Stowing Function - Circuit Diagram (4 Of 4)
