System Diagram

The configuration of the electronic control system for the A760F automatic transmission is as shown in the following chart.

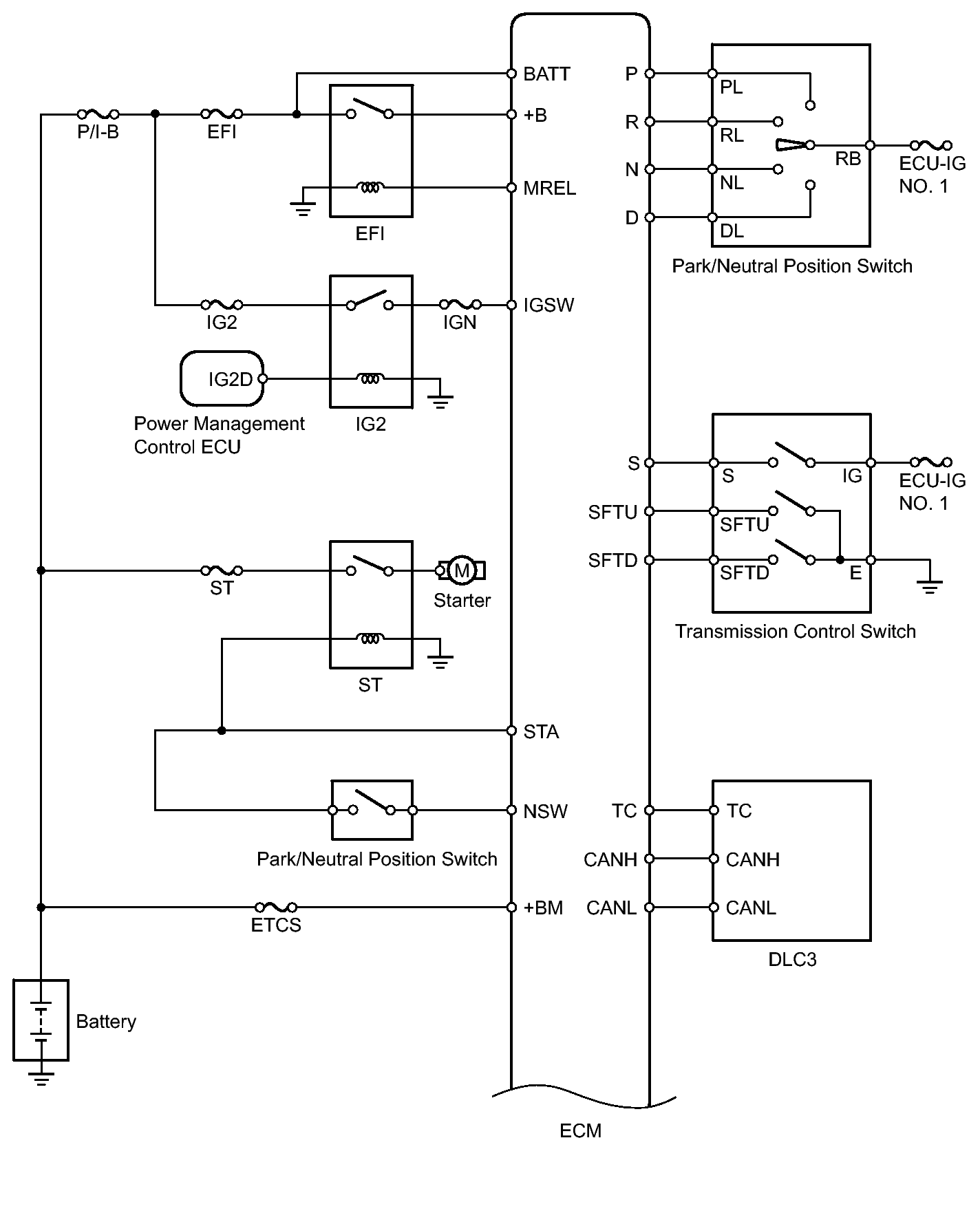

Fig 1: Identifying Automatic Transmission System Wiring Diagram (1 Of 2)
GTY280505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

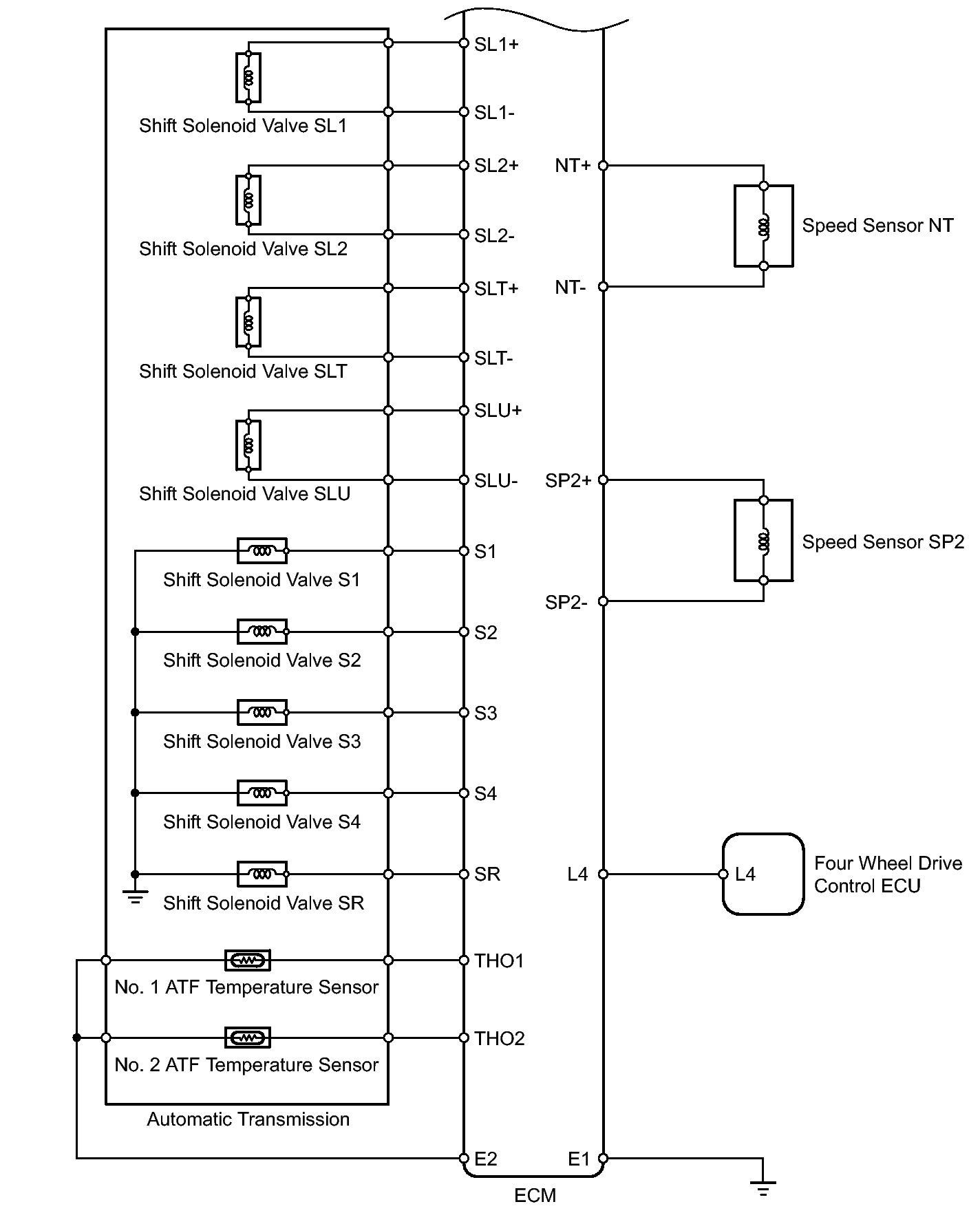

Fig 2: Identifying Automatic Transmission System Wiring Diagram (2 Of 2)
GTY282620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
