Automatic Transmission (Service Information)
›
Transmission Control Cable
›
Components
›
Illustration
Transmission Control Cable: Components: Illustration

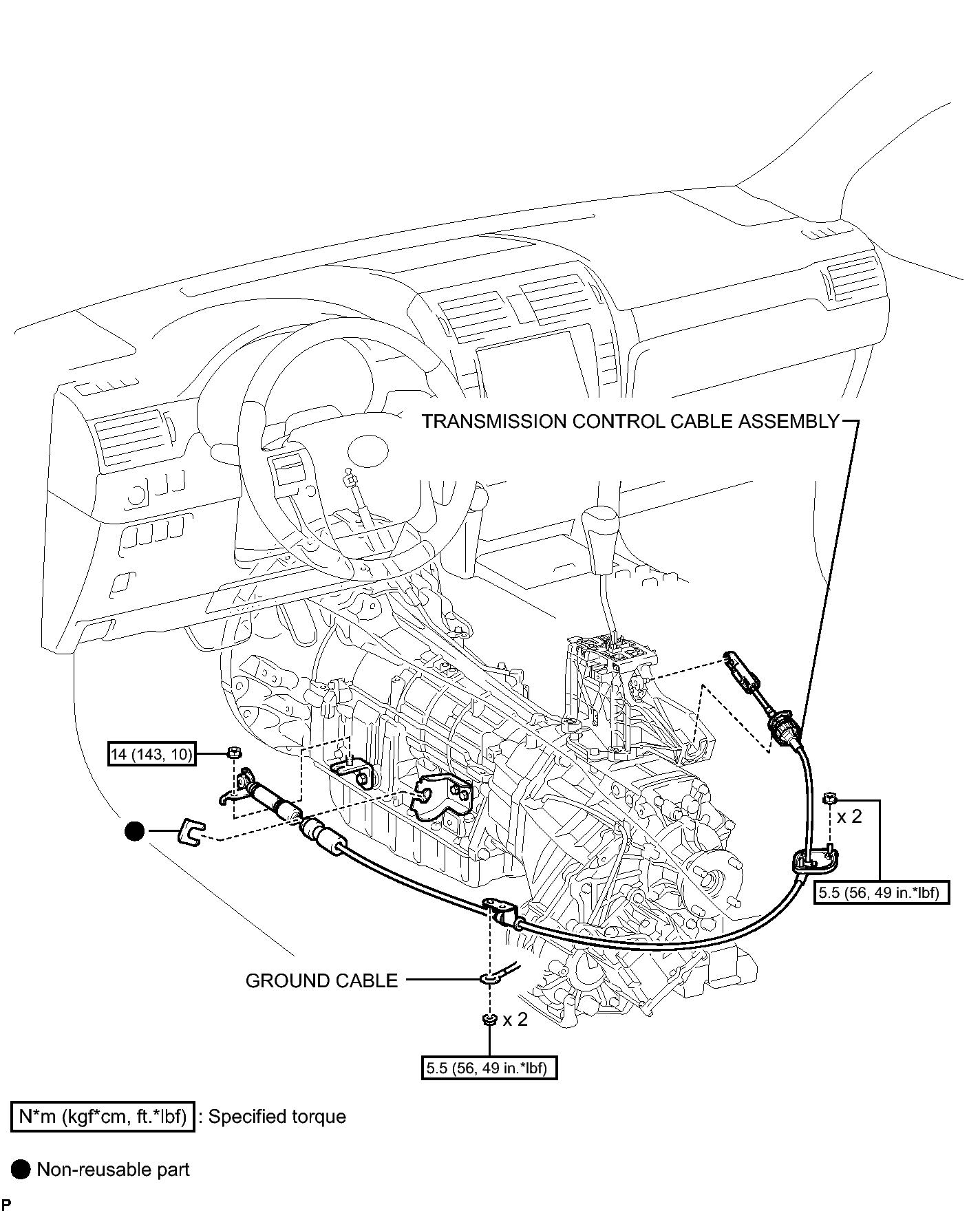

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
