Transfer Assembly: Inspection: Inspection

INSPECT TRANSFER INPUT SHAFT
1. Using a micrometer, measure the outer diameter of the input shaft journal surface.

  Fig 1: Measuring Outer Diameter Of Input Shaft Journal Surface
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Minimum diameter

  47.59 mm (1.88 in.)

  If the outer diameter is less than the minimum, replace the input shaft.
INSPECT PLANETARY PINION GEAR THRUST CLEARANCE
1. Using a feeler gauge, measure the thrust clearance of the planetary pinion gear.

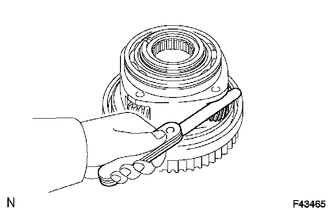

  Fig 2: Measuring Thrust Clearance Of Planetary Pinion Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.11 to 0.84 mm (0.00434 to 0.0330 in.)

  Maximum clearance

  0.84 mm (0.0330 in.)

  If the clearance is more than the maximum, replace the planetary gear.
INSPECT PLANETARY PINION GEAR RADIAL CLEARANCE
1. Using a dial indicator, measure the radial clearance of the planetary pinion gear.

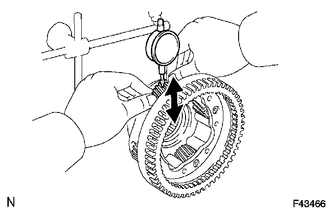

  Fig 3: Measuring Radial Clearance Of Planetary Pinion Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.009 to 0.038 mm (0.000355 to 0.00149 in.)

  Maximum clearance

  0.038 mm (0.00149 in.)

  If the clearance is more than the maximum, replace the planetary gear.
INSPECT TRANSFER OUTPUT SHAFT REAR
1. Using a micrometer, measure the outer diameter of the output shaft rear journal surfaces.

  Fig 4: Identifying Outer Diameter Of Output Shaft Rear Journal Surface
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard diameter

  Journal A

  27.98 to 27.99 mm (1.1016 to 1.1019 in.)

  Journal B

  31.98 to 32.00 mm (1.2591 to 1.2598 in.)

  Journal C

  34.98 to 35.00 mm (1.3772 to 1.3779 in.)

  Journal D

  36.98 to 37.00 mm (1.4560 to 1.4566 in.)

  Minimum diameter

  Journal A

  27.98 mm (1.1016 in.)

  Journal B

  31.98 mm (1.2591 in.)

  Journal C

  34.98 mm (1.3772 in.)

  Journal D

  36.98 mm (1.4560 in.)

  If the outer diameter is less than the minimum, replace the rear output shaft.
INSPECT TRANSFER HIGH AND LOW CLUTCH SLEEVE AND NO. 2 TRANSFER GEAR SHIFT FORK CLEARANCE
1. Using a vernier caliper, measure the thickness of the shift fork claw.

  Fig 5: Measuring Thickness Of Shift Fork Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard thickness (A)

  10 mm (0.394 in.)
2. Using a vernier caliper, measure the width of the groove of the high and low clutch sleeve.
  Standard width (B)

  10.5 mm (0.413 in.)
3. Calculate the clearance between the high and low clutch sleeve and shift fork.
  Standard clearance (B) - (A)

  0.26 to 0.84 mm (0.0103 to 0.0330 in.)

  Maximum clearance (B) - (A)

  0.84 mm (0.0330 in.)

  If the clearance is more than the maximum, replace the high and low clutch sleeve or shift fork.
INSPECT FRONT DRIVE CLUTCH SLEEVE AND CENTER DIFFERENTIAL LOCK FORK SUB-ASSEMBLY CLEARANCE
1. Using a vernier caliper, measure the thickness of the center differential lock fork claw.

  Fig 6: Measuring Thickness Of Center Differential Lock Fork Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard thickness (A)

  10 mm (0.394 in.)
2. Using a vernier caliper, measure the width of the groove of the front drive clutch sleeve.
  Standard width (B)

  10.5 mm (0.413 in.)
3. Calculate the clearance between the front drive clutch sleeve and differential lock fork.
  Standard clearance (B) - (A)

  0.26 to 0.84 mm (0.0103 to 0.0330 in.)

  Maximum clearance (B) - (A)

  0.84 mm (0.0330 in.)

  If the clearance is more than the maximum, replace the front drive clutch sleeve or differential lock fork.
INSPECT CENTER DIFFERENTIAL CASE AND TRANSFER HIGH AND LOW CLUTCH SLEEVE
1. Check that the splines of the clutch sleeve are not worn.

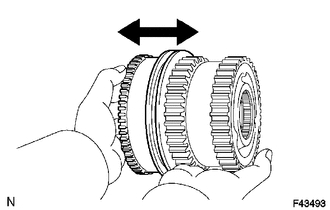

  Fig 7: Inspecting Center Differential Case And Transfer High And Low Clutch Sleeve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clutch sleeve to the center differential case and check that the clutch sleeve moves smoothly.
INSPECT CENTER DIFFERENTIAL CASE AND FRONT DRIVE CLUTCH SLEEVE
1. Check that the splines of the clutch sleeve are not worn.

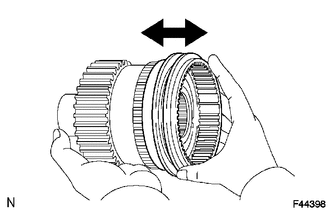

  Fig 8: Inspecting Center Differential Case And Front Drive Clutch Sleeve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clutch sleeve to the center differential case and check that the clutch sleeve moves smoothly.
