Back Window Glass
›
Components
›
Illustration
Back Window Glass: Components: Illustration

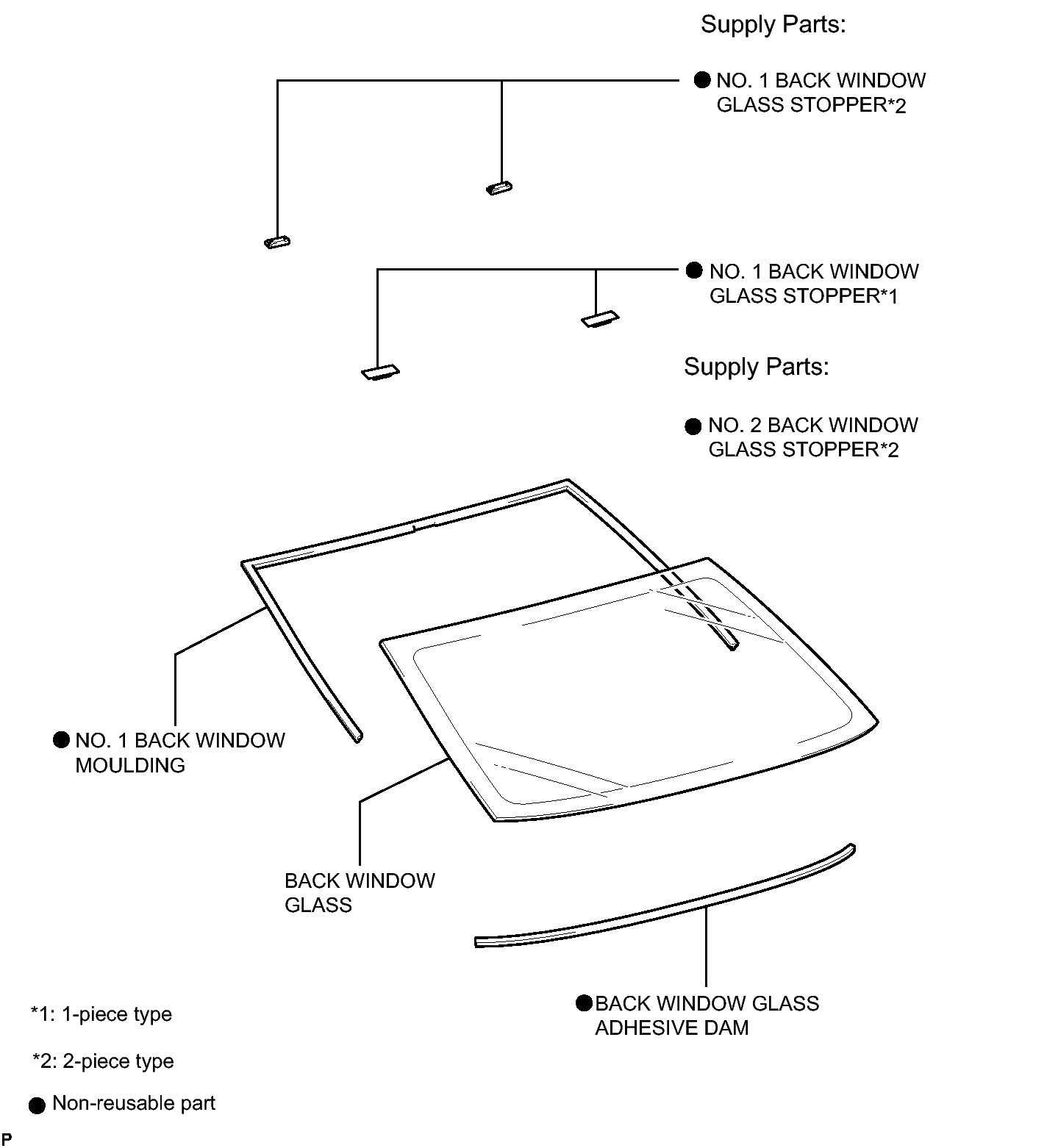

Fig 1: Identifying Back Window Glass Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
