Throttle Body: Components: Illustration

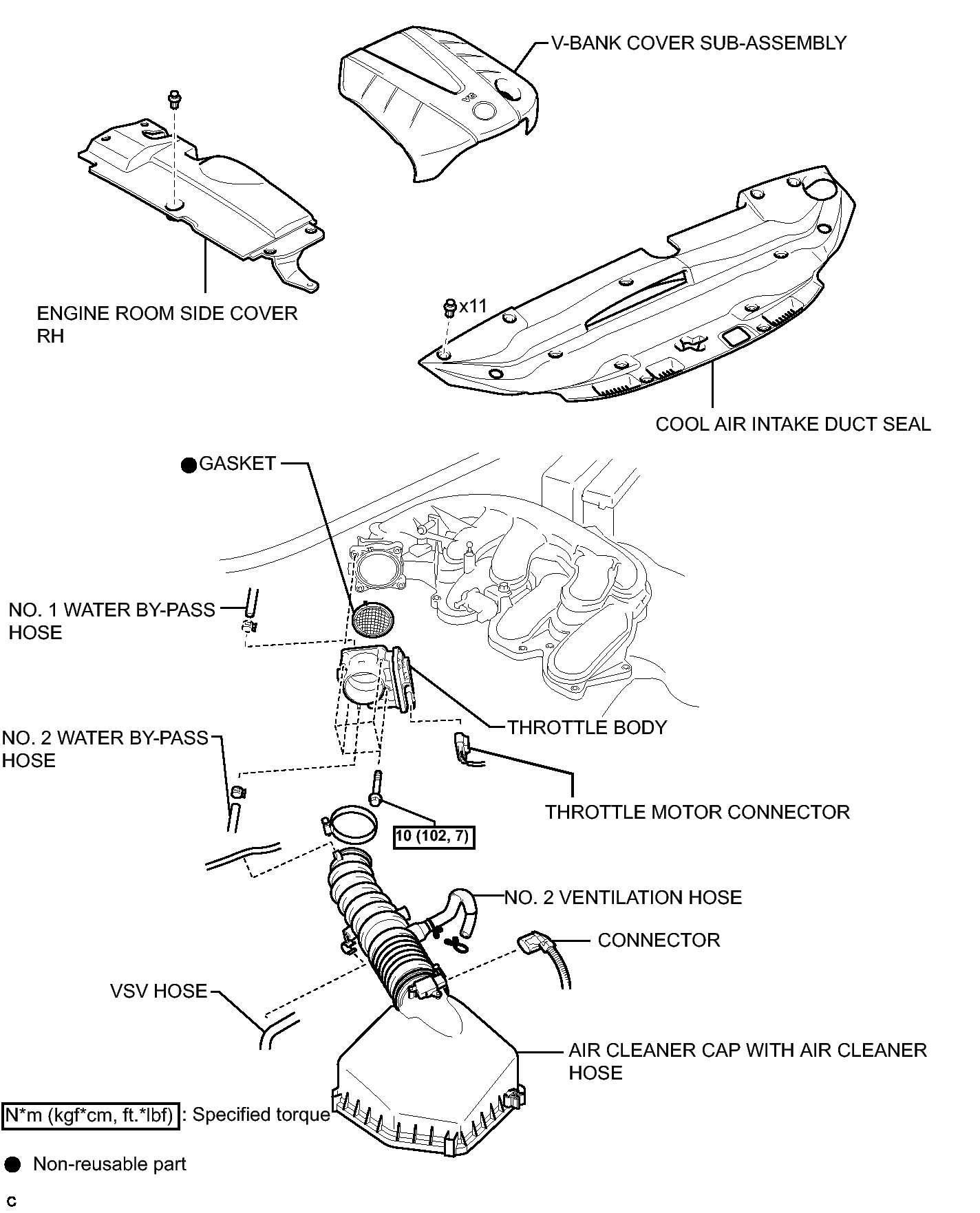

Fig 1: Throttle Body Replacement Components With Torque Specifications
GTY354720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
