Cruise Control System (Diagnostics - Introduction)
›
Cruise Control System
›
System Diagram
›
System Diagram
System Diagram

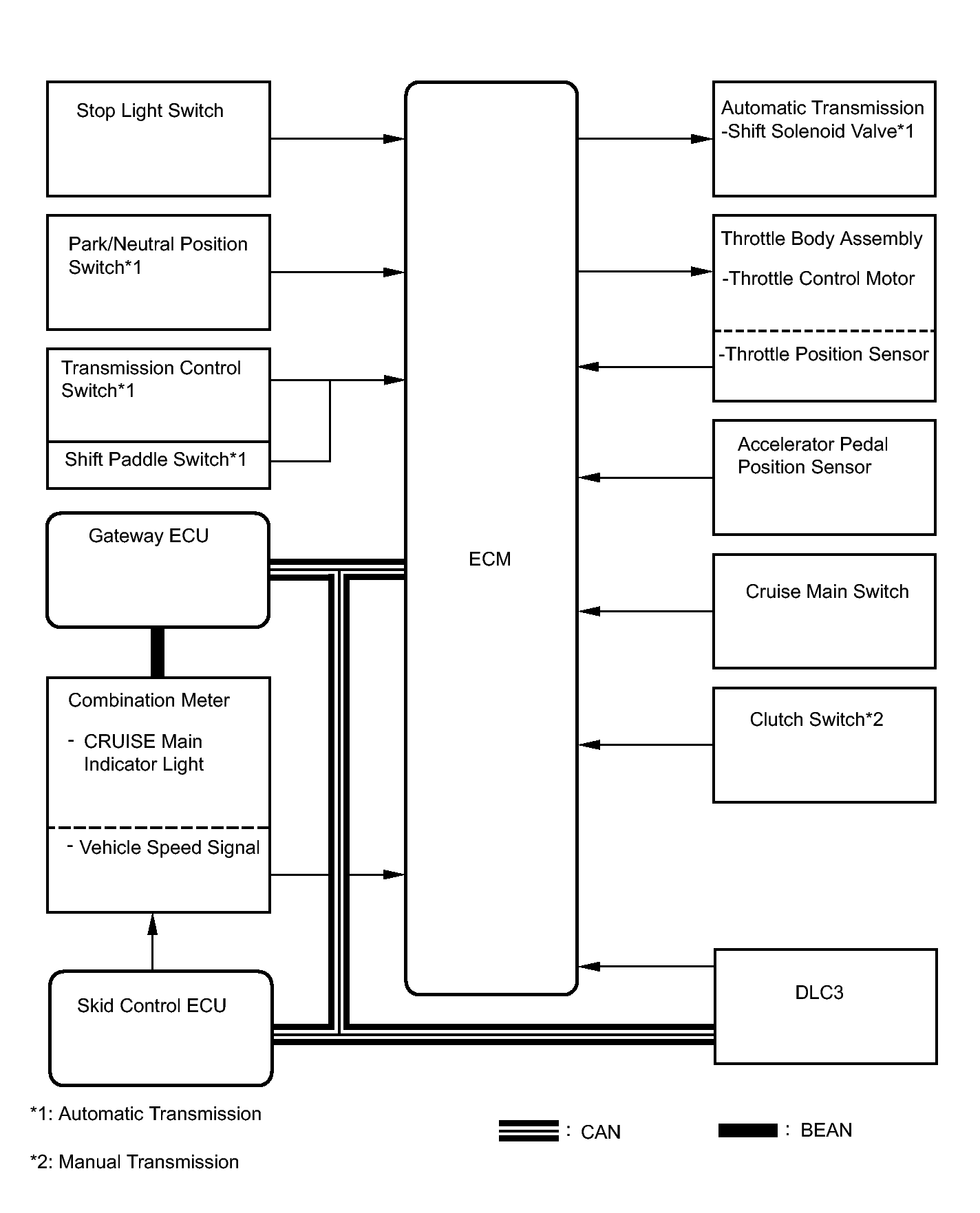

Fig 1: Identifying Cruise Control System Op[eration Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
ECM
Combination Meter ECU
CRUISE main indicator operation signal
BEAN - CAN
(Instrument Panel Bus)
