Skid Control Buzzer: Inspection: Inspection

INSPECT SKID CONTROL BUZZER ASSEMBLY
1. Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

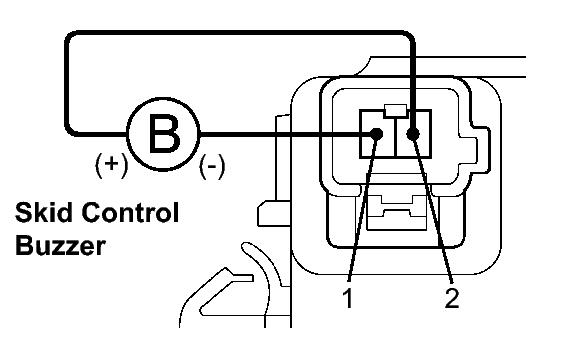

  Fig 1: Inspecting Skid Control Buzzer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK

  Skid control buzzer sounds.

  HINT:

  If the value is not as specified, replace the skid control buzzer.
