System Diagram

  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM

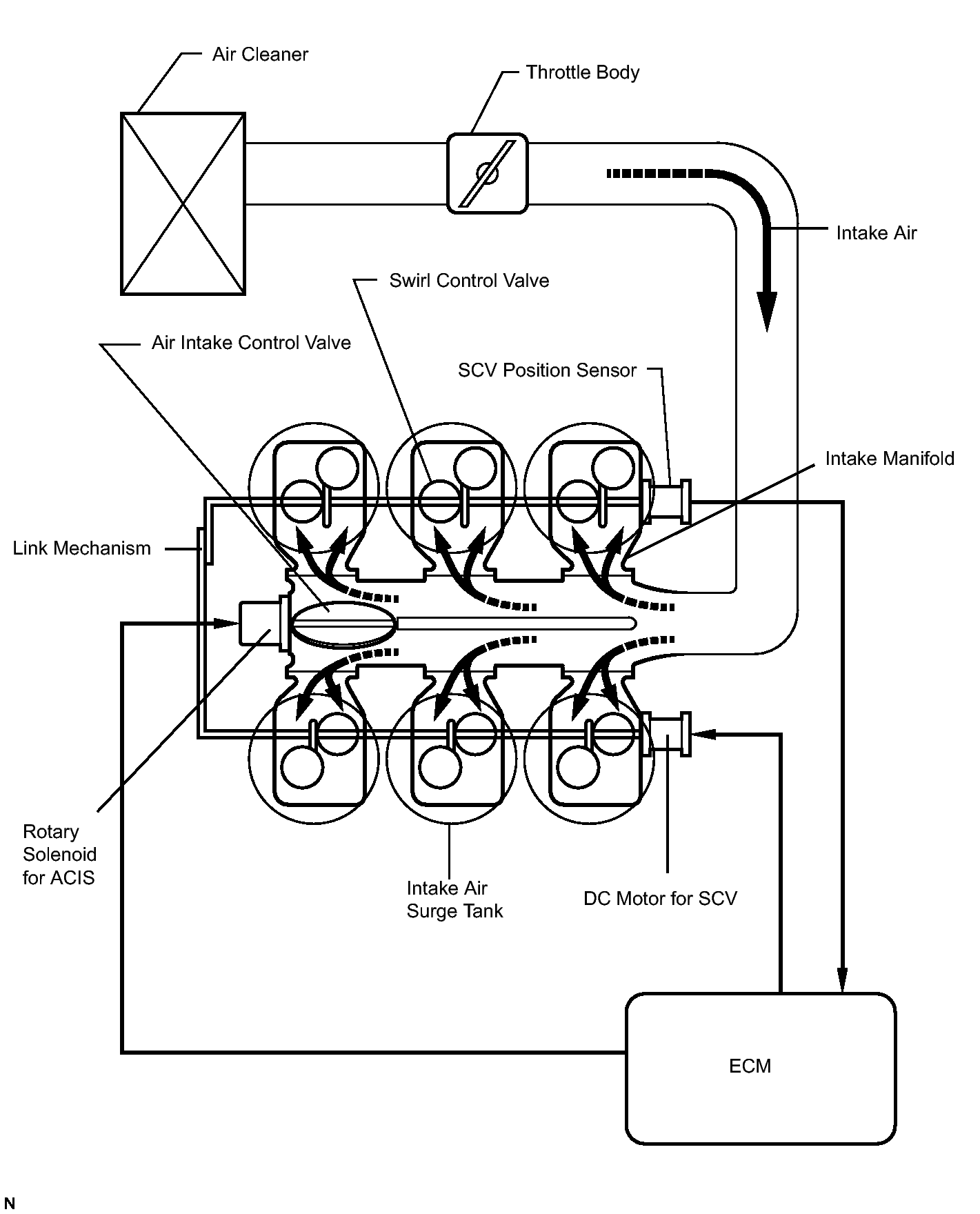

    Fig 1: Intake Control System Valve Diagram
    GTY145465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL WIRING DIAGRAM

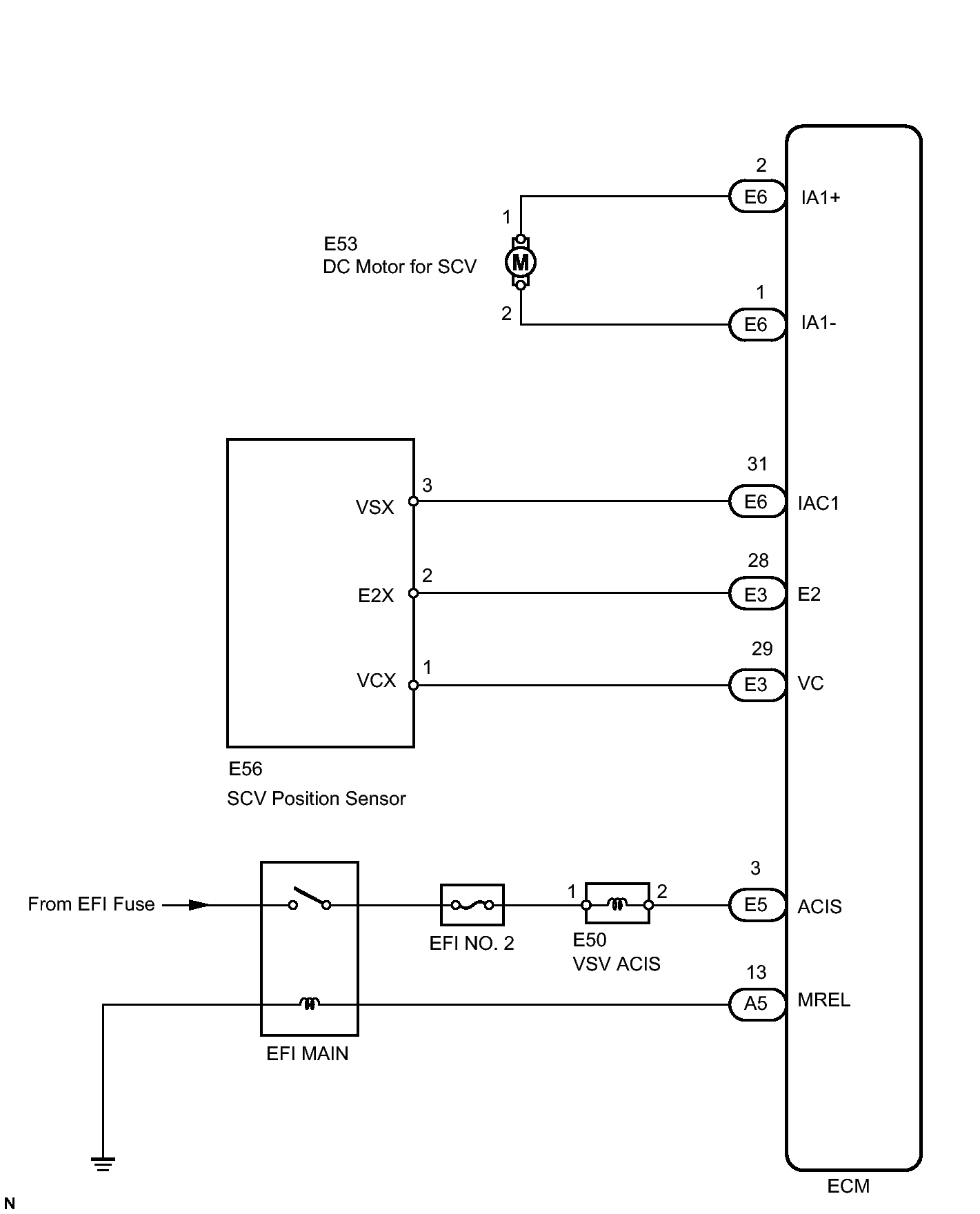

    Fig 2: Intake Control Electrical Wiring Diagram
    GTY280743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
