Parts Location: Illustration

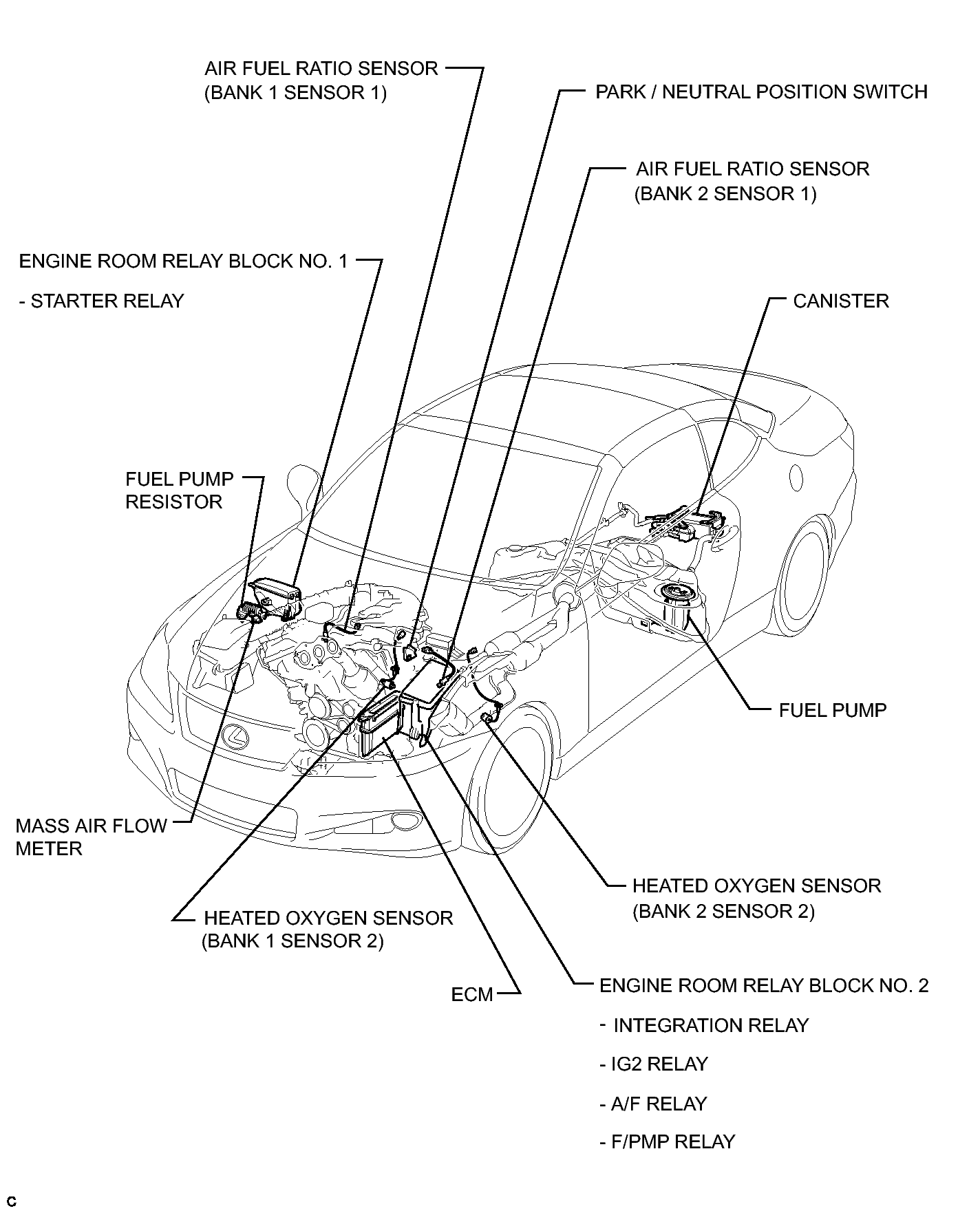

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY264975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

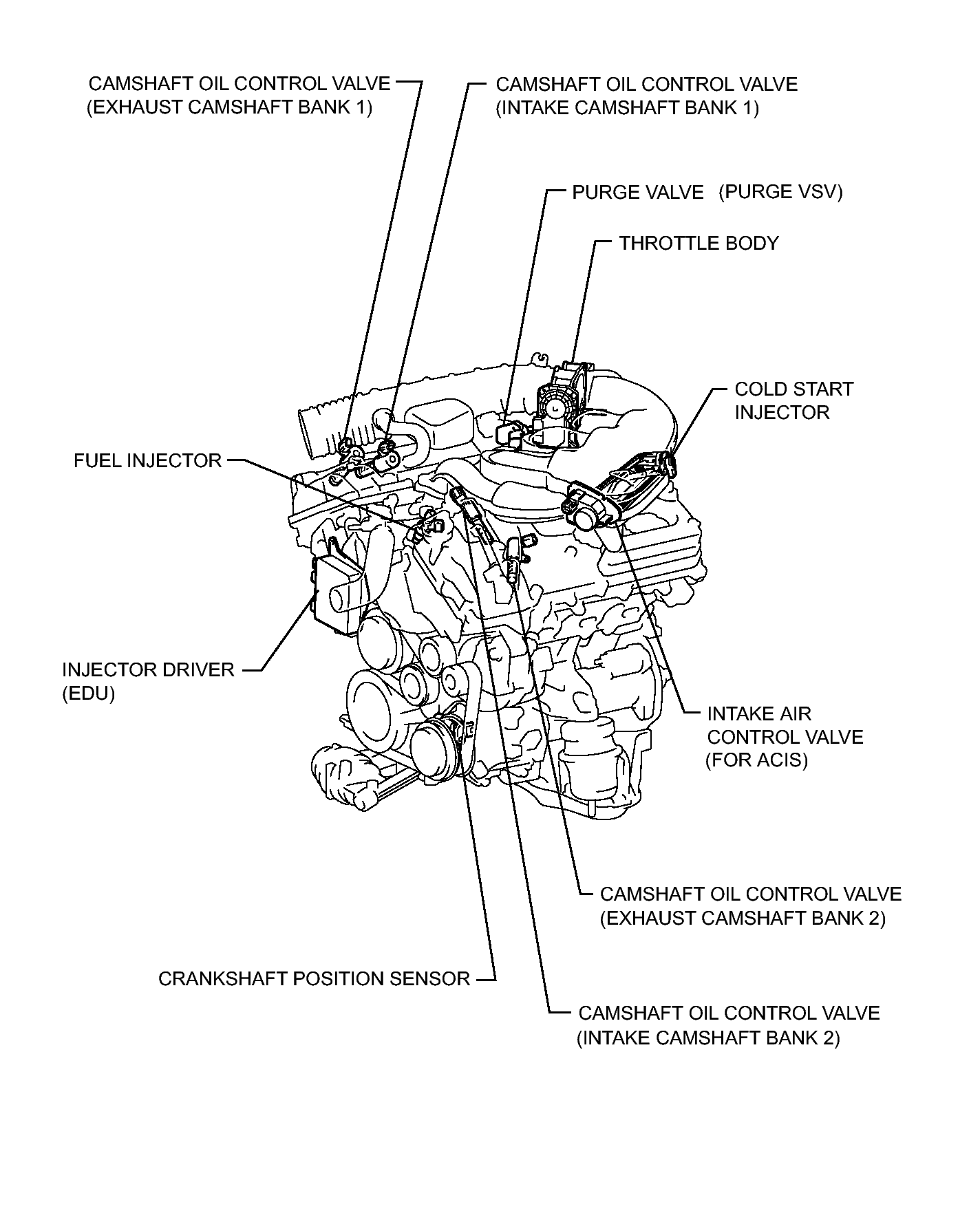

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY285417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

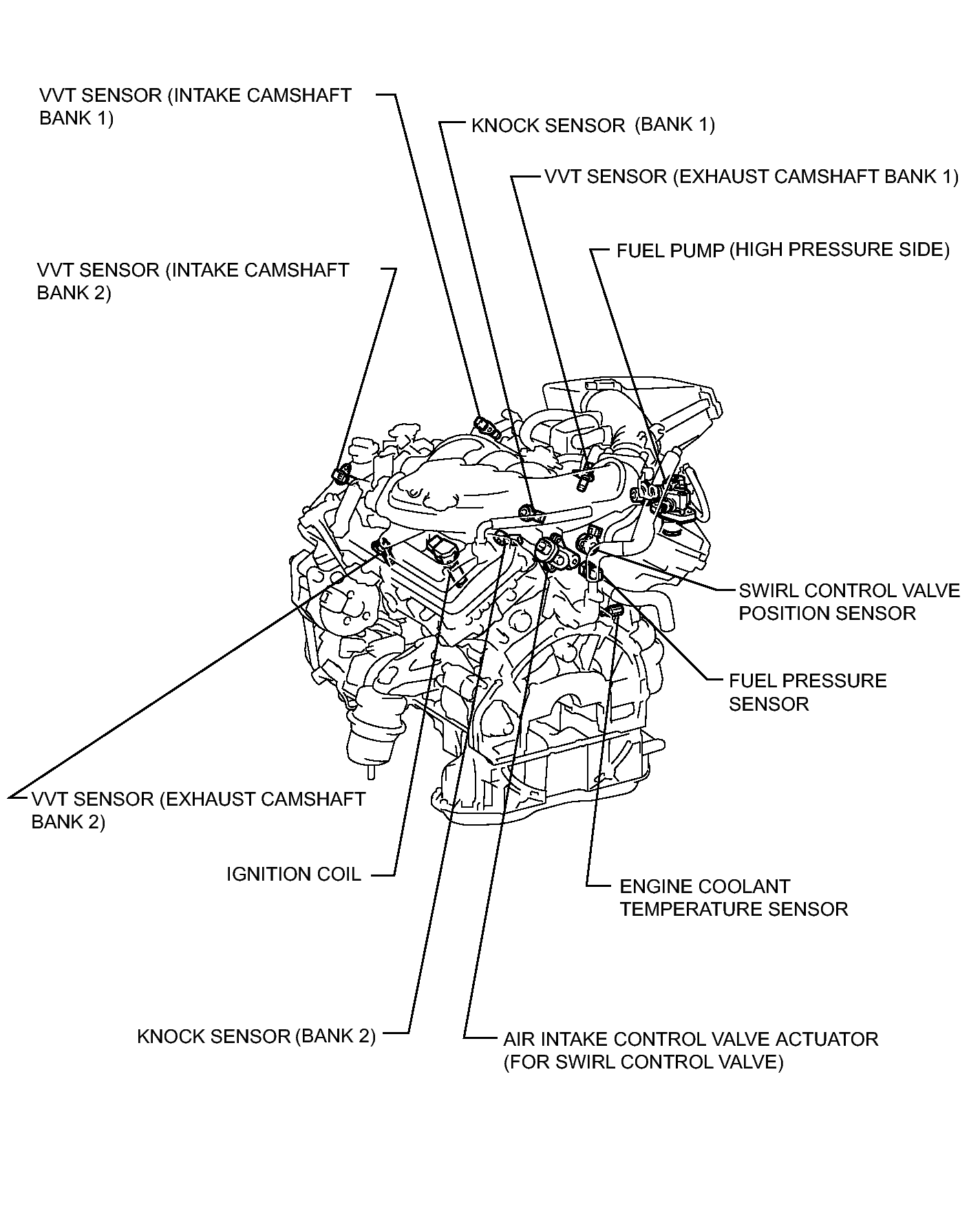

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY277376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

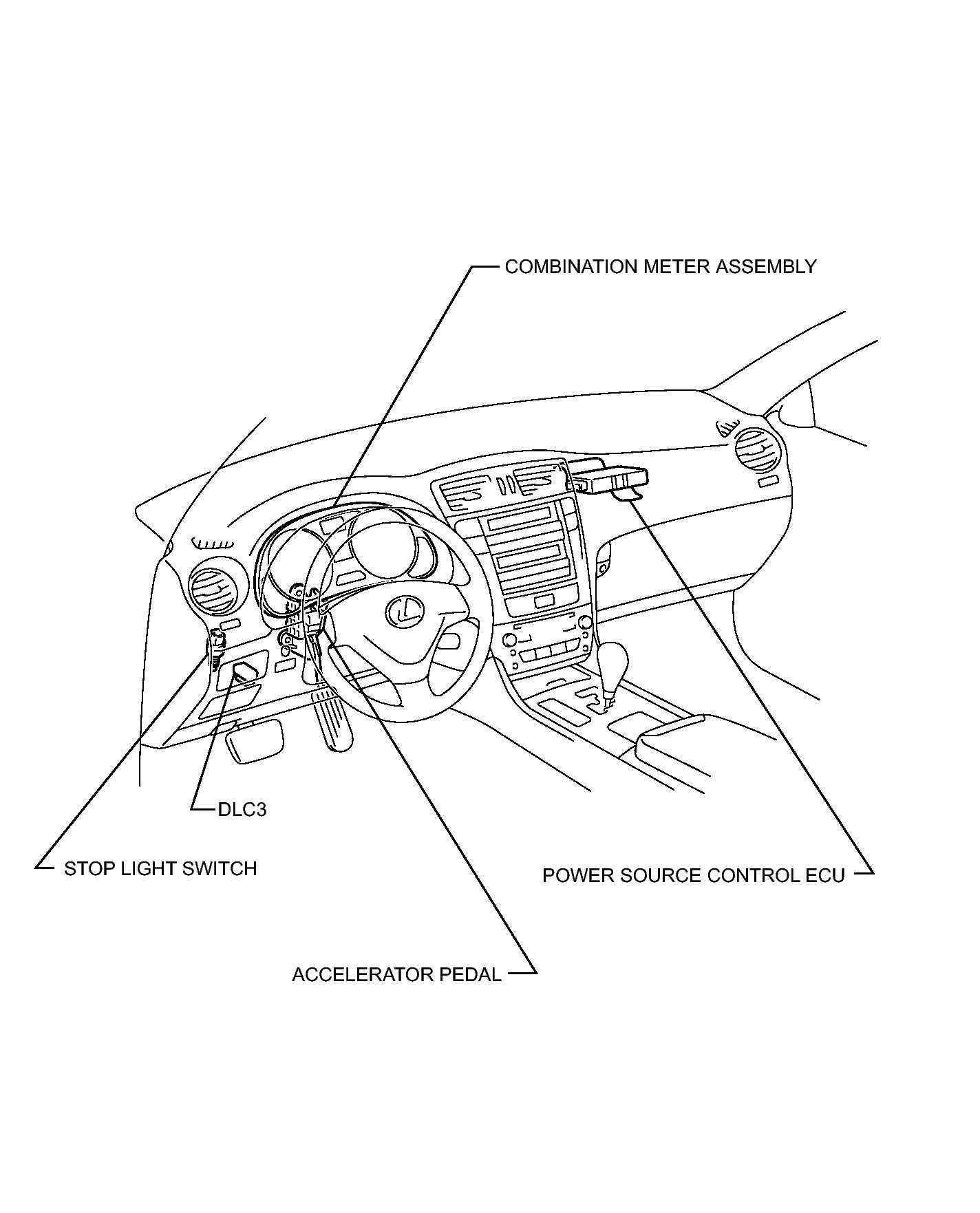

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY272596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
