Hard Disk Drive: Installation: Installation

WARNING: This page is about a different car, the 2011 Lexus IS 350 and 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HARD DISK DRIVE

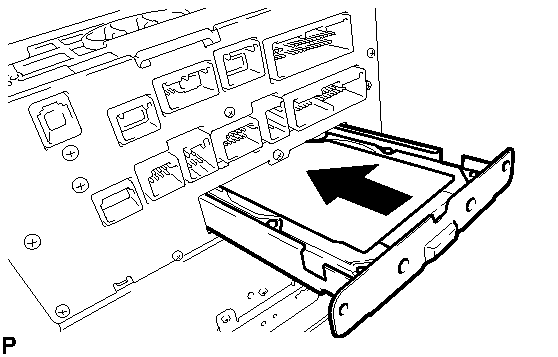

    1. Install the hard disc drive as shown in the illustration.
      Fig 1: Installing Hard Disc Drive
      GTY255716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.
  2. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY  . Refer to INSTALLATION - Step 8
  3. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 41
  4. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 42
  5. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray)  . Refer to INSTALLATION - Step 46
  6. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray)  . Refer to INSTALLATION - Step 47
  7. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 48
  8. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 49
  9. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  . Refer to INSTALLATION - Step 50
  10. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 51
  11. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 52
  12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  15. ADJUST CLOCK
  16. INSPECT HARD DISK DRIVE

    Refer to OPERATION CHECK
