Fuel Pump: Components: Illustration

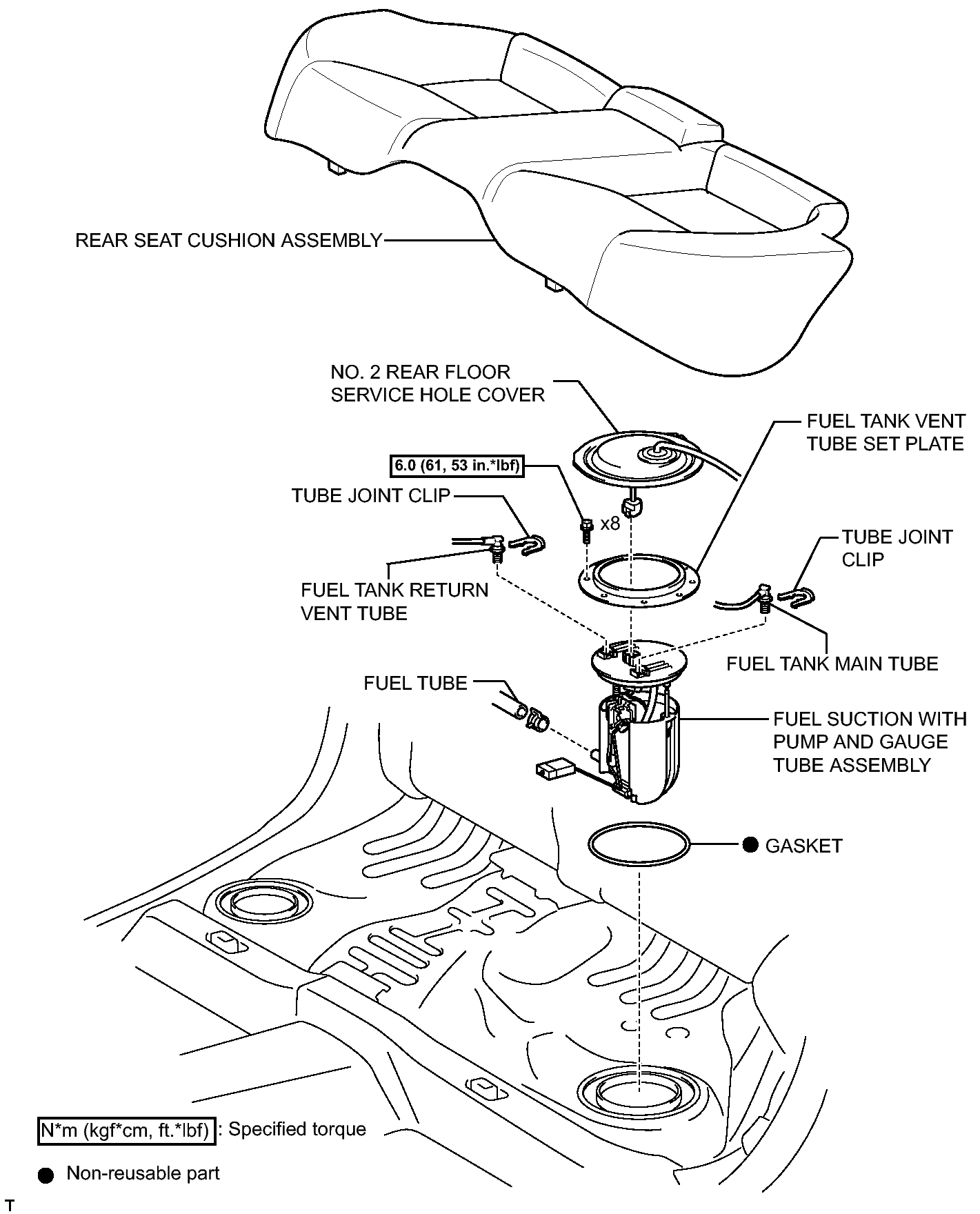

Fig 1: Exploded View Of Fuel Pump Components With Torque Specifications (1 Of 2)
GTY146401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

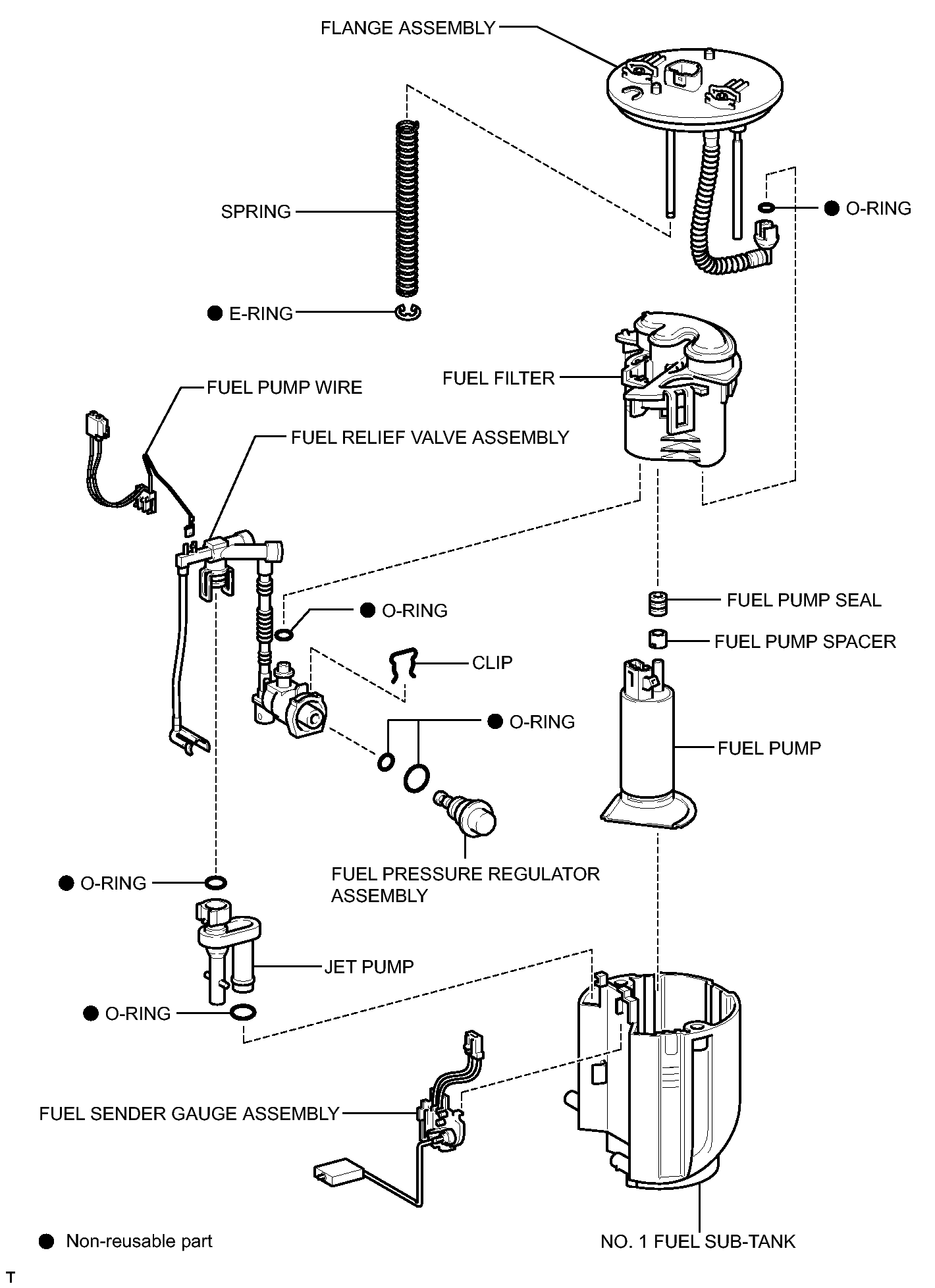

Fig 1: Identifying Fuel Pump Components (2 Of 2)
GTY145909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
