Automatic Glare-Resistant EC Mirror and Compass
›
Notes
Automatic Glare-Resistant EC Mirror and Compass: Notes

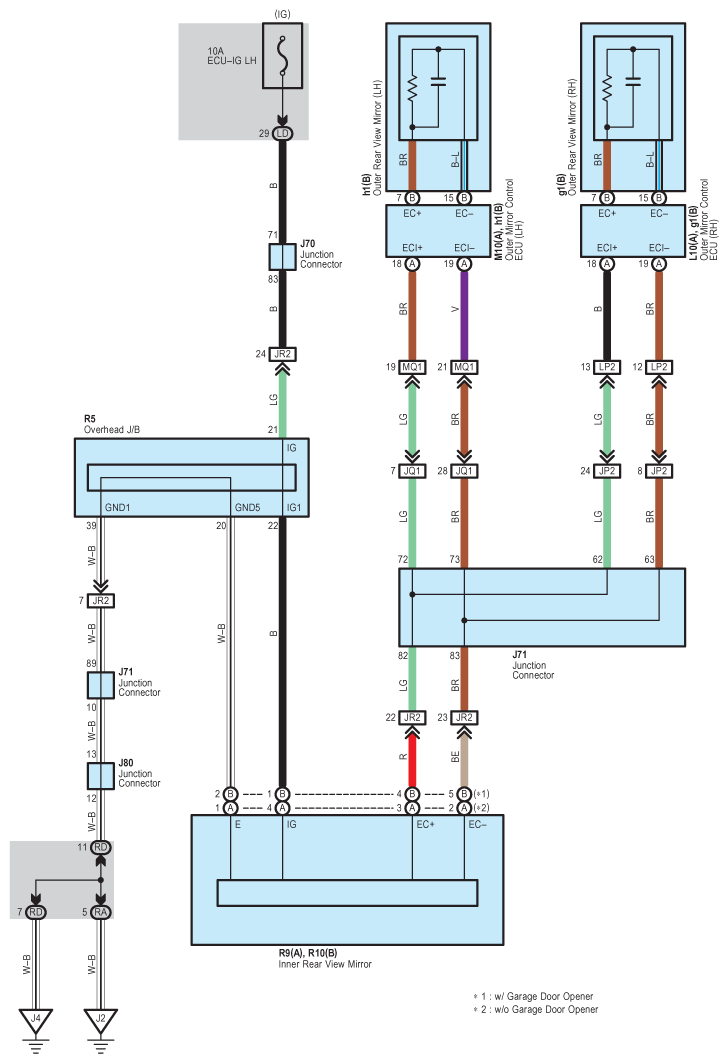

Fig 1: Automatic Glare-Resistant Ec Mirror And Compass - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
