Engine Assembly: Installation: Installation

  1. INSTALL FRONT ENGINE MOUNTING INSULATOR
    1. Install the 2 engine mounting insulators with the 2 nuts.

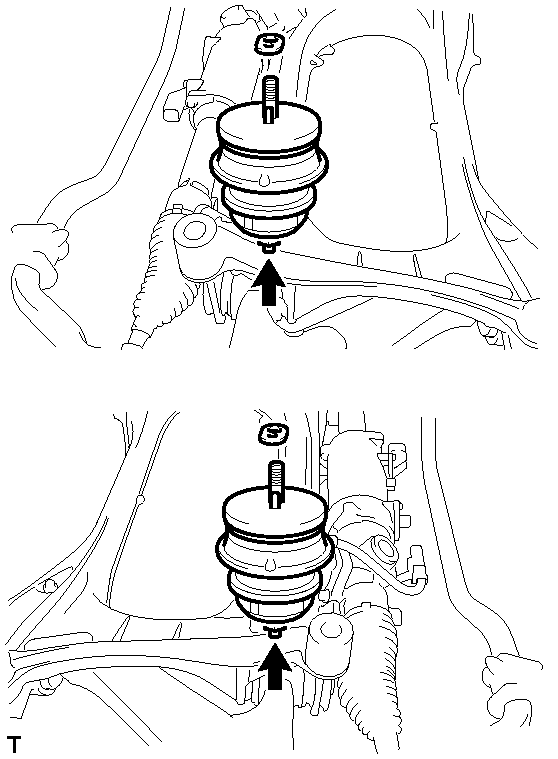

      Fig 1: Installing Front Engine Mounting Insulators
      GTY122209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

    2. Install the 2 engine mounting spacers.
  2. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
    1. Install the front suspension crossmember sub-assembly with the 2 nuts.
      Fig 2: Front Suspension Crossmember Nuts
      GTY100747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  3. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
    1. Using SST, hold the crankshaft.
      Fig 3: Holding Crankshaft Using SST
      GTY139220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-38010
      • SST: 09330-00021
    2. Clean the 10 bolt holes.
    3. Install the crankshaft angle sensor rotor.
      Fig 4: Aligning Pin Hole Of Crankshaft Angle Sensor Rotor With Pin Of Crankshaft
      GTY120919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Align the pin hole of the crankshaft angle sensor rotor with the pin of the crankshaft.

    4. Install the drive plate and ring gear sub-assembly and drive plate spacer RR on to the crankshaft.
      Fig 5: Identifying Drive Plate And Ring Gear
      GTY120918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Uniformly install and tighten 10 new bolts in the sequence shown in the illustration.
      Fig 6: Tightening Sequence Of Drive Plate Bolts
      GTY148963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N*m (301 kgf*cm, 22 ft.*lbf)

      NOTE:
      • Do not reuse the drive plate and ring gear sub-assembly installation bolts.
      • Do not impact or damage the drive plate and ring gear sub-assembly installation bolts. Be sure to handle them carefully.
    6. Mark the upside of each drive plate and ring gear sub-assembly installation bolt with paint.
      Fig 7: Retightening Drive Plate Installation Bolts By 90Degrees
      GTY105309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Retighten the drive plate and ring gear sub-assembly installation bolts 90° as shown in the illustration.
    8. Check that the painted marks are now at a 90° angle to the upside.
  4. INSTALL REAR ENGINE MOUNTING INSULATOR ASSEMBLY  . Refer to INSTALLATION - Step 9
  5. INSTALL REAR ENGINE MOUNTING MEMBER
    1. Install the rear engine mounting member to the automatic transmission assembly with the 4 nuts.
      Fig 8: Rear Engine Mounting Insulator Assembly Nuts
      GTY100752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  6. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY  . Refer to INSTALLATION - Step 5
  7. INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT  . Refer to INSTALLATION - Step 11
  8. INSTALL STARTER ASSEMBLY  . Refer to INSTALLATION - Step 1
  9. INSTALL GENERATOR ASSEMBLY  . Refer to INSTALLATION - Step 1
  10. INSTALL COMPRESSOR AND PULLEY
    1. Using an E8 "TORX" socket, install the compressor and pulley with the 2 stud bolts.
      Fig 9: Identifying Stud Bolts And Compressor
      GTY100322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Install the compressor and pulley with the 2 bolts and 2 nuts.
      Fig 10: Identifying Compressor Bolts And Nuts
      GTY153543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      HINT:

      Tighten the bolts and nuts in the order shown in the illustration to install the compressor.

  11. INSTALL OIL COOLER TUBE
    1. Install the oil cooler tube with the 2 bolts and nut.
      Fig 11: Oil Cooler Tube Bolts And Nut
      GTY125900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 14 N*m (140 kgf*cm, 10 ft.*lbf)

      Nut

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the wire harness clamp.
  12. CONNECT WIRE HARNESS AND CONNECTORS  . Refer to INSTALLATION - Step 6
  13. CONNECT BREATHER PLUG HOSE  . Refer to INSTALLATION - Step 7
  14. INSTALL V-RIBBED BELT  See step  1
  15. INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR  . Refer to INSTALLATION - Step 2
  16. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 1
  17. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR  . Refer to INSTALLATION - Step 3
  18. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH  . Refer to INSTALLATION - Step 5
  19. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR  . Refer to INSTALLATION - Step 7
  20. INSTALL ENGINE MOUNTING DAMPER
    1. Install the 2 engine mounting dampers with the 2 bolts.
      Fig 12: Identifying Engine Mounting Dampers Bolts
      GTY132140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  21. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY LH
    1. Install the engine under cover sub-assembly LH to the front suspension crossmember sub-assembly with the 2 clamps.
      Fig 13: Identifying Engine Under Cover Clamps
      GTY148964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY RH
    1. Install the engine under cover sub-assembly RH to the front suspension crossmember sub-assembly with the 2 clamps.
      Fig 14: Identifying Engine Under Cover Clamps
      GTY121328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE  . Refer to INSTALLATION - Step 8
  24. INSTALL ENGINE OIL LEVEL DIPSTICK
  25. INSTALL ENGINE AND TRANSMISSION
    1. Place the engine on an engine lifter.

      HINT:

      Place the engine on wooden blocks or equivalent so that the engine is level.

    2. Remove the 2 bolts and 2 engine hangers.
    3. Operate the engine lifter to install the engine into the vehicle.
      NOTE:

      Make sure that the engine is clear of all wiring and hoses.

    4. Install the 10 bolts and 2 nuts.

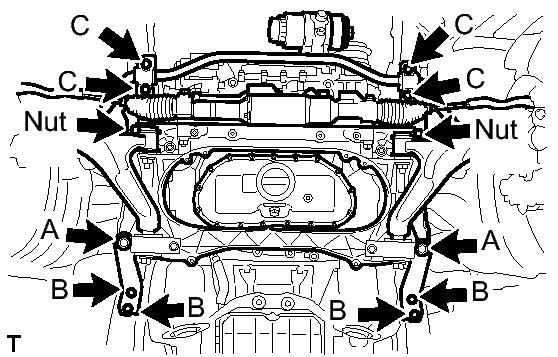

      Fig 15: Installing 10 bolts and 2 nuts
      GTY130087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt A

      Torque: 188 N*m (1917 kgf*cm, 138 ft.*lbf)

      Bolt B

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      Bolt C

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

      Nut

      Torque: 154 N*m (1570 kgf*cm, 113 ft.*lbf)

    5. Install the engine rear mounting member to the body with the 4 bolts.
      Fig 16: Identifying Mounting Member Bolts
      GTY101276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)

  26. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 3
  27. INSTALL STEERING COLUMN ASSEMBLY

    Refer to INSTALLATION

  28. CONNECT STEERING SLIDING YOKE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 4
  29. CONNECT HEIGHT CONTROL SENSOR LINK SUB-ASSEMBLY  . Refer to INSTALLATION - Step 9
  30. CONNECT STEERING KNUCKLE LH  . Refer to INSTALLATION - Step 4
  31. CONNECT STEERING KNUCKLE RH

    HINT:

    Perform the same procedure for the LH side.

  32. TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH  . Refer to INSTALLATION - Step 4
  33. TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Perform the same procedure for the LH side.

  34. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY  . Refer to INSTALLATION - Step 1
  35. FULLY TIGHTEN NO. 1 CENTER SUPPORT BEARING ASSEMBLY  . Refer to INSTALLATION - Step 2
  36. INSPECT AND ADJUST BOTH NO. 2 AND NO. 3 JOINT ANGLE  . Refer to INSTALLATION - Step 3
  37. INSTALL OUTSIDE AIR GUIDE PLATE RH  . Refer to INSTALLATION - Step 4
  38. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR  . Refer to INSTALLATION - Step 5
  39. INSTALL FRONT EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 1
  40. CONNECT HEATED OXYGEN SENSOR  . Refer to INSTALLATION - Step 2
  41. INSTALL FRONT CENTER FLOOR BRACE  . Refer to INSTALLATION - Step 3
  42. INSTALL REAR NO. 1 FLOOR PANEL BRACE  . Refer to INSTALLATION - Step 4
  43. INSTALL TAIL EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 8
  44. INSTALL NO. 2 FLOOR UNDER COVER  . Refer to INSTALLATION - Step 11
  45. INSTALL NO. 1 FLOOR UNDER COVER  . Refer to INSTALLATION - Step 12
  46. CONNECT WIRE HARNESS
    1. Install the ground cable with the nut.
      Fig 17: Identifying Ground Cable Bolt
      GTY148961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the power steering wire harness.

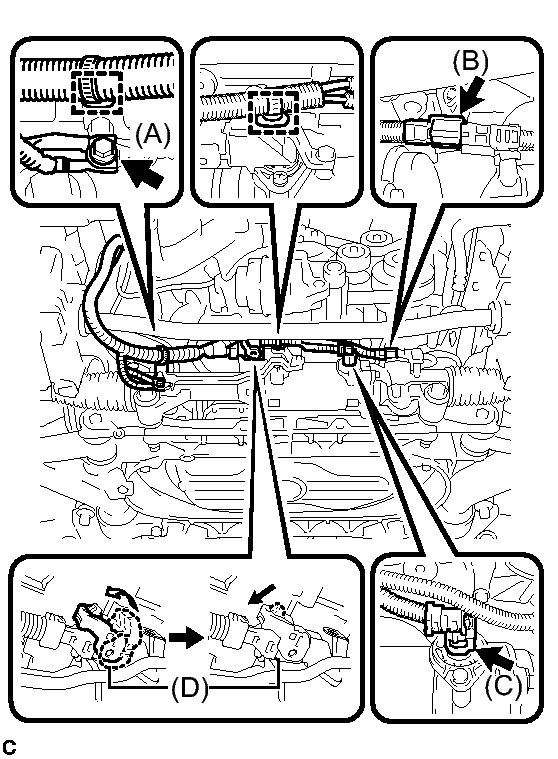

      Fig 18: Connecting Power Steering Wire Harness
      GTY108940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect wire harness connector (D) to the power steering link assembly and securely lock the connector.
      2. Connect 2 wire harness connectors (B) and (C) to the power steering link assembly.
      3. Install the 2 wire harness clamps to the power steering link assembly.
      4. Connect the earth wire to the bracket with bolt (A).

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    3. Connect the ground cable with the bolt and clamp.
      Fig 19: Identifying Ground Cable With Bolt And Clamp
      GTY133845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    4. Connect the ground cable with the bolt.
      Fig 20: Identifying Ground Cable Bolt
      GTY148960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the wire to the engine room No. 1 junction block.
      Fig 21: Connecting Wire To Engine Room No 1 Junction Block
      GTY105549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the clamp.
    7. Install the nut and connect the wire harness.
      Fig 22: Identifying Wire Harness Nut
      GTY101949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    8. Install the No. 1 engine room relay block cover.
    9. Connect the positive (+) battery cable with the nut and clamp.
      Fig 23: Identifying Battery Positive Cable Nut
      GTY149039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

    10. Connect the 5 connectors and grommet to the ECM box.
      Fig 24: Connectors And Grommet
      GTY148948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the No. 4 connector holder.
      Fig 25: Connecting No. 4 Connector Holder
      GTY105691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Connect the 3 connectors and connector clamp.
      Fig 26: Identifying Connector And Clamps
      GTY101834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL ENGINE ROOM ECU COVER  . Refer to INSTALLATION - Step 2
  48. INSTALL WIRE HARNESS CLAMP BRACKET  . Refer to INSTALLATION - Step 3
  49. INSTALL BATTERY TRAY  . Refer to INSTALLATION - Step 4
  50. INSTALL POWER STEERING ECU ASSEMBLY  . Refer to INSTALLATION - Step 1
  51. INSTALL NO. 1 BATTERY TRAY SUPPORT
  52. INSTALL BATTERY  . Refer to INSTALLATION - Step 7
  53. INSTALL DISCHARGE HOSE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 3
  54. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE  . Refer to INSTALLATION - Step 4
  55. CONNECT NO. 1 FUEL HOSE
    1. Push in the fuel tube connector to the No. 1 fuel hose until the fuel tube connector makes a "click" sound.

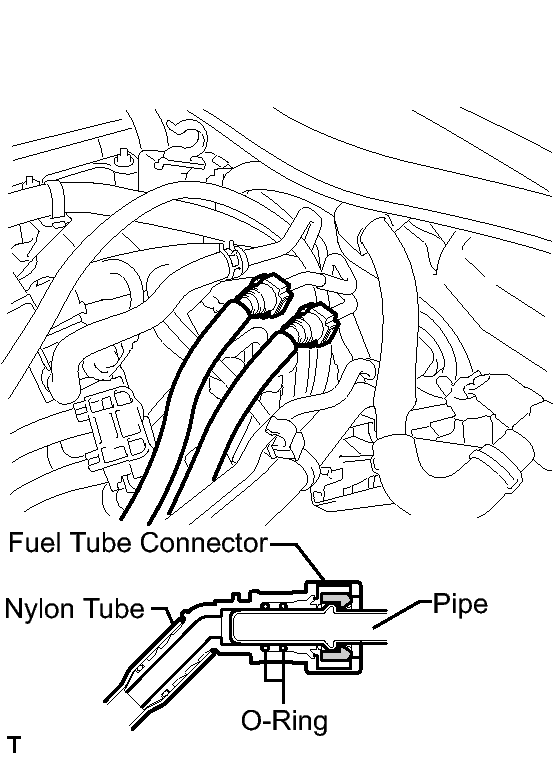

      Fig 27: Identifying Fuel Tube Connector
      GTY103836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that there is no damage or foreign objects on the fuel pipe connectors.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
    2. Push in the fuel tube connector to the No. 1 fuel hose until the fuel tube connector makes a "click" sound.

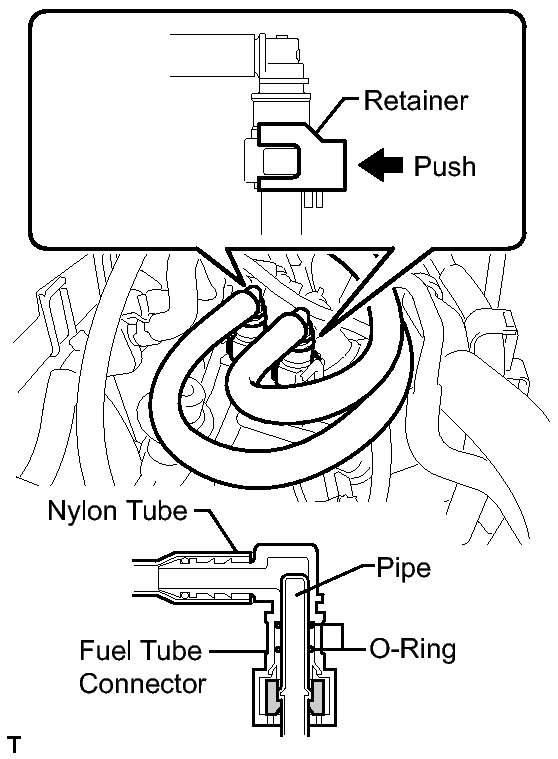

      Fig 28: Pushing Fuel Tube Connector To No. 1 Fuel Pipe Sub-Assembly
      GTY105672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Push down on the retainer to lock it in place.
      NOTE:
      • Check that there is no damage or foreign objects on the fuel pipe connectors.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
    4. Install the 2 fuel pipe clamps.
      Fig 29: Identifying Fuel Pipe Clamps
      GTY102508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. CONNECT NO. 3 FUEL HOSE
    1. Push in the fuel tube connector to the No. 3 fuel hose until the fuel tube connector makes a "click" sound.

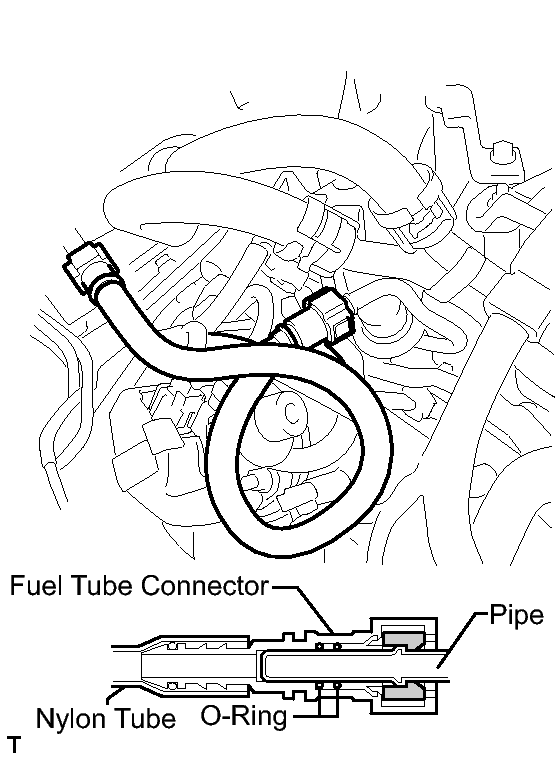

      Fig 30: Identifying Fuel Tube Connector
      GTY120886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that there is no damage or foreign objects on the fuel pipe connectors.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
    2. Install the 2 fuel pipe clamps.
      Fig 31: Identifying Fuel Pipe Clamp
      GTY101351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. INSTALL NO. 2 FUEL VAPOR FEED HOSE
    1. Connect the No. 2 fuel vapor feed hose.
      Fig 32: Identifying Fuel Vapor Feed Hose
      GTY133971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. CONNECT VACUUM HOSE ASSEMBLY
    1. Connect the vacuum hose assembly to the intake air surge tank assembly with the clamp.

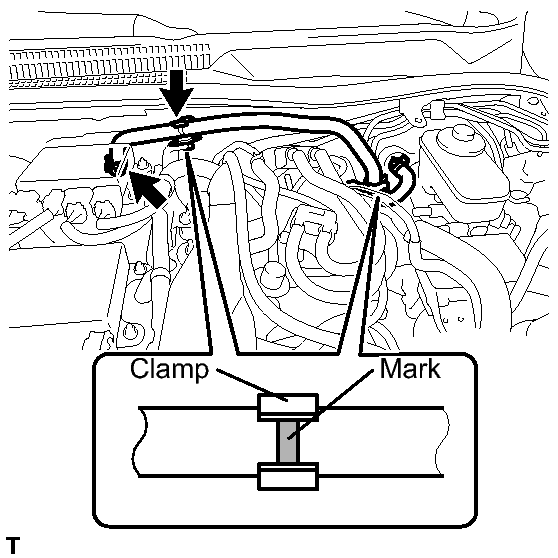

      Fig 33: Aligning Vacuum Hose Matchmarks And Hose Clamps
      GTY149035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the vacuum hose assembly to the hose clamp.
      NOTE:

      Align the vacuum hose matchmarks and the hose clamps as shown in the illustration.

  59. INSTALL HEATER WATER OUTLET HOSE A
    1. Connect the heater water outlet hose A.
      Fig 34: Identifying Heater Inlet Water Hose And Outlet Water Hose
      GTY148957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. INSTALL HEATER WATER HOSE INLET A
    1. Connect the heater water inlet hose A.
  61. CONNECT NO. 2 OIL COOLER OUTLET HOSE
    1. Connect the No. 2 oil cooler outlet hose with the clip.
      Fig 35: Identifying Oil Cooler Inlet Hose And Outlet Hose
      GTY148958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. CONNECT NO. 2 OIL COOLER INLET HOSE
    1. Connect the No. 2 oil cooler inlet hose with the clip.
  63. CONNECT NO. 2 RADIATOR HOSE
    1. Connect the No. 2 radiator hose with the clamp.
      Fig 36: Identifying No 2 Radiator Hose
      GTY128368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. CONNECT NO. 1 RADIATOR HOSE
    1. Connect the No. 1 radiator hose with the clamp.
      Fig 37: Identifying No 1 Radiator Hose
      GTY128212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. CONNECT RESERVE TANK OUTLET HOSE
    1. Connect the reserve tank outlet hose with the clamp.
      Fig 38: Identifying Reserve Tank Outlet Hose
      GTY148959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
    1. Install the air cleaner case sub-assembly with the 2 bolts.
      Fig 39: Identifying Air Cleaner Case Bolts
      GTY148956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Connect the vacuum switching valve connector and clamp.
    3. Connect the vacuum hose and 2 clamps.

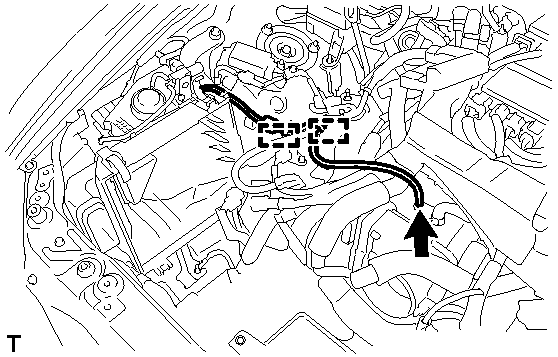

      Fig 40: Identifying Vacuum Hose Clamps
      GTY129161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  68. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  . Refer to INSTALLATION - Step 18
  69. ADD ENGINE OIL  . Refer to REPLACEMENT - Step 5
  70. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 4
  71. ADD AUTOMATIC TRANSMISSION FLUID

    Refer to ADJUSTMENT

  72. CHARGE REFRIGERANT  . Refer to REPLACEMENT - Step 2
  73. INSPECT FOR OIL LEAK
  74. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  75. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  76. INSPECT FOR EXHAUST GAS LEAK
  77. INSTALL FRONT WHEEL
  78. STABILIZE SUSPENSION  . Refer to INSTALLATION - Step 9
  79. FULLY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH  . Refer to INSTALLATION - Step 10
  80. FULLY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Perform the same procedure for the LH side.

  81. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  82. CHECK AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT

  83. ADJUST SHIFT LEVER POSITION  . Refer to ADJUSTMENT - Step 1
  84. INSPECT SHIFT LEVER POSITION  . Refer to ON-VEHICLE INSPECTION - Step 1
  85. INSTALL ENGINE UNDER COVER AIR GUIDE BRACKET
    1. Install the engine under cover air guide bracket with the 2 bolts.
      Fig 41: Identifying Engine Under Cover Air Guide Bracket Bolts
      GTY148962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  86. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR  . Refer to INSTALLATION - Step 5
  87. INSTALL NO. 2 ENGINE UNDER COVER
  88. INSTALL REAR ENGINE UNDER COVER RH
  89. INSTALL REAR ENGINE UNDER COVER LH
  90. INSTALL ENGINE UNDER COVER
  91. INSTALL NO. 1 AIR CLEANER INLET
    1. Install the No. 1 air cleaner inlet with the bolt and clip.
      Fig 42: Identifying Air Cleaner Inlet Bolt
      GTY148955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  92. INSTALL ENGINE ROOM SIDE COVER RH
    1. Install the engine room side cover RH with the 3 clips.
      Fig 43: Identifying Engine Room Side Cover RH Clips
      GTY149031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  93. INSTALL ENGINE ROOM SIDE COVER LH
    1. Install the engine room side cover LH with the 5 clips.
      Fig 44: Identifying Engine Room Side Cover LH Clips
      GTY149033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  94. INSTALL COOL AIR INTAKE DUCT SEAL
    1. Install the cool air intake duct seal with the 9 clips.
      Fig 45: Identifying Cool Air Intake Duct Seal Clips
      GTY141553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  95. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Engage the 4 clips to install the V-bank cover sub-assembly.
      Fig 46: Identifying V-Bank Cover Clips
      GTY149032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be sure to engage the clips securely.
      • Do not apply excessive force or hit the cover to engage the clips. This may cause the cover to break.
  96. INSPECT IGNITION TIMING  See step  7
  97. INSPECT ENGINE IDLE SPEED  See step  8
  98. INSPECT CO/HC  See step  10
  99. CHECK AUTOMATIC TRANSMISSION SYSTEM PRECAUTION

    Refer to INITIALIZATION

  100. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT  . Refer to ADJUSTMENT - Step 1
  101. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine)  . Refer to ADJUSTMENT - Step 2
  102. PREPARATION FOR HEADLIGHT AIMING (Using a screen)  . Refer to ADJUSTMENT - Step 3
  103. INSPECT HEADLIGHT AIMING  . Refer to ADJUSTMENT - Step 4
  104. ADJUST HEADLIGHT AIMING  . Refer to ADJUSTMENT - Step 5
About FixVault
