Cruise Control System (Service Information)
›
Cruise Control Main Switch
›
Components
›
Illustration
Cruise Control Main Switch: Components: Illustration

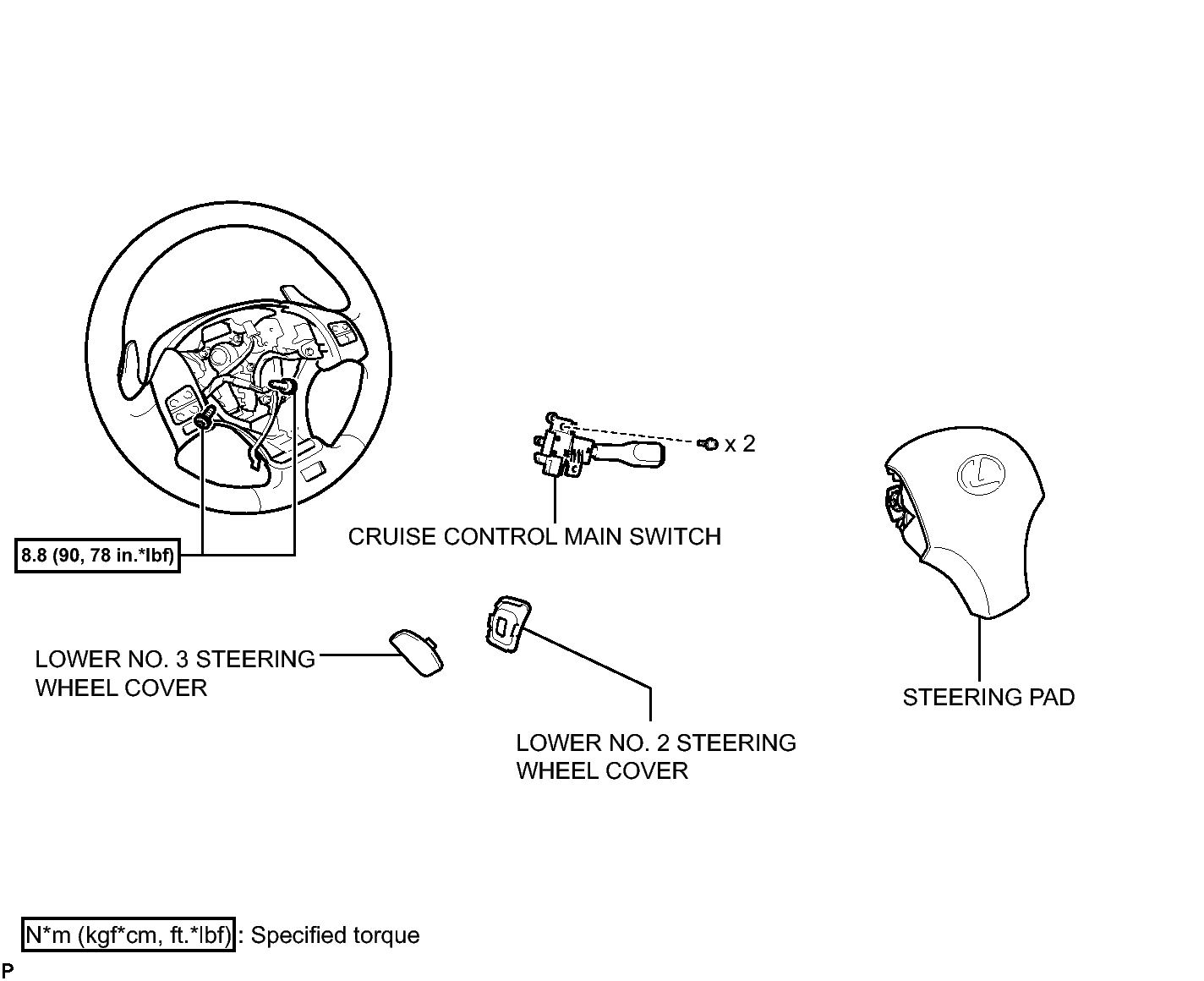

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
