Mirror Heater and Rear Window Defogger: Notes

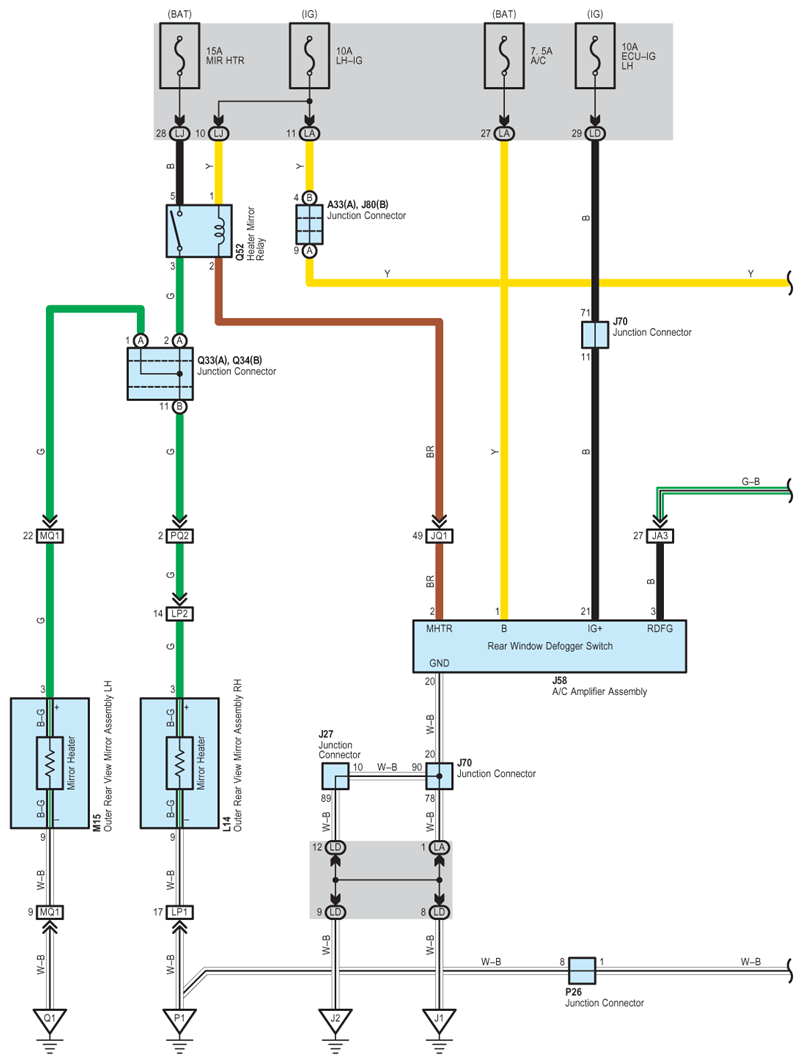

Fig 1: Mirror Heater And Rear Window Defogger - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

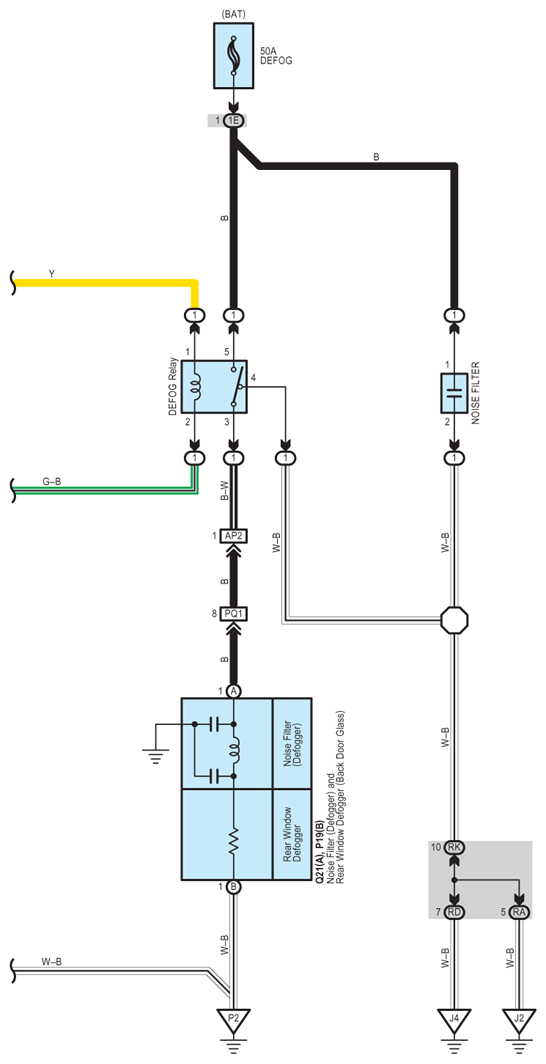

Fig 2: Mirror Heater And Rear Window Defogger - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
