Power Seat (Front Passenger's Seat): Notes

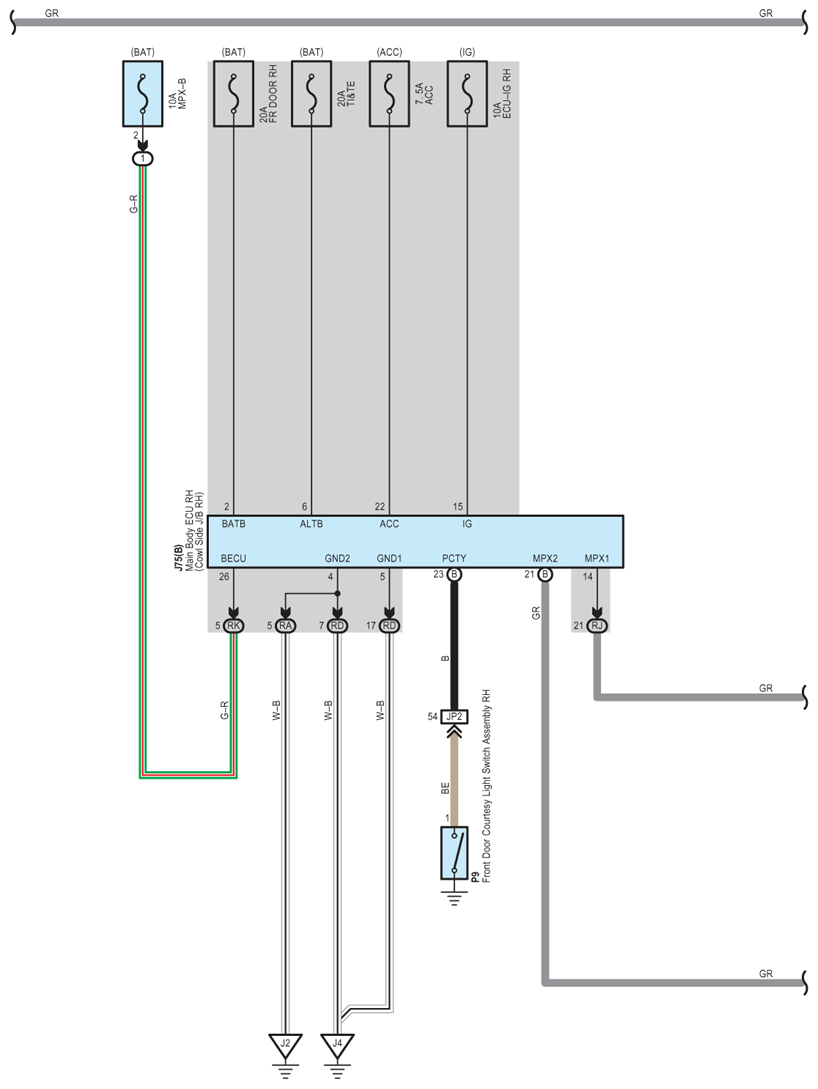

Fig 1: Power Seat (Front Passengers Seat) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Seat (Front Passengers Seat) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

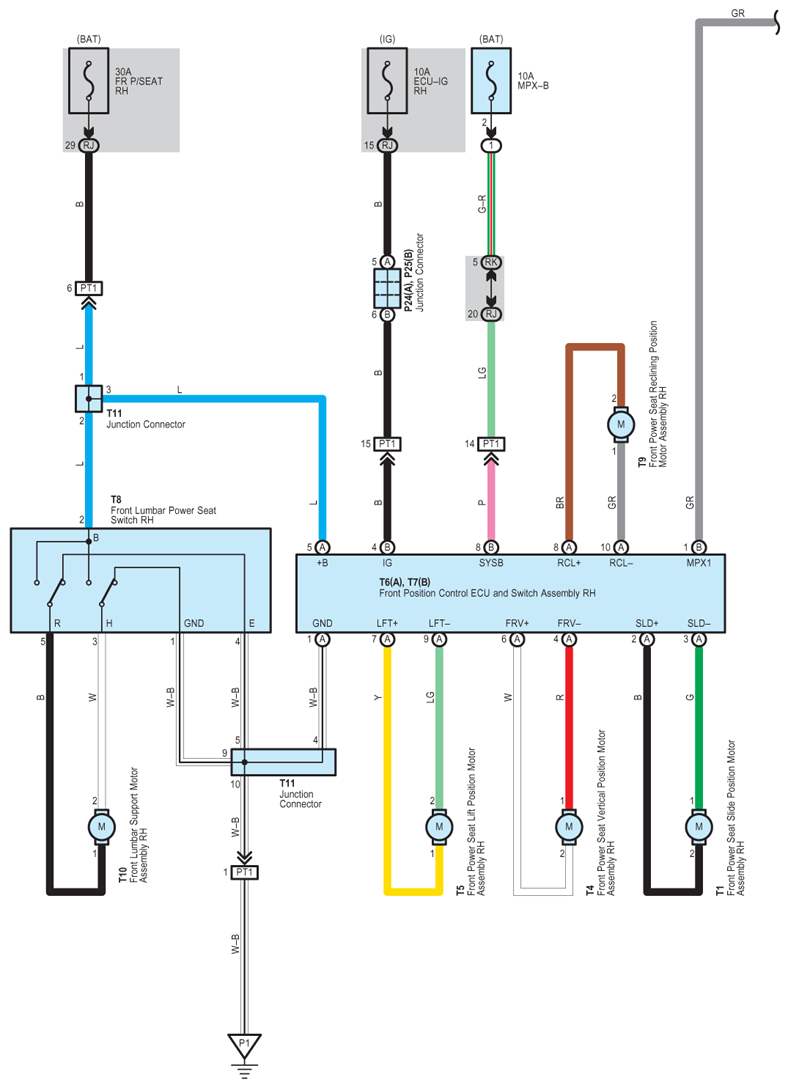

Fig 3: Power Seat (Front Passengers Seat) - Circuit Diagram (3 Of 4)

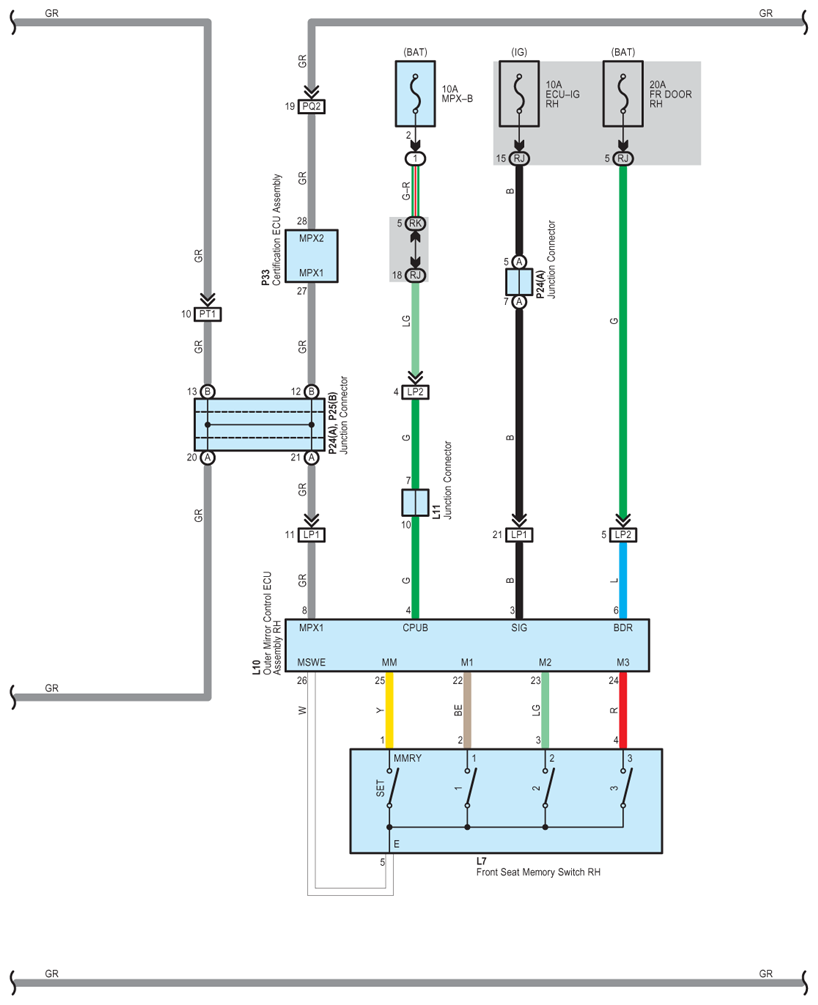

Fig 4: Power Seat (Front Passengers Seat) - Circuit Diagram (4 Of 4)
