HVAC System Re-Initializing (L-SB-0047-12 REV1)

Publication date: 2012-09-12
Reference number: L-SB-0047-12 REV1
Supersedes refnos: L-SB-0047-12

HVAC SYSTEM RE-INITIALIZING

TECHNICAL SERVICE BULLETIN

Reference Number(s): L-SB-0047-12 Rev1, Date of Issue: September 12, 2012

LEXUS:	2006 - 2011 GS300, GS350, GS430, GS450H, GS460; 2006 - 2012 IS F, IS250, IS250C, IS350, IS350C; 2007 - 2012 LS460, LS600H
SERVICE CATEGORY:	Vehicle Interior
SECTION:	Heating/Air Conditioning
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Superceded Bulletin(s): L-SB-0047-12, Date of Issue: June 19, 2012

APPLICABILITY

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2006 - 2011	GS300, GS350, GS430, GS450H, GS460
2006 - 2012	IS F, IS250, IS250C, IS350, IS350C
2007 - 2012	LS460, LS600H

REVISION NOTICE

NOTE: September 12, 2012 Rev1:

Applicability has been updated to include 2006 model year GS vehicles.
The Notice in the Introduction has been updated.

Any previous printed versions of this bulletin should be discarded.

INTRODUCTION

Some vehicles may experience a condition where the HVAC system operation is delayed for the first few seconds after start up and the HVAC system resets to 75°F (24°C). This condition may be caused by a damaged air inlet door servo linkage. A new part kit and service procedure has been developed to address this condition.

NOTE: Damage to the air inlet door servo linkage caused by improper replacement of the cabin air filter leading to the condition outlined above is not warrantable under this service bulletin.

WARRANTY INFORMATION

OP CODE	DESCRIPTION	MODEL	OFP	TIME	T1	T2
AC1201	R & R Damper Assy	IS/GS	87130-30810 87130-30811	7.0	62	41
AC1201	R & R Damper Assy	LS	87130-50100 87130-50101 87130-50102	7.0	62	41

APPLICABLE WARRANTY

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
Warranty application is limited to occurrence of the specified condition described in this bulletin.

PARTS INFORMATION

MODEL	PREVIOUS PART NUMBER	CURRENT PART NUMBER	PART NAME	QTY
IS/GS	N/A	87020-30020	Damper Assy, Heater Air	1
LS	N/A	87020-50020	Damper Assy, Heater Air	1

REPAIR PROCEDURE

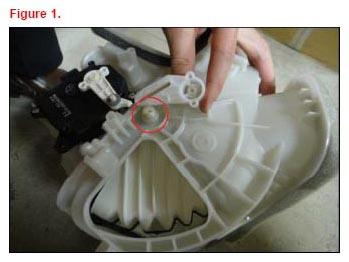

Verify the air inlet door servo linkage is damaged as shown.
NOTE: If the air inlet door is not damaged this bulletin does NOT apply.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the Air Conditioning Unit.
Refer to the Technical Information System (TIS), applicable model and model year Repair Manual:
- 2006 GS 300:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2007 / 2008 / 2009 / 2010 / 2011 GS350:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2006 GS 430:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2007 / 2008 / 2009 / 2010 / 2011 GS450h:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2008 / 2009 / 2010 / 2011 GS460:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2006 / 2007 / 2008 / 2009 / 2010 / 2011 /2012 IS250:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2010 / 2011 /2012 IS250C:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2006 / 2007 / 2008 / 2009 / 2010 / 2011 /2012 IS350:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2010 / 2011 /2012 IS350C:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
- 2007 / 2008 / 2009 / 2010 / 2011 /2012 LS460:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit (for front side): Removal"
- 2008 / 2009 / 2010 / 2011 /2012 LS600h:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit (for front side): Removal"

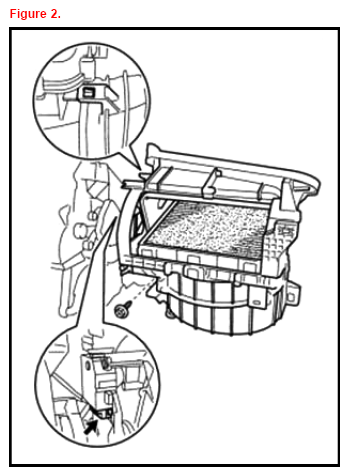

Remove the blower assembly (LS 460/600h only).

Remove the screw.
Disconnect the connector.

Detach the claw and remove the blower unit.

NOTE: Step 3 is ONLY necessary if this procedure is being performed on a LS 460 or LS 600h. For all other vehicles proceed to step 4.

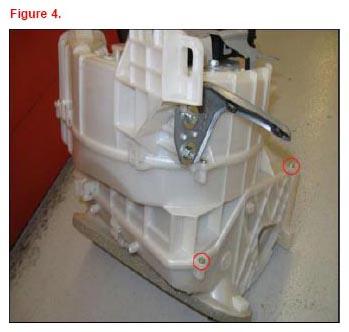

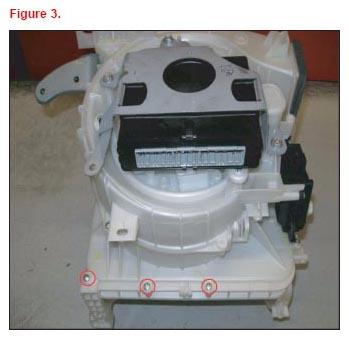

Remove the upper portion of the blower motor housing by removing the retaining screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

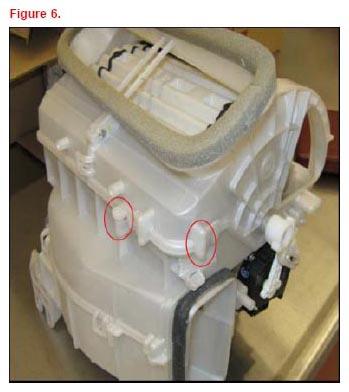

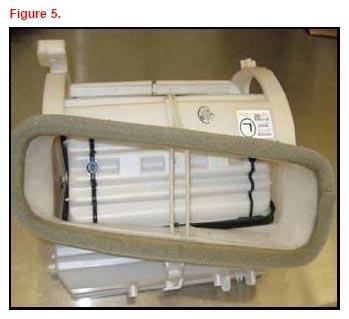

Release the clips securing the upper portion of the blower motor housing to the bottom portion.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

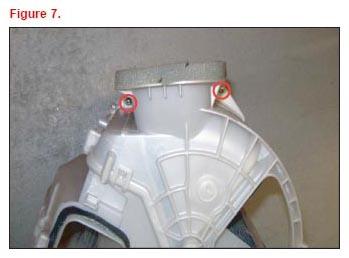

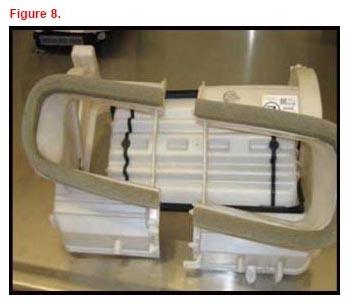

Separate the upper portion the blower motor housing by removing the retaining screws and clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

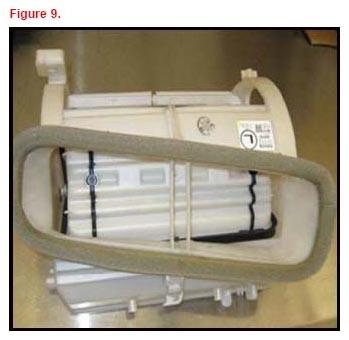

Reattach the upper blower motor housing to the lower blower motor housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

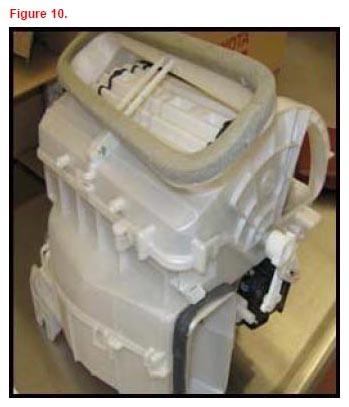

Reattach the blower motor housing to the HVAC box.
Install the Air Conditioning Unit.
Refer to TIS, applicable model and model year Repair Manual:
- 2006 GS 300:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2007 / 2008 / 2009 / 2010 / 2011 GS350:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2006 GS 430:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2007 / 2008 / 2009 / 2010 / 2011 GS450h:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2008 / 2009 / 2010 / 2011 GS460:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2006 / 2007 / 2008 / 2009 / 2010 / 2011 /2012 IS250:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2010 / 2011 /2012 IS250C:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2006 / 2007 / 2008 / 2009 / 2010 / 2011 /2012 IS350:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2010 / 2011 /2012 IS350C:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
- 2007 / 2008 / 2009 / 2010 / 2011 /2012 LS460:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit (for front side): Installation"
- 2008 / 2009 / 2010 / 2011 /2012 LS600h:
  Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit (for front side): Installation"
Verify normal HVAC System Operation.
