Rear Speed Sensor: Installation: Installation

NOTE:

While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.

HINT:

The procedures listed below are for the RH side.
Other than areas where instructions are provided, use the same procedures for the LH side and RH side.

INSTALL REAR SPEED SENSOR RH
1. Install the sensor with the bolt.

  Fig 1: Locating Rear Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
  NOTE:
  - The rear speed sensor is easily damaged. When installing the rear speed sensor to the rear axle hub RH, do not use excessive force to rotate and install it.
  - Prevent foreign matter from attaching to the sensor tip.
  - Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
INSTALL SKID CONTROL SENSOR WIRE
1. Connect the connector to the rear speed sensor.

  Fig 2: Identifying Pad Wear Indicator Connector, Speed Sensor & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor clamp with the bolt.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE:
  Do not twist the sensor wire when installing the clamps.
3. Connect the pad wear indicator connector.
4. Install the sensor clamp with the nut.

  Fig 3: Install The Sensor Clamp With The Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  NOTE:
  Do not twist the sensor wire when installing the clamps.
5. Except for coil spring type suspension:

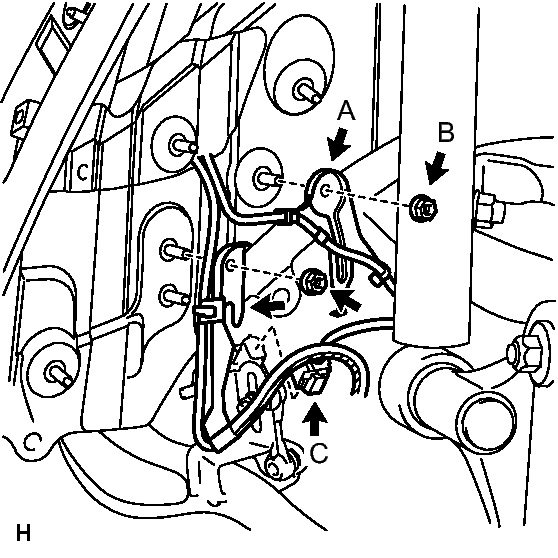

  1. Install the sensor clamp (labeled A) with the nut (labeled B).
    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
  2. Connect the rear height control sensor connector (labeled C).
6. Insert the connector and grommet to the inside of the vehicle through the hole in the wheel house.

  Fig 4: Locating Speed Sensor Wire Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. for RH:
  1. Connect the rear speed sensor wire connector.

    Fig 5: Locating Skid Control Sensor Wire Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. for LH:
  1. Install the No. 1 skid control sensor clamp with the nut.

    Fig 6: Install the No. 1 Skid Control Sensor Clamp With The Nut
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
  2. Attach the skid control sensor wire.
  3. Connect the sensor connector.
INSTALL REAR WHEEL . Refer to INSTALLATION - Step 35
INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH . Refer to INSTALLATION - Step 4
INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH . Refer to INSTALLATION - Step 5
INSTALL REAR FLOOR FINISH PLATE . Refer to INSTALLATION - Step 6
INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT . Refer to INSTALLATION - Step 8
INSTALL COOLER COVER NO. 1 (w/ Rear Cooler) . Refer to INSTALLATION - Step 21
INSTALL LUGGAGE COMPARTMENT NO. 2 TRIM HOOK (w/o Rear Cooler) . Refer to INSTALLATION - Step 9
INSTALL LUGGAGE COMPARTMENT NO. 1 LIGHT ASSEMBLY . Refer to INSTALLATION - Step 10
INSTALL DECK TRIM SIDE BOARD LH . Refer to INSTALLATION - Step 11
INSTALL DECK TRIM SIDE BOARD RH . Refer to INSTALLATION - Step 12
INSTALL ROPE HOOK ASSEMBLY . Refer to INSTALLATION - Step 13
INSTALL ROPE HOOK . Refer to INSTALLATION - Step 14
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY . Refer to INSTALLATION - Step 15
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 16
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal. Refer to TEST MODE PROCEDURE .
