System Diagram

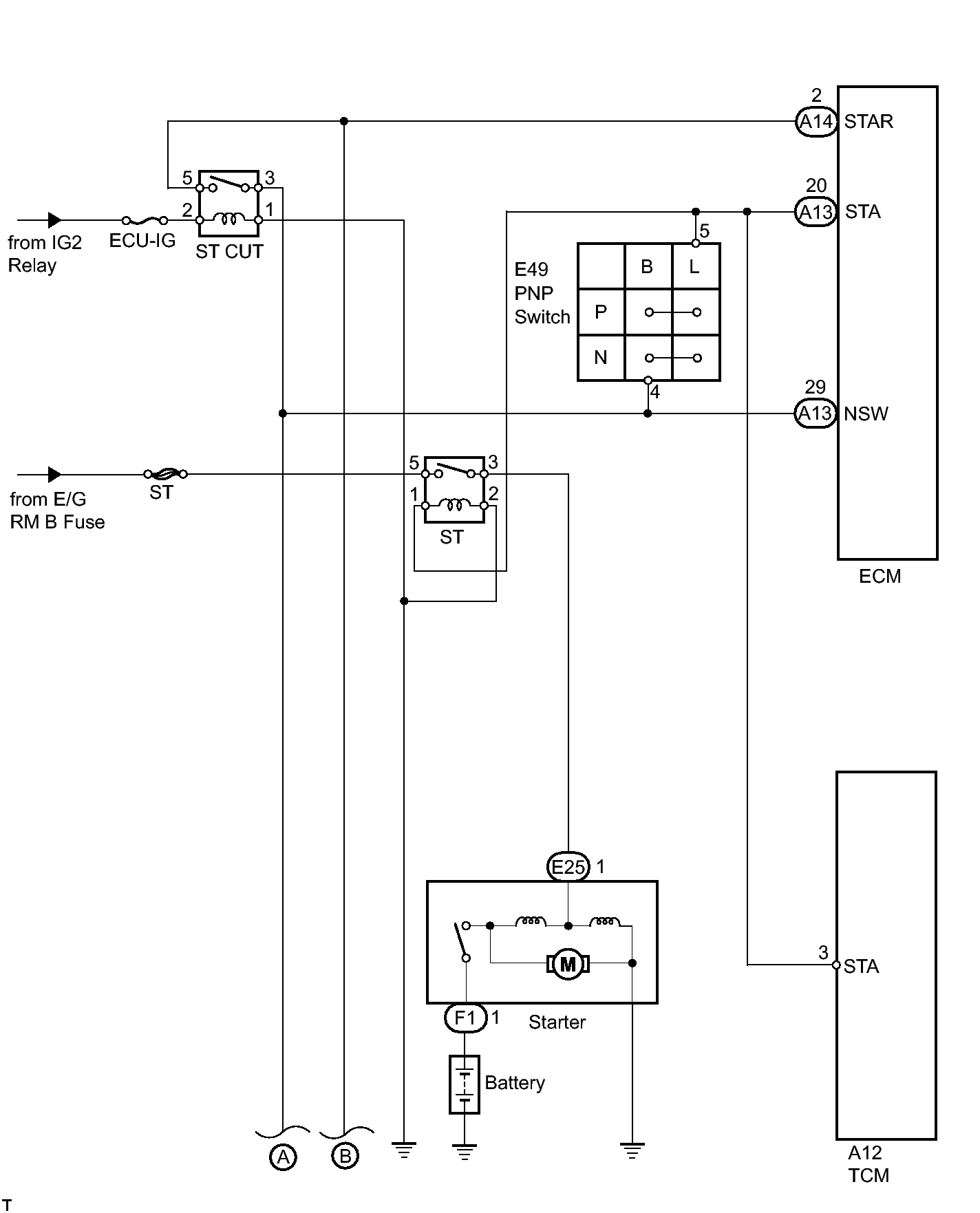

Fig 1: Starting System Wiring Diagram (1 Of 2)
GTY258335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

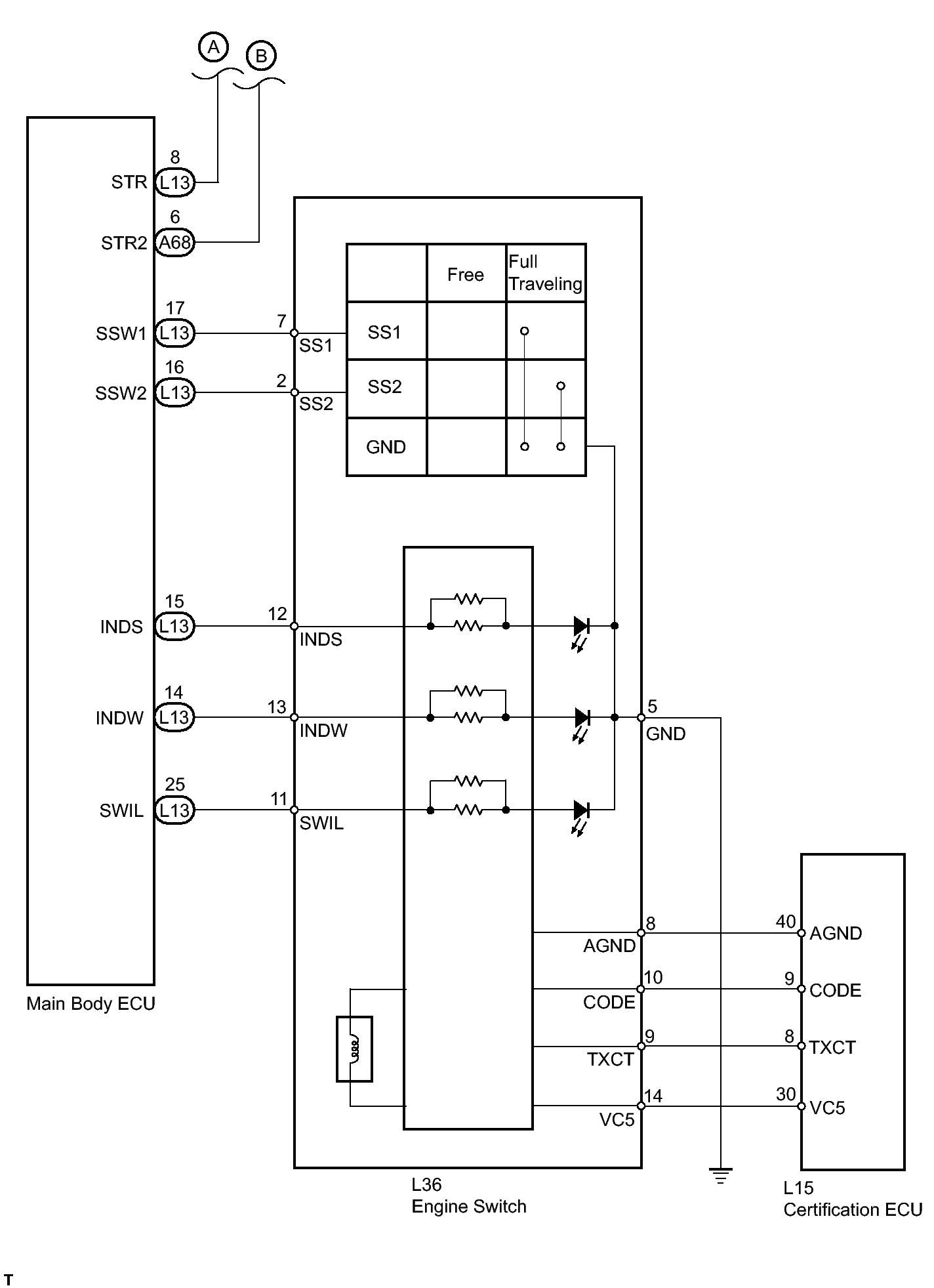

Fig 2: Starting System Wiring Diagram (2 Of 2)
GTY279189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
