AIR FUEL RATIO SENSOR (for AWD): Components: Illustration

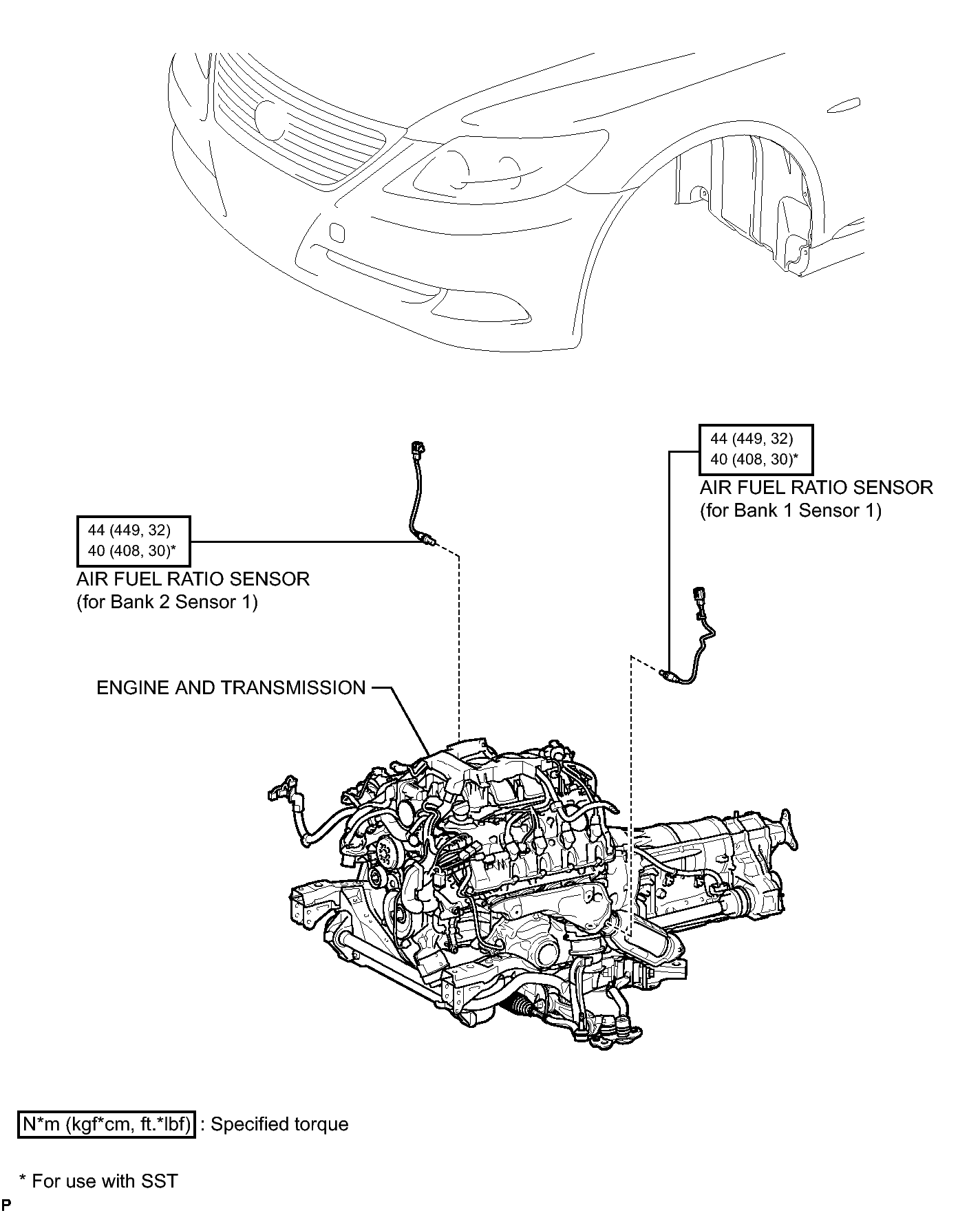

Fig 1: Identifying Air Fuel Ratio Sensor (AWD) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
