Lexus
›
2011
›
LS 460 AWD
›
Repair and Diagnosis
›
Engine Performance
›
Tune-Up
›
Ignition System (Inspection)
›
Ignition System
›
Components Location
›
Illustration
Components Location: Illustration

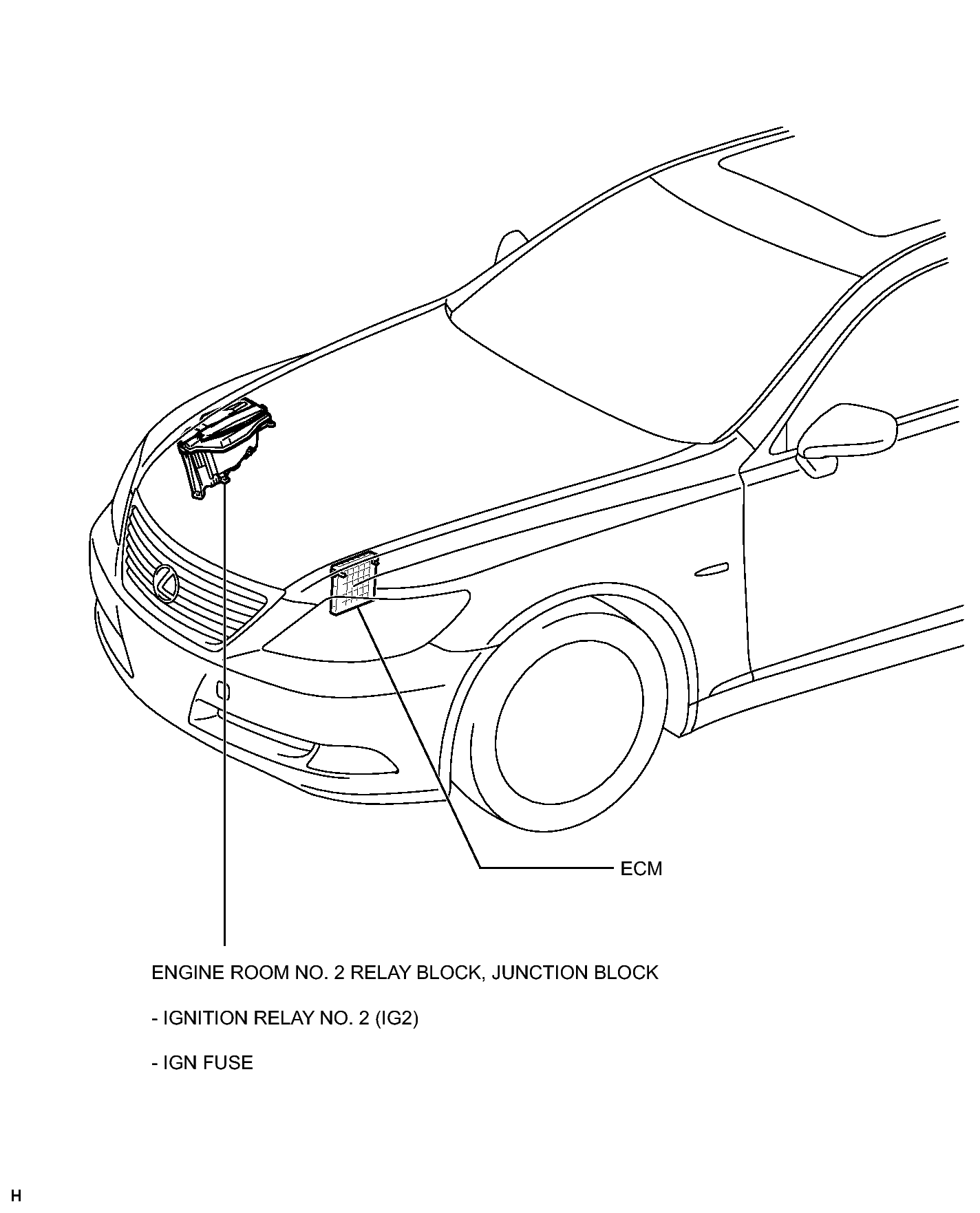

Fig 1: Identifying Ignition System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

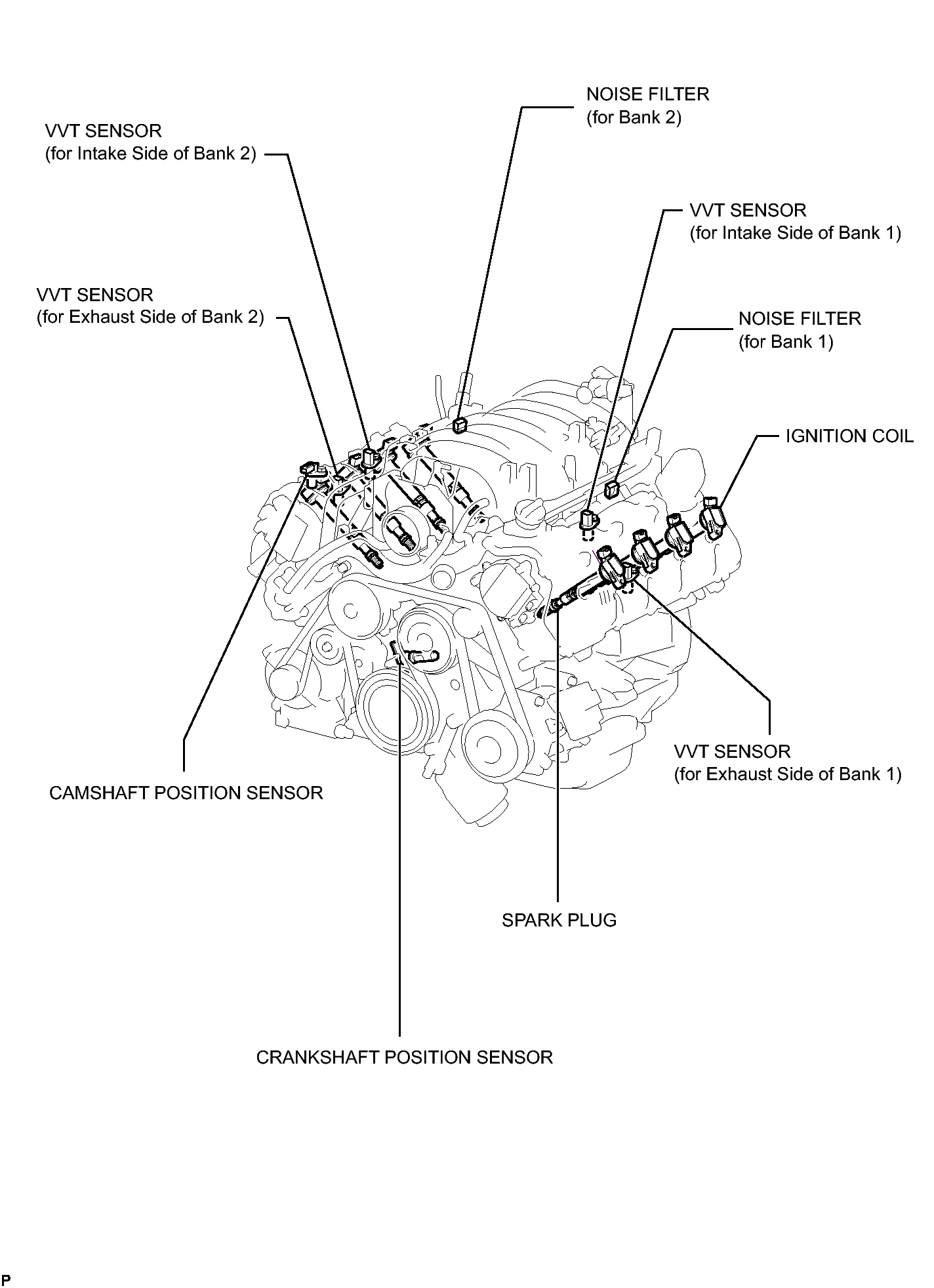

Fig 1: Identifying Ignition System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
