For AWD: Illustration

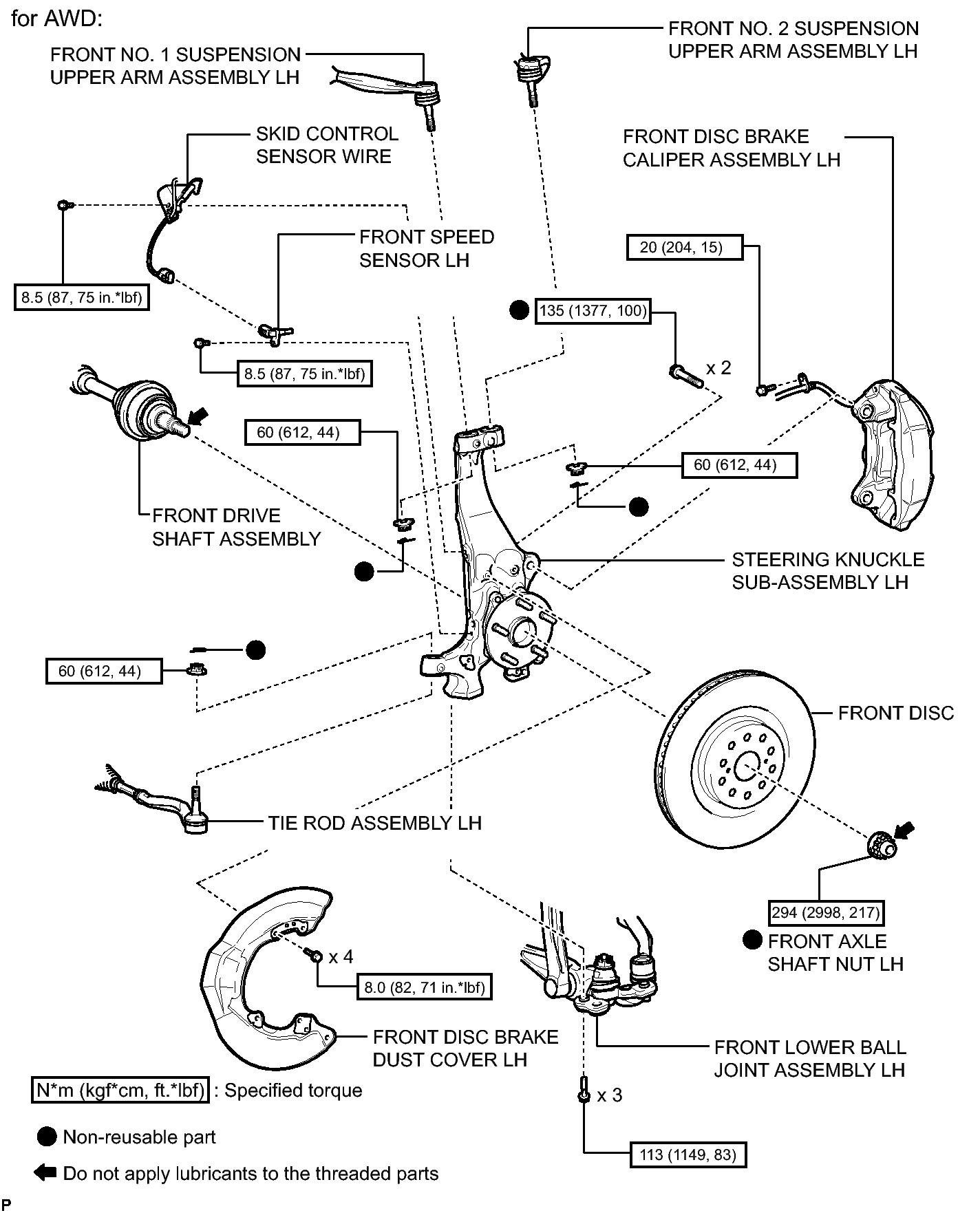

Fig 1: Identifying Front Shock Absorber (AWD) Replacement Components With Torque Specifications (1 Of 3)
GTY359144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

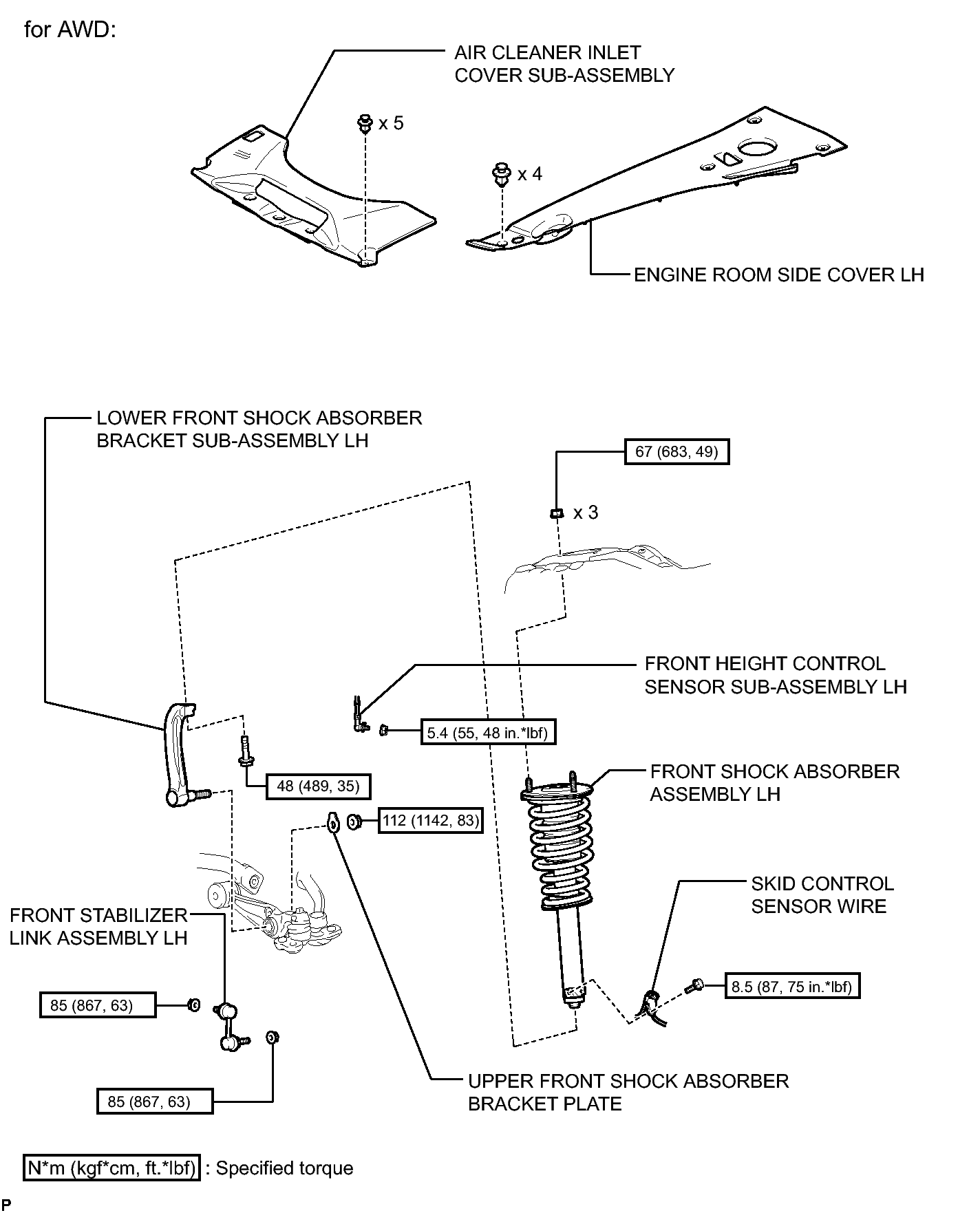

Fig 1: Identifying Front Shock Absorber (AWD) Replacement Components With Torque Specifications (2 Of 3)
GTY348829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

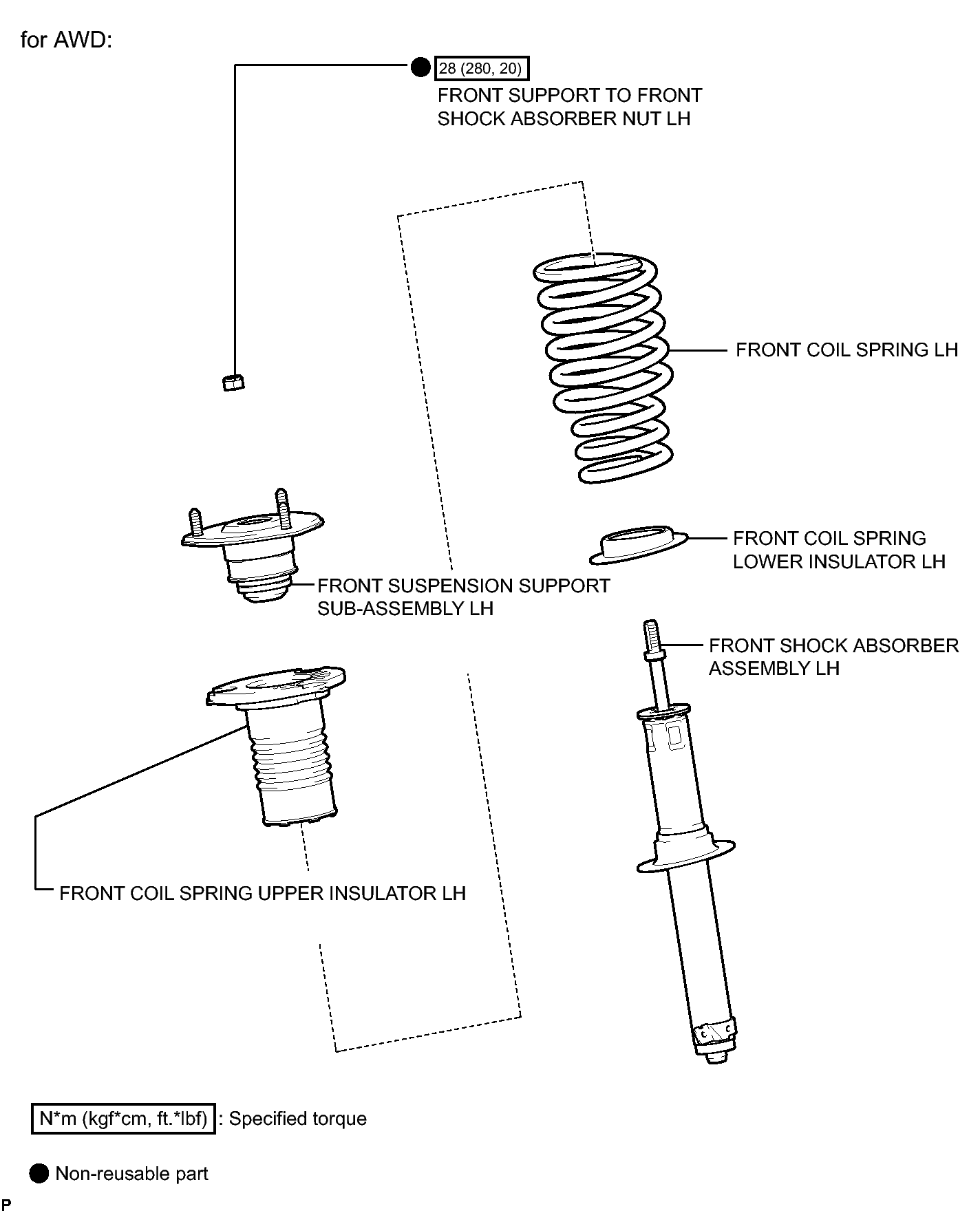

Fig 1: Identifying Front Shock Absorber (AWD) Replacement Components With Torque Specifications (3 Of 3)
GTY350440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
