System Diagram

Fig 1: Identifying Power Window Control - System Diagram (1 Of 2)
GTY273805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

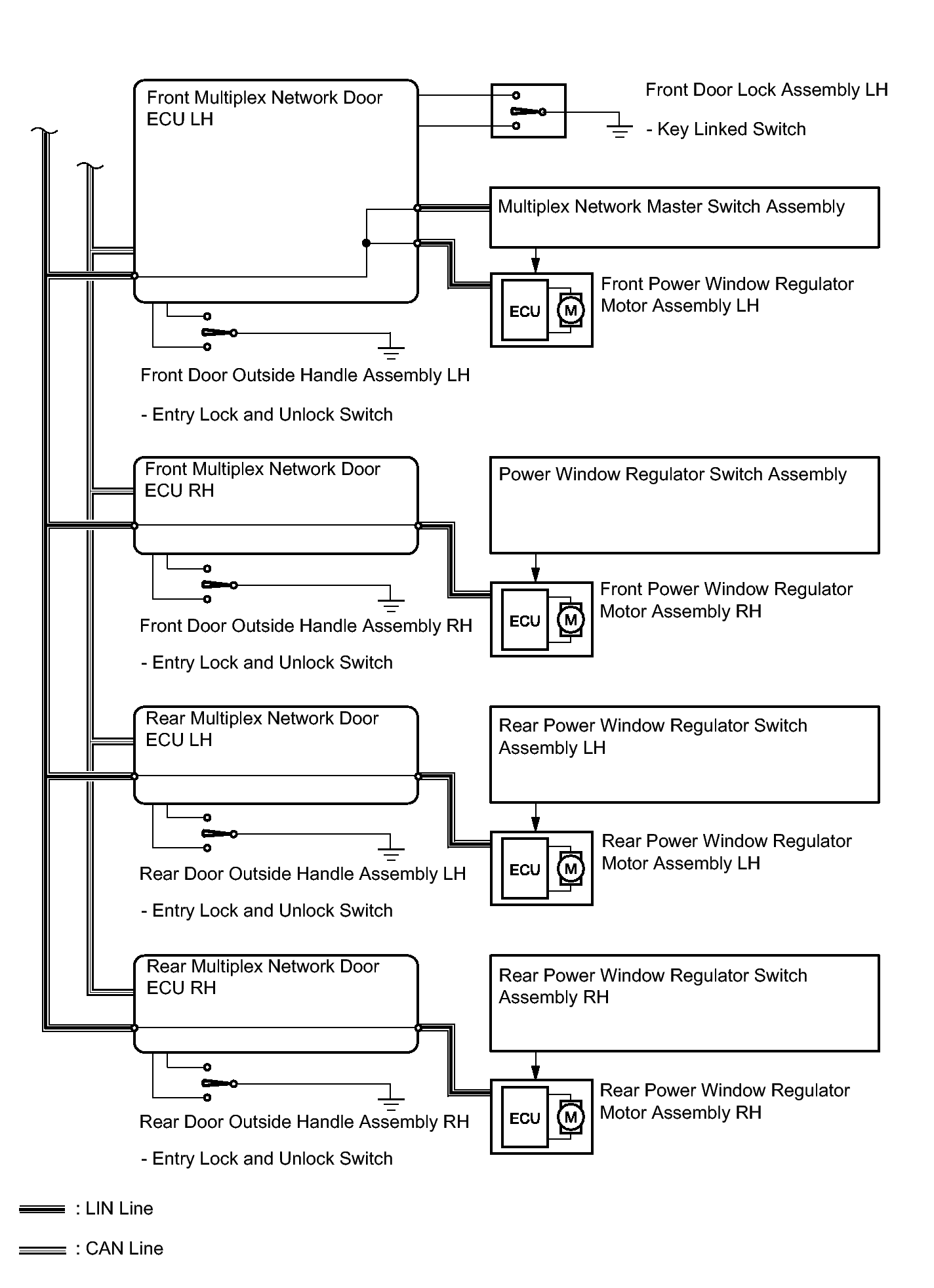

Fig 2: Identifying Power Window Control - System Diagram (2 Of 2)
GTY288579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
