Front Passenger Side Power Window Switch: Removal: Removal

REMOVE FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY

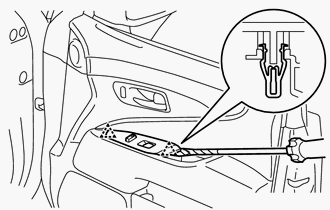

1. Using a screwdriver, detach the 2 clips.

  Fig 1: Removing Armrest Base Panel Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the 2 connectors and remove the armrest base panel assembly.

  Fig 2: Armrest Base Panel Assembly Connectors Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the 2 claws and remove the power window regulator switch.

  Fig 3: Identifying Power Window Regulator Switch Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
