Lexus
›
2011
›
LS 600hL
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Outlet (115V)
›
Notes
Power Outlet (115V): Notes

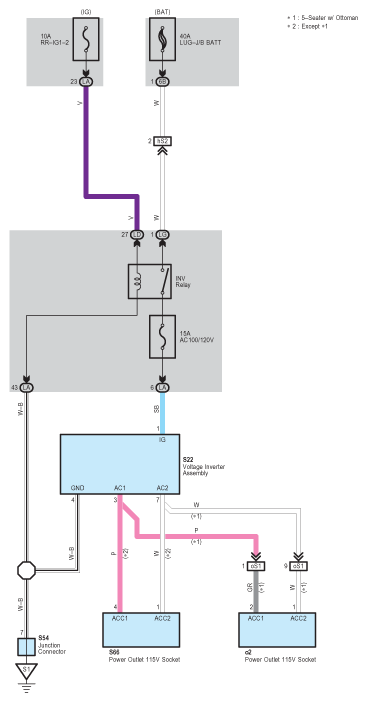

Fig 1: Power Outlet (115V) - Circuit Diagram
