Engine Assembly: Components: Illustration

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (1 Of 21)
GTY276894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

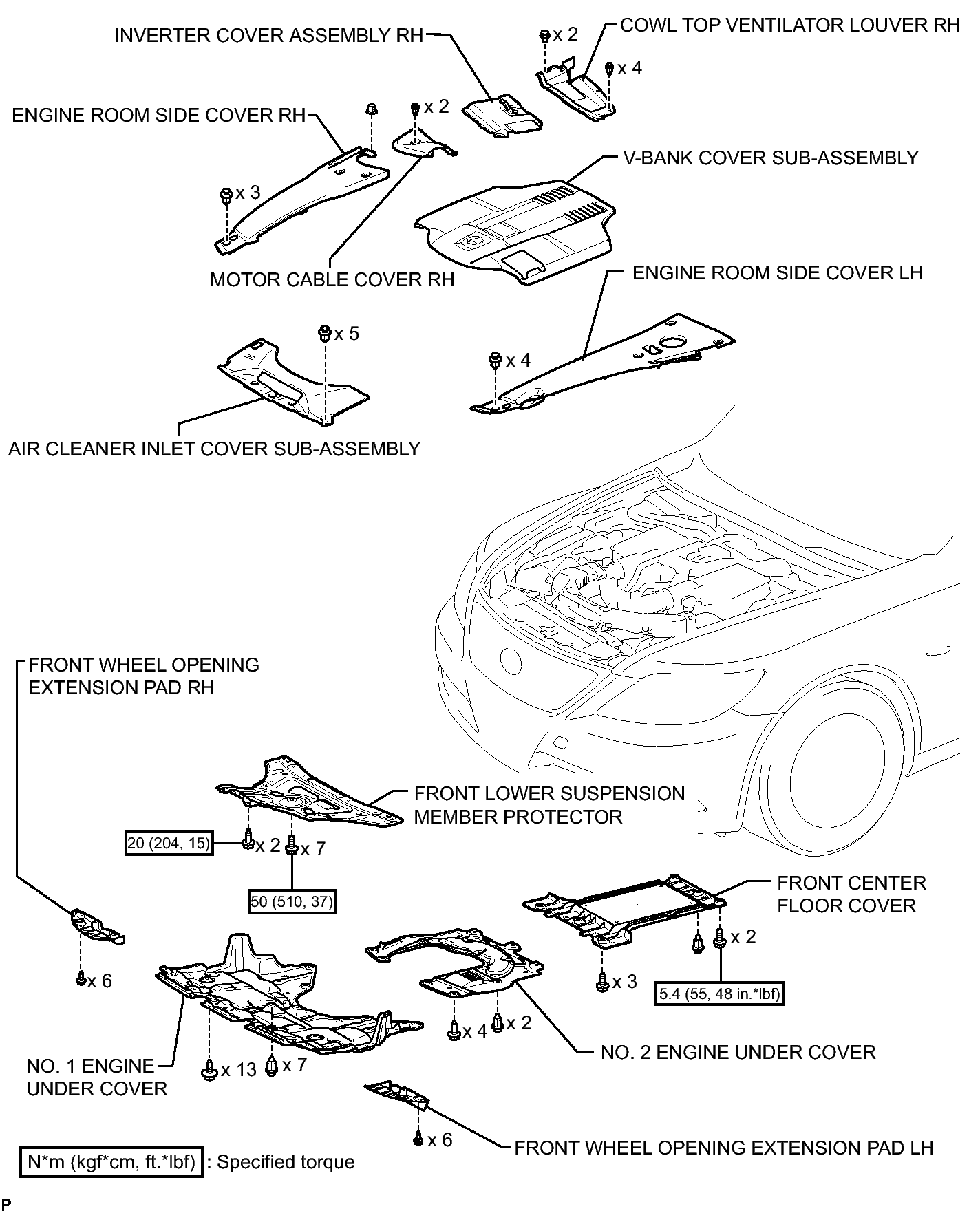

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (2 Of 21)
GTY277631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

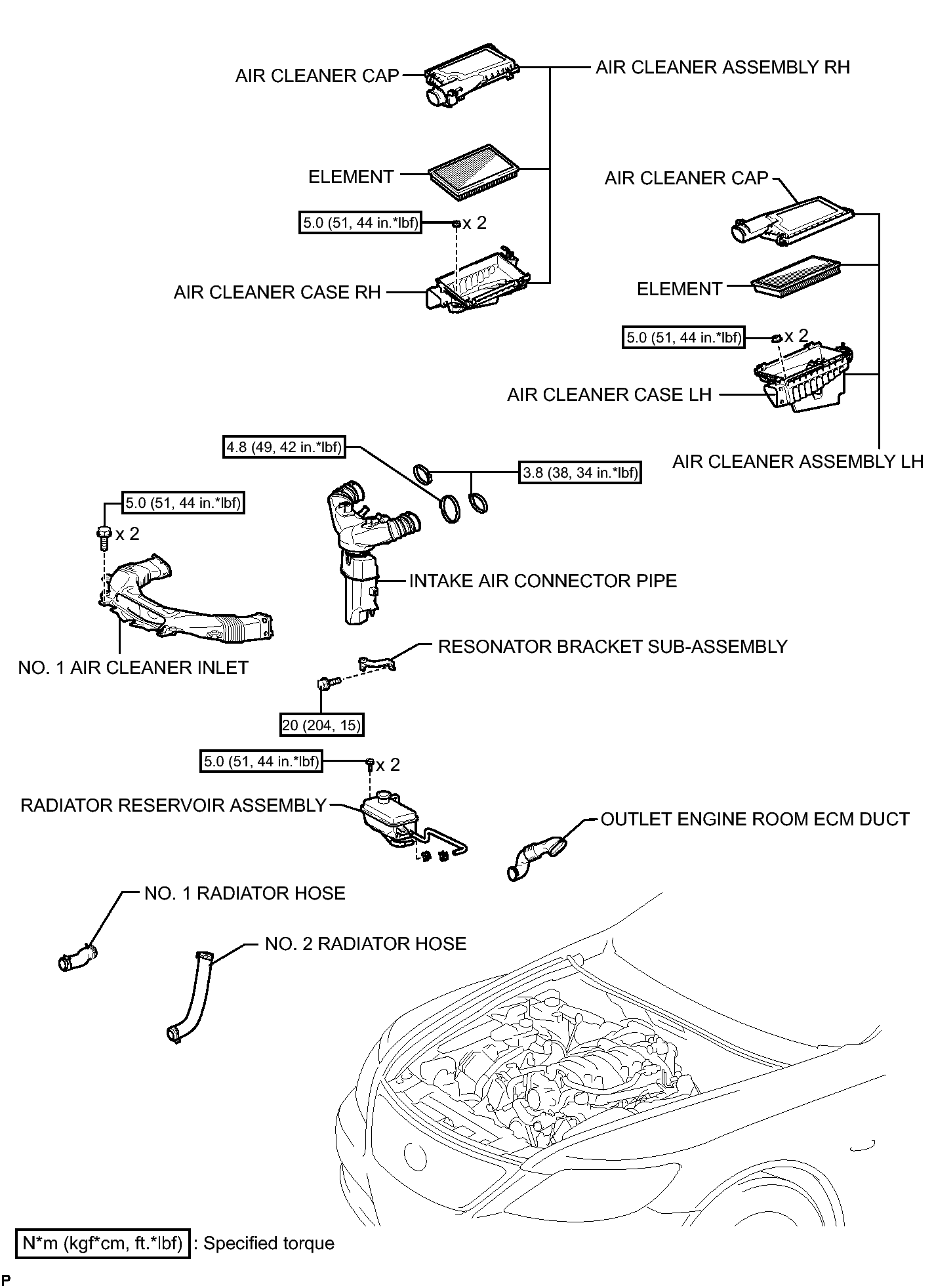

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 21)
GTY147888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

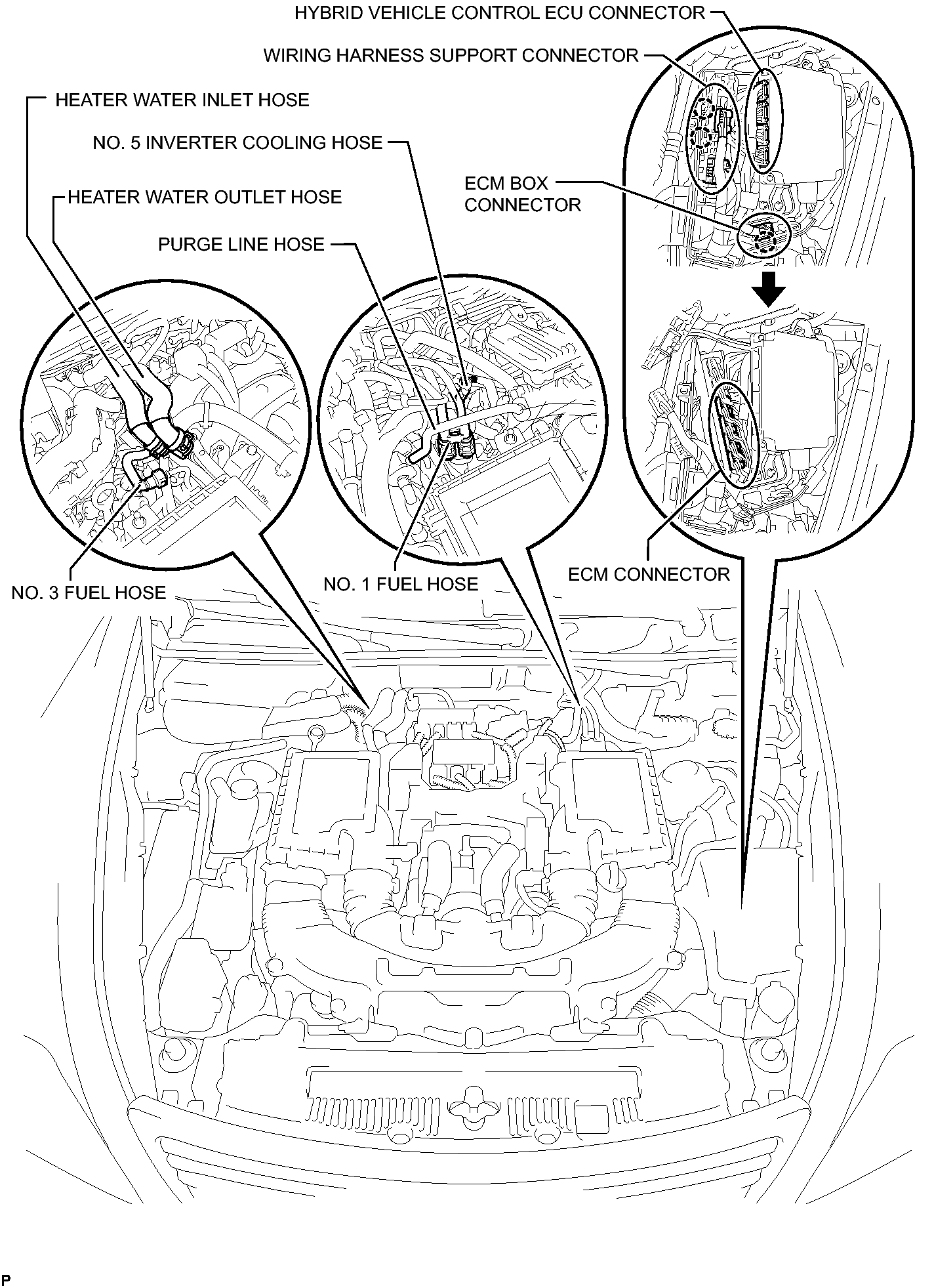

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 21)
GTY147889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

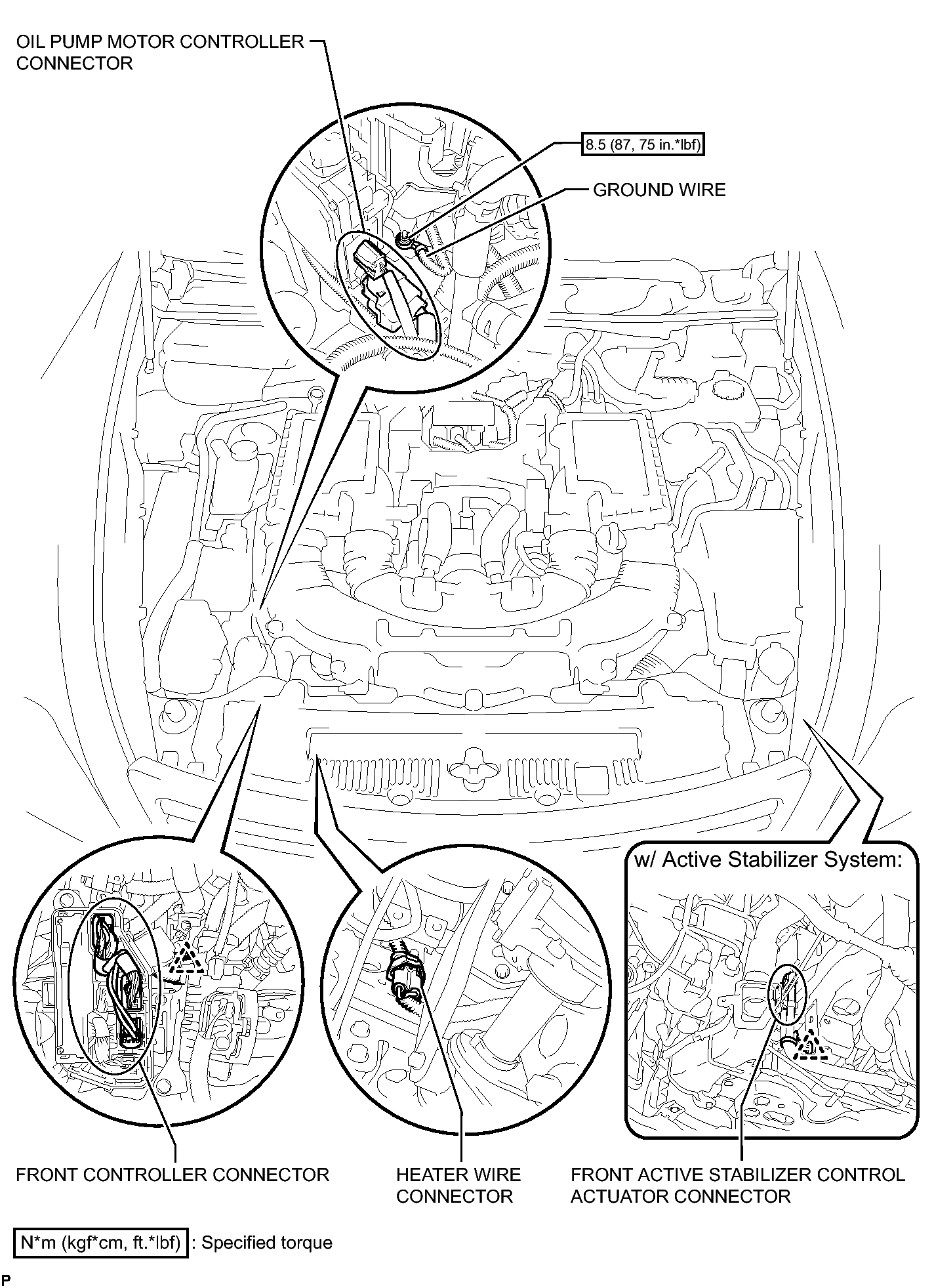

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 21)
GTY148317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

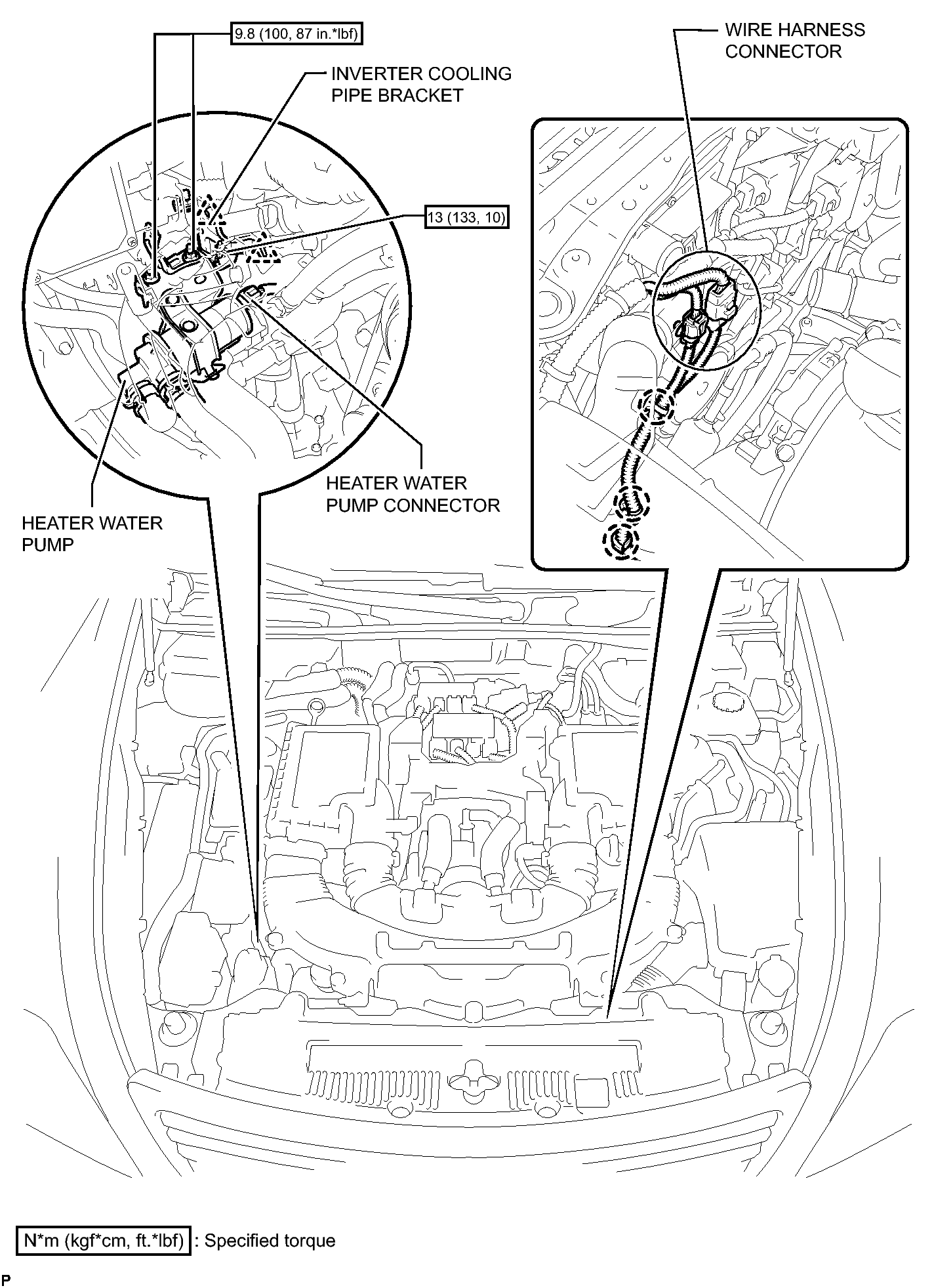

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 21)
GTY148322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

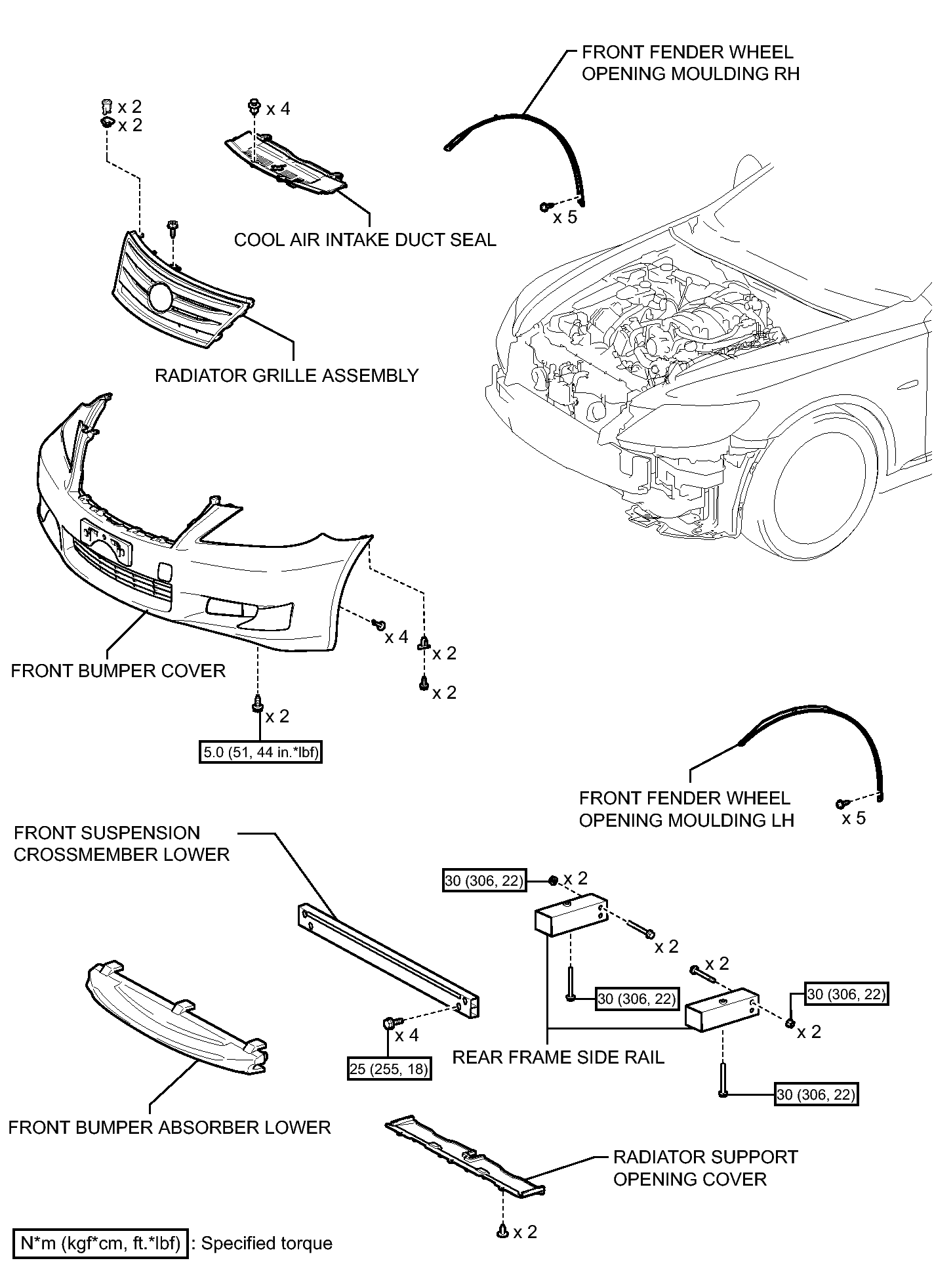

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (7 Of 21)
GTY263558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

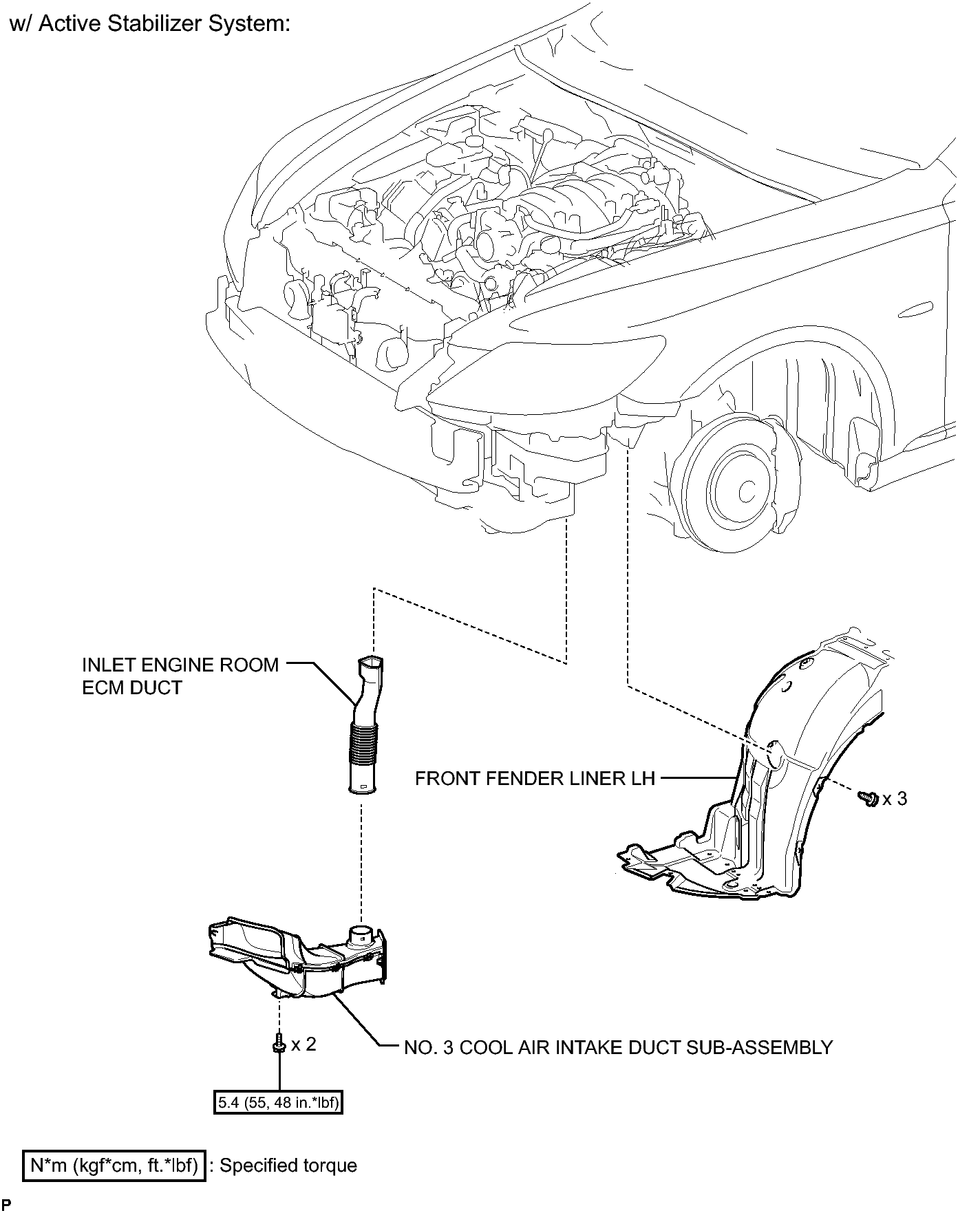

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 21)
GTY148443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

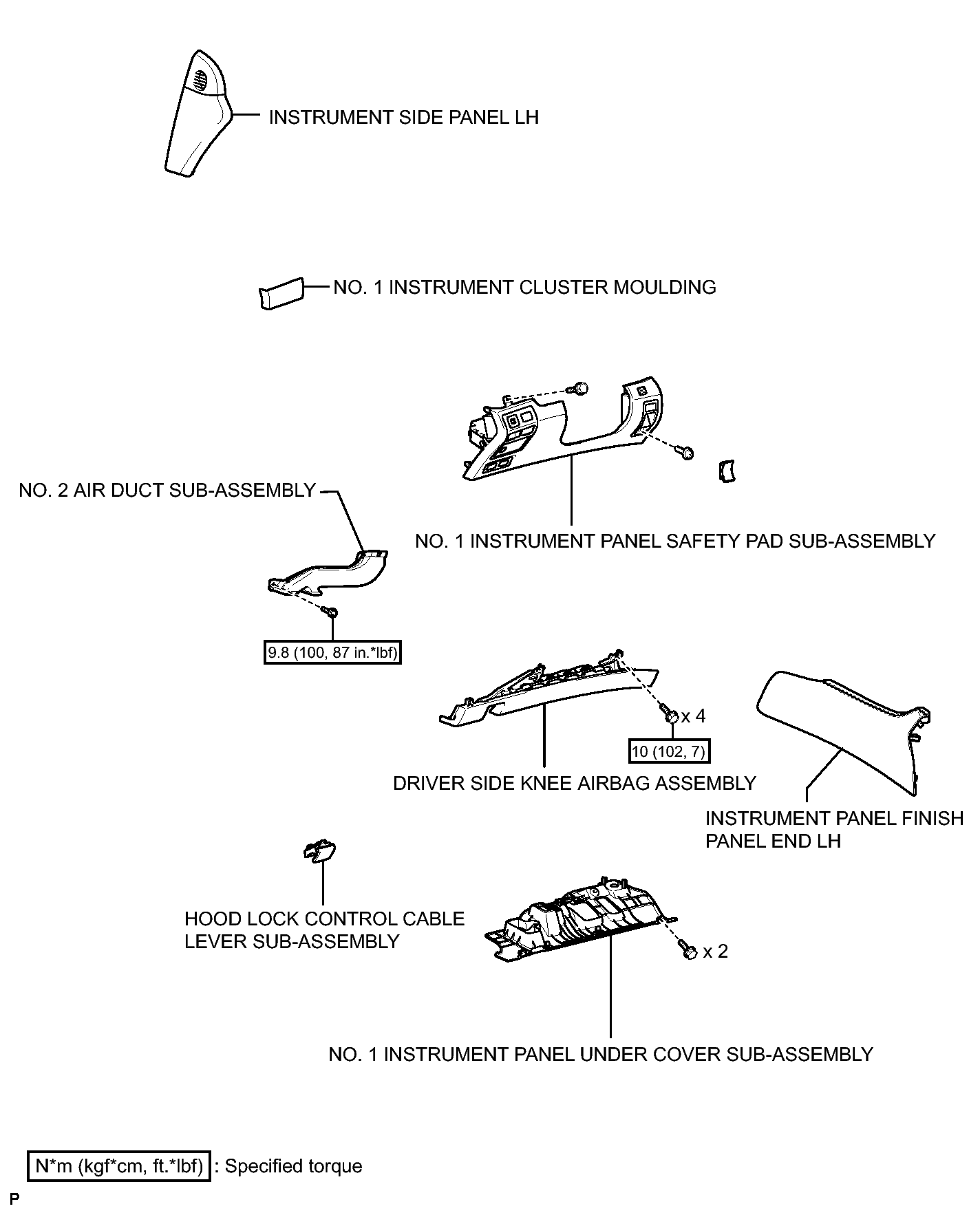

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 21)
GTY148323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

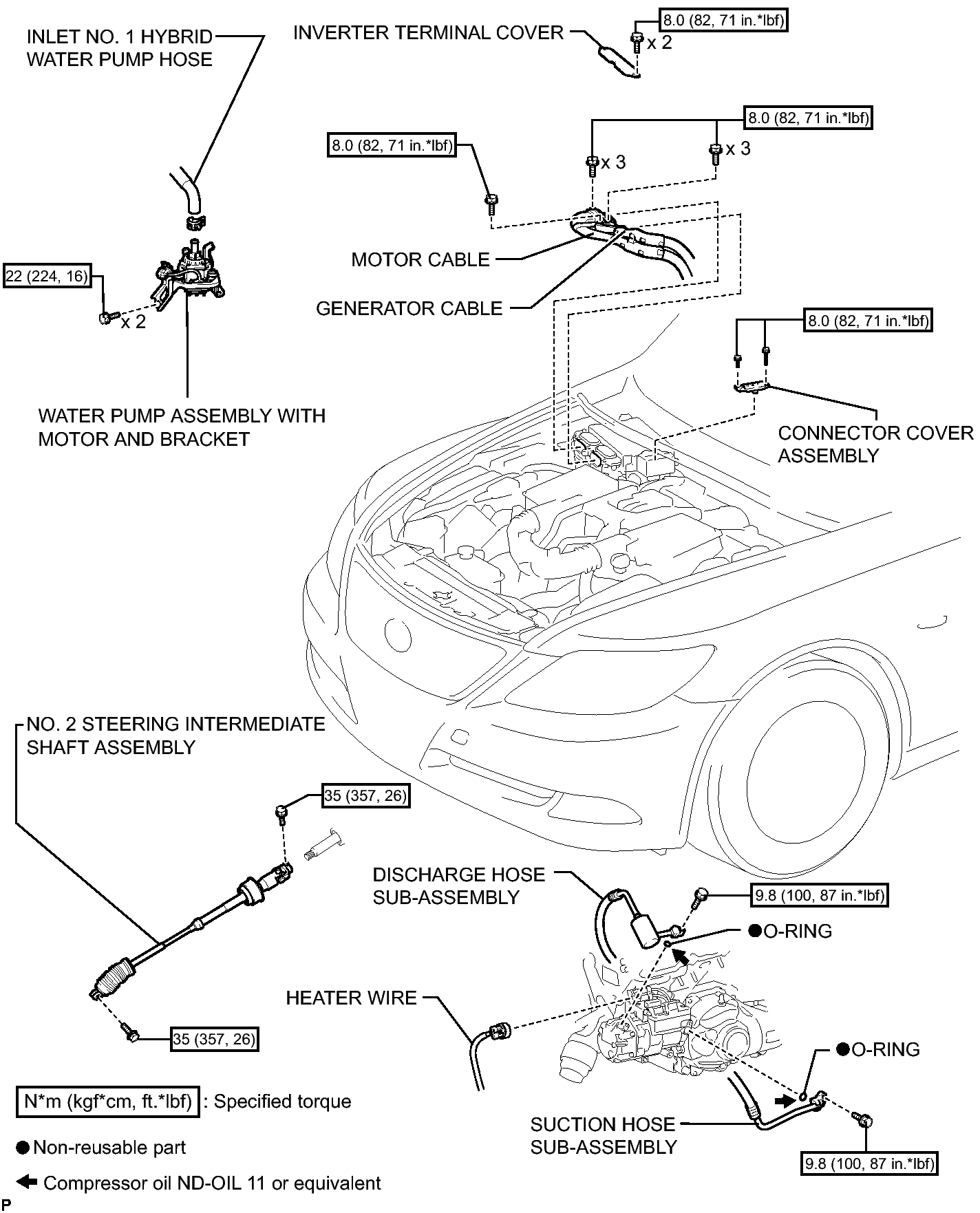

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (10 Of 21)
GTY144019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

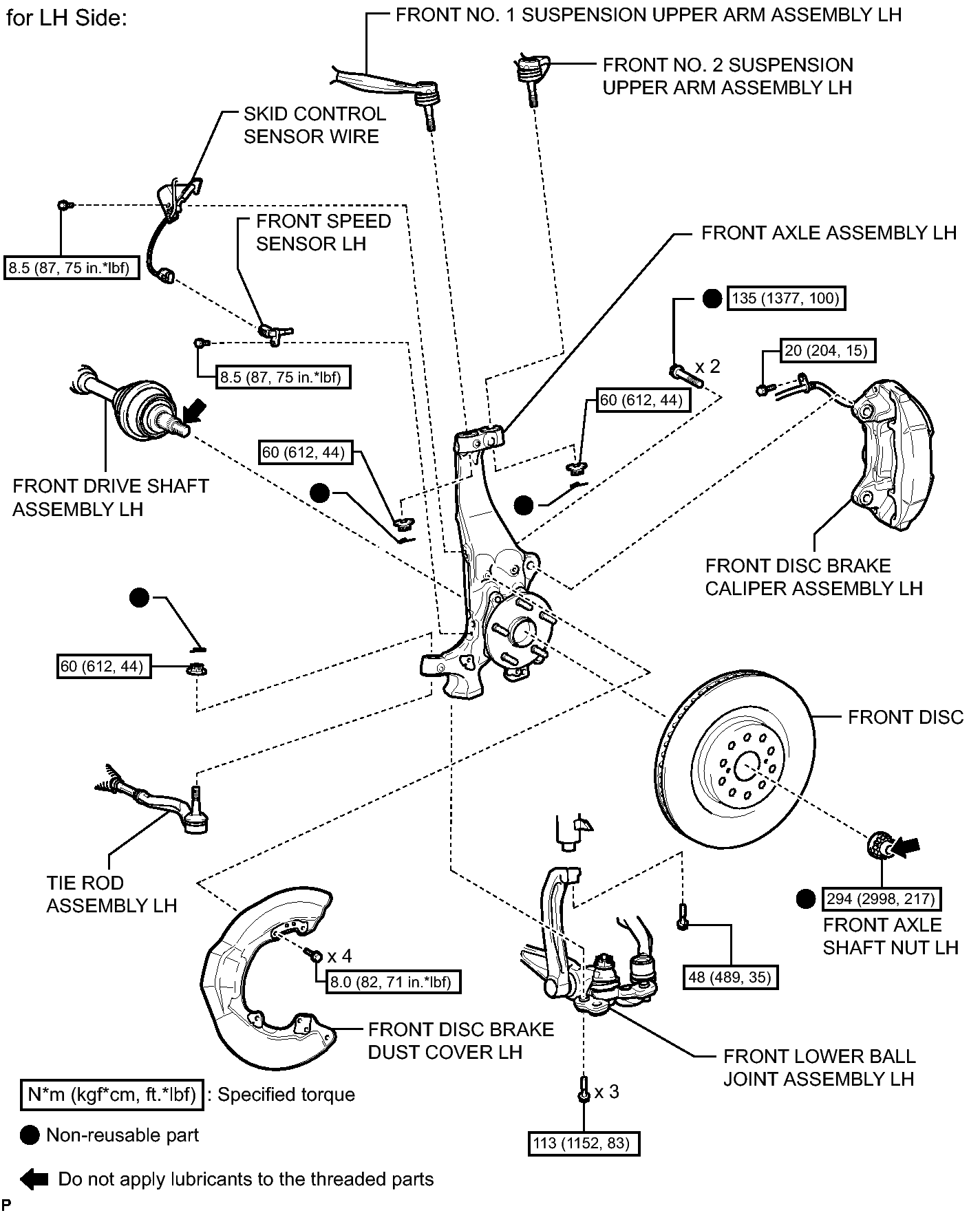

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (11 Of 21)
GTY110179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

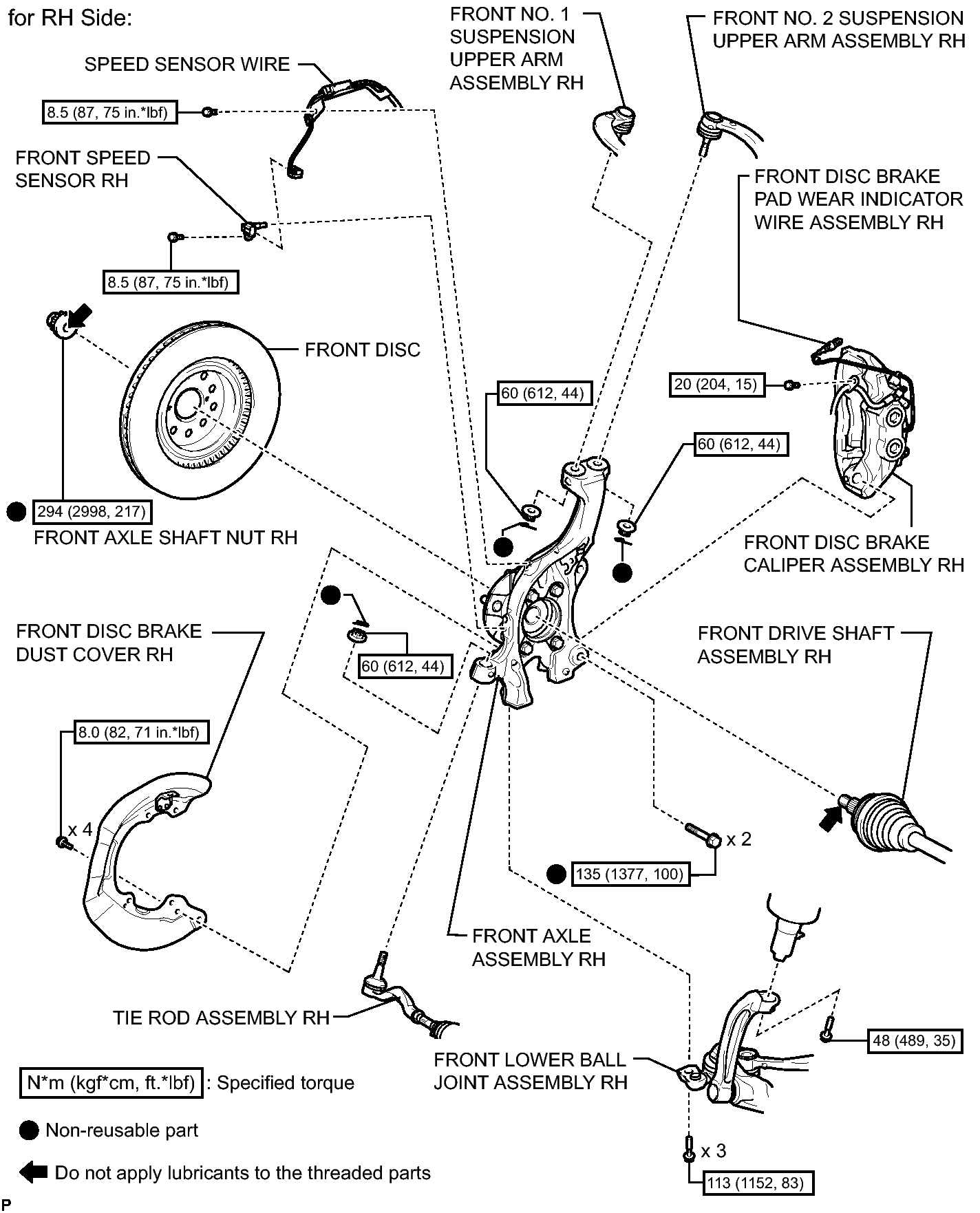

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (12 Of 21)
GTY110183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

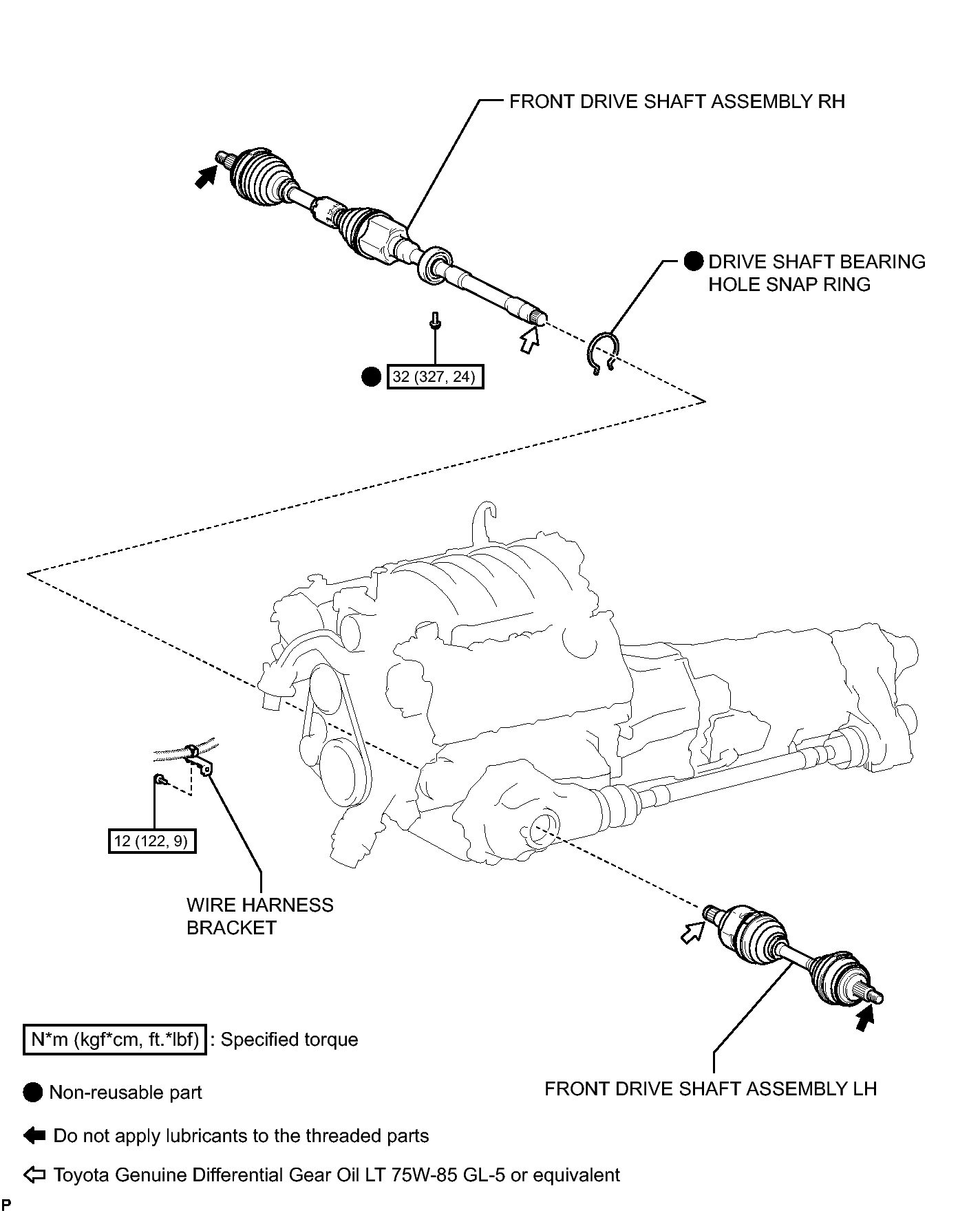

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (13 Of 21)
GTY110191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

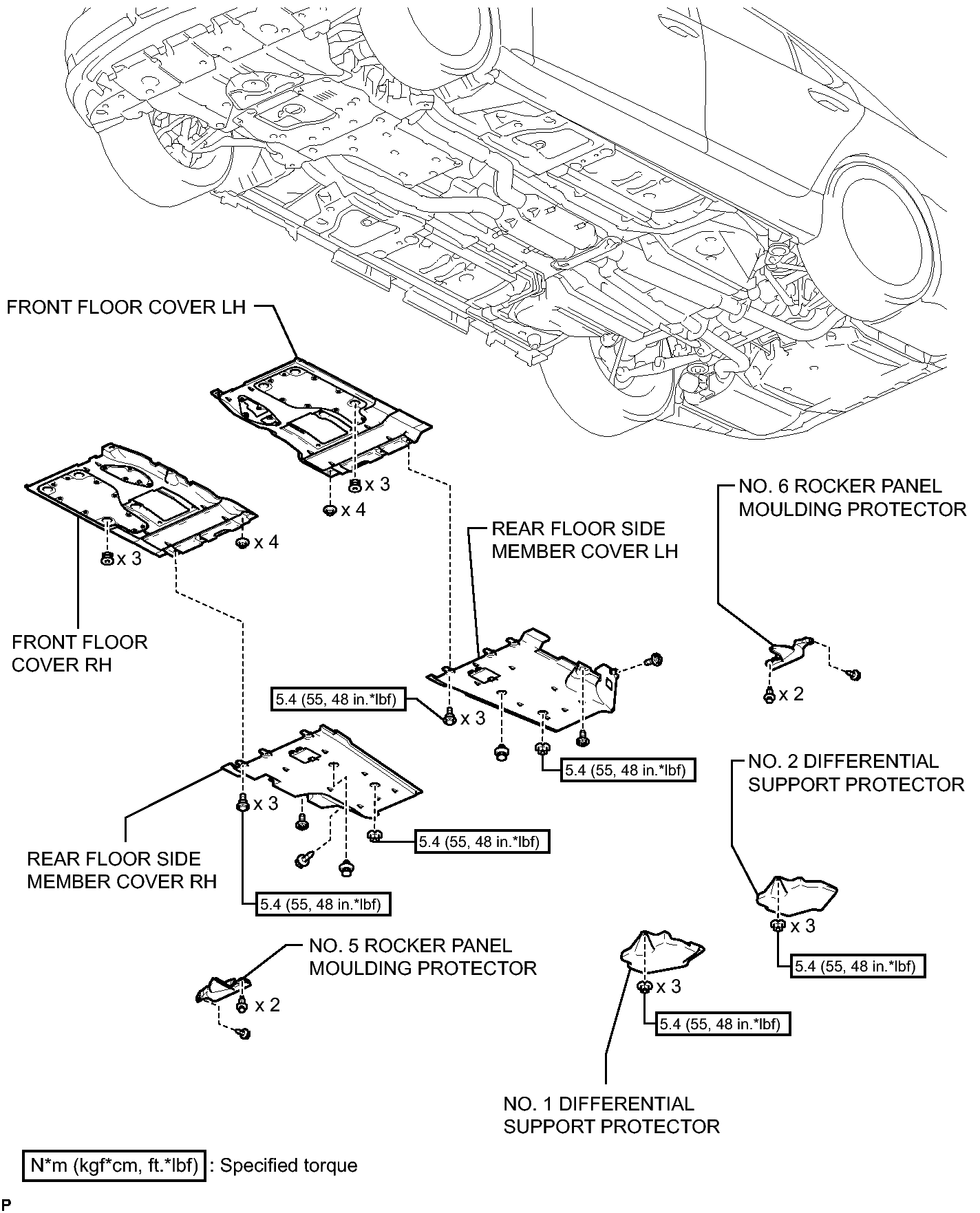

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (14 Of 21)
GTY148415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

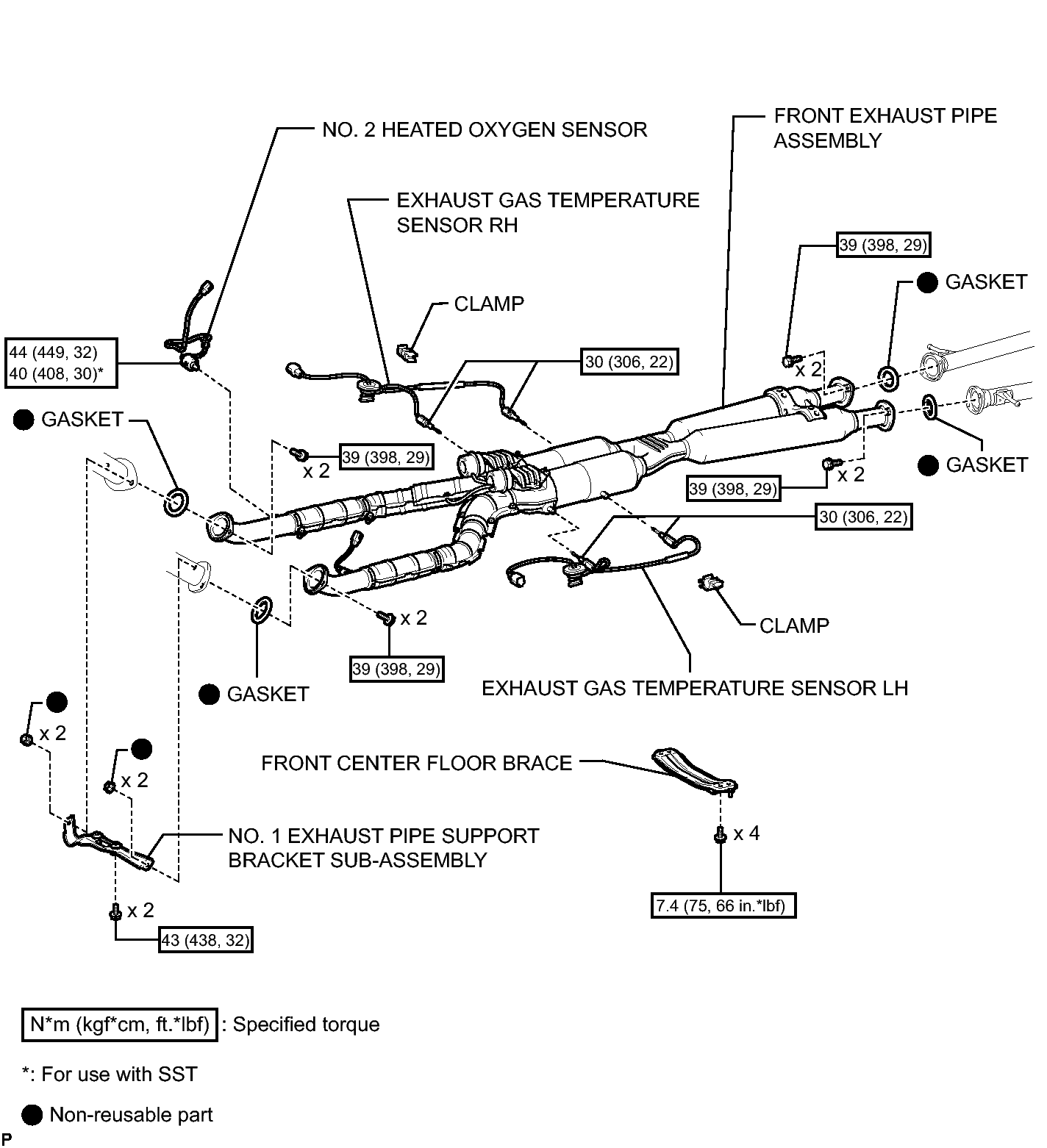

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (15 Of 21)
GTY270799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

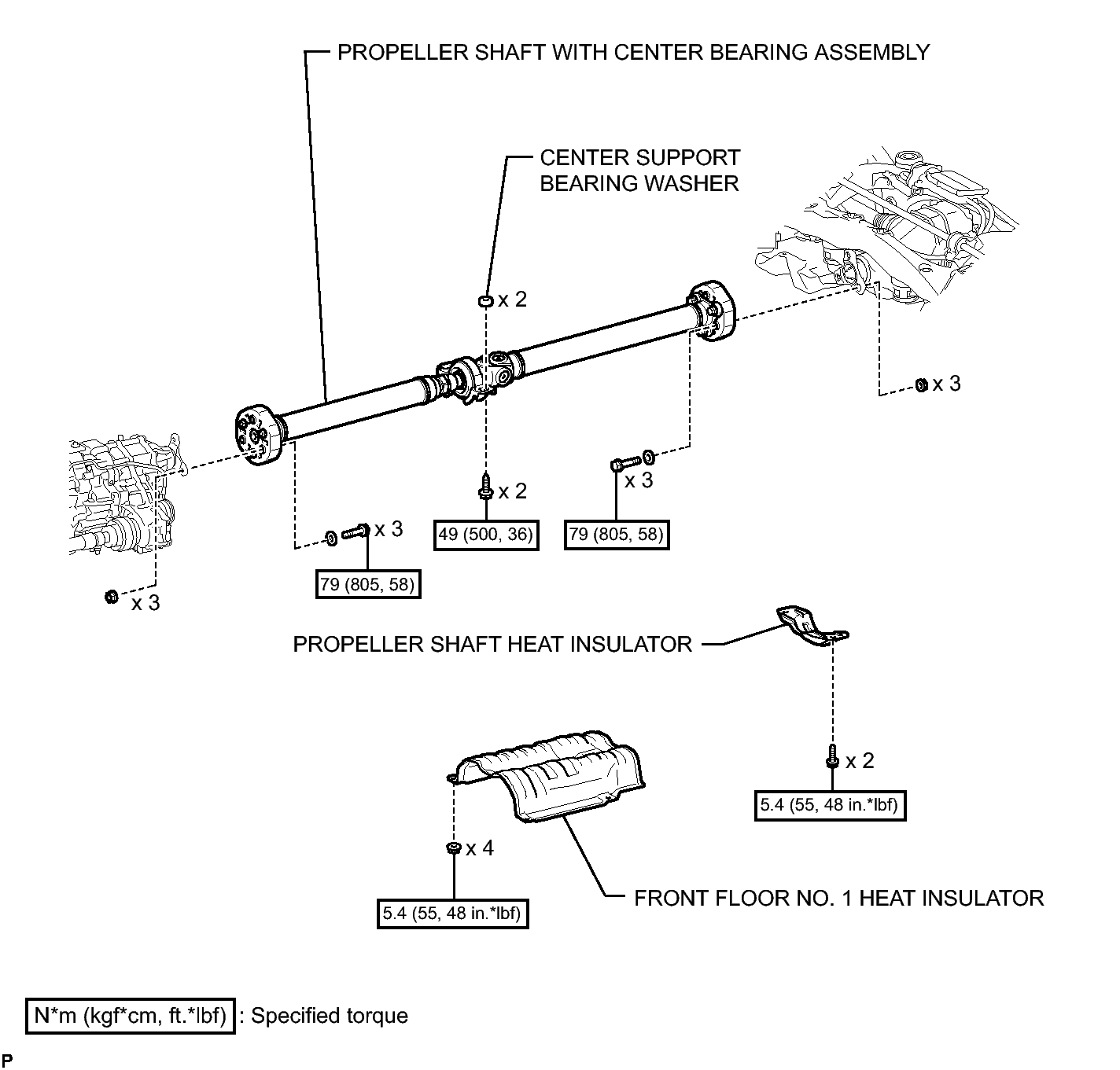

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (16 Of 21)
GTY129123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

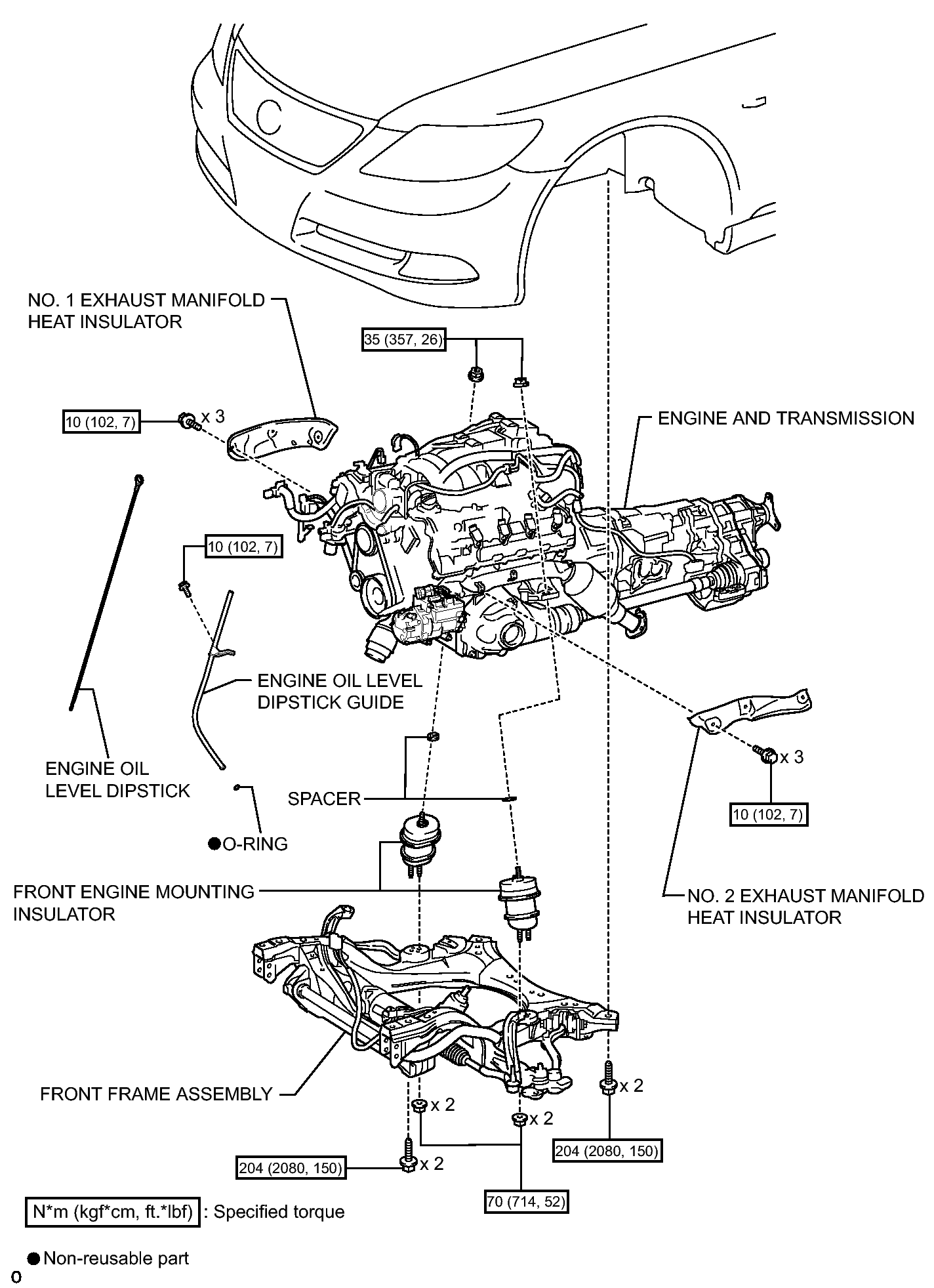

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (17 Of 21)
GTY148038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

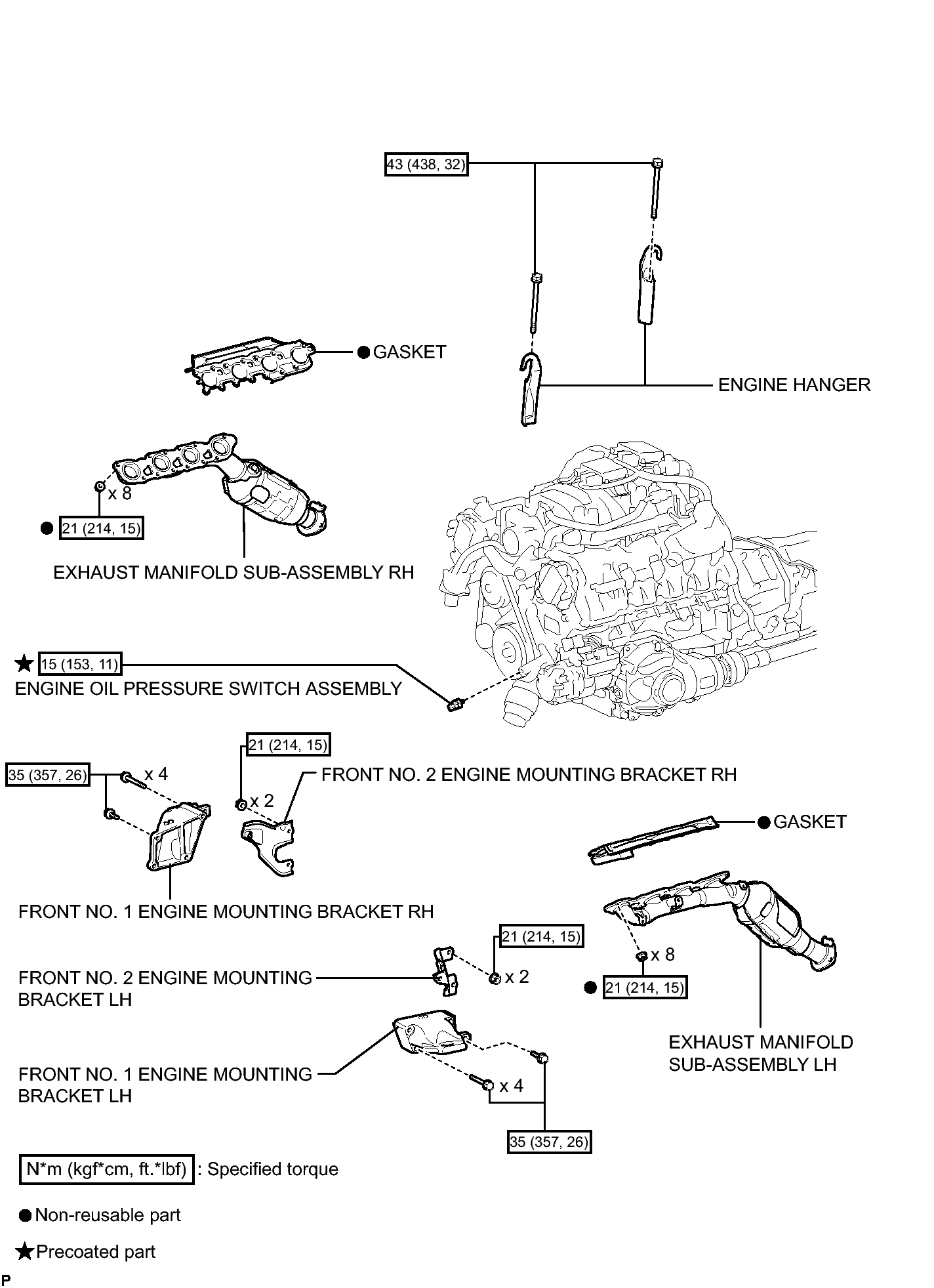

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (18 Of 21)
GTY148036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (19 Of 21)
GTY110184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

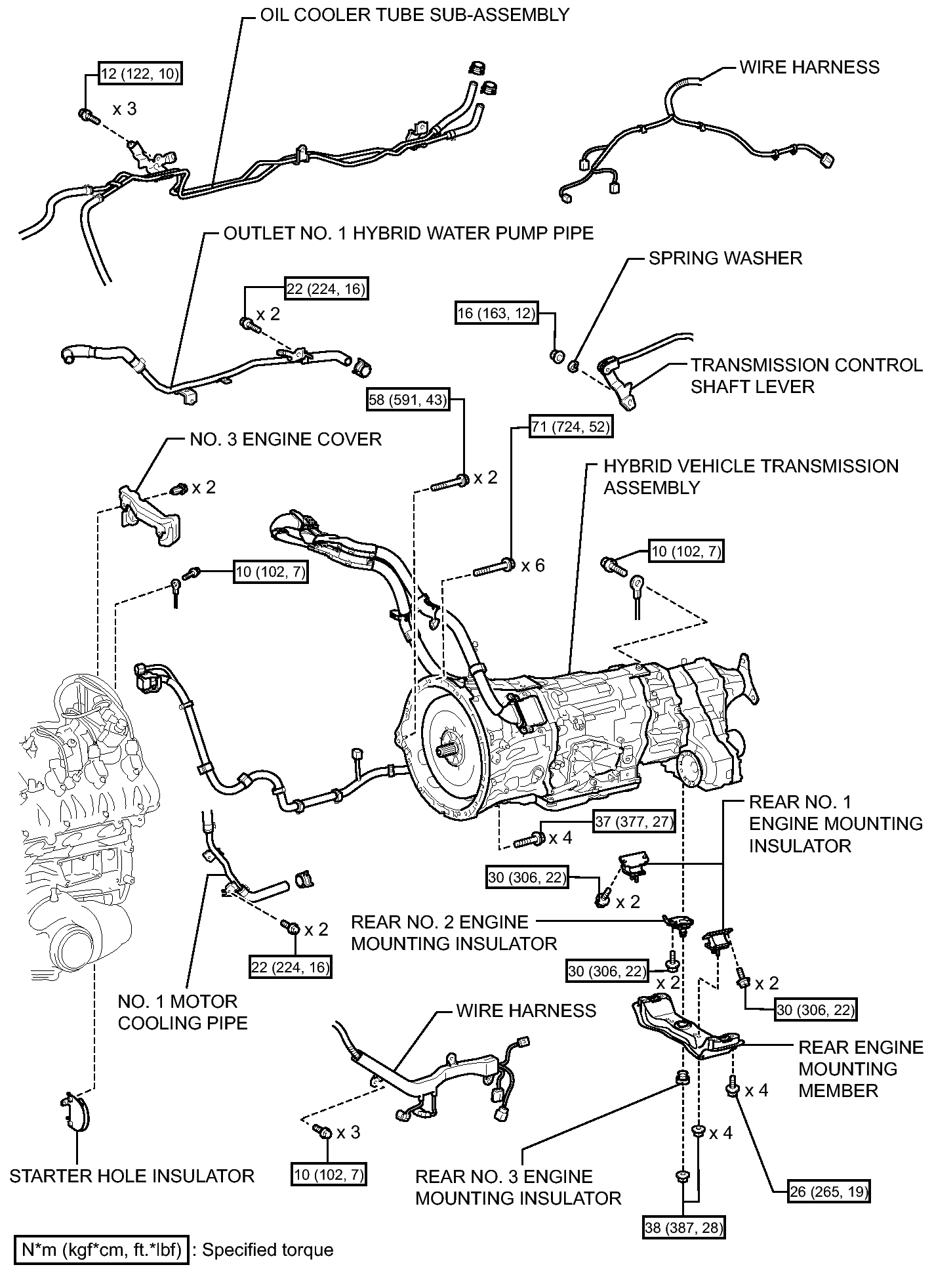

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (20 Of 21)
GTY148325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

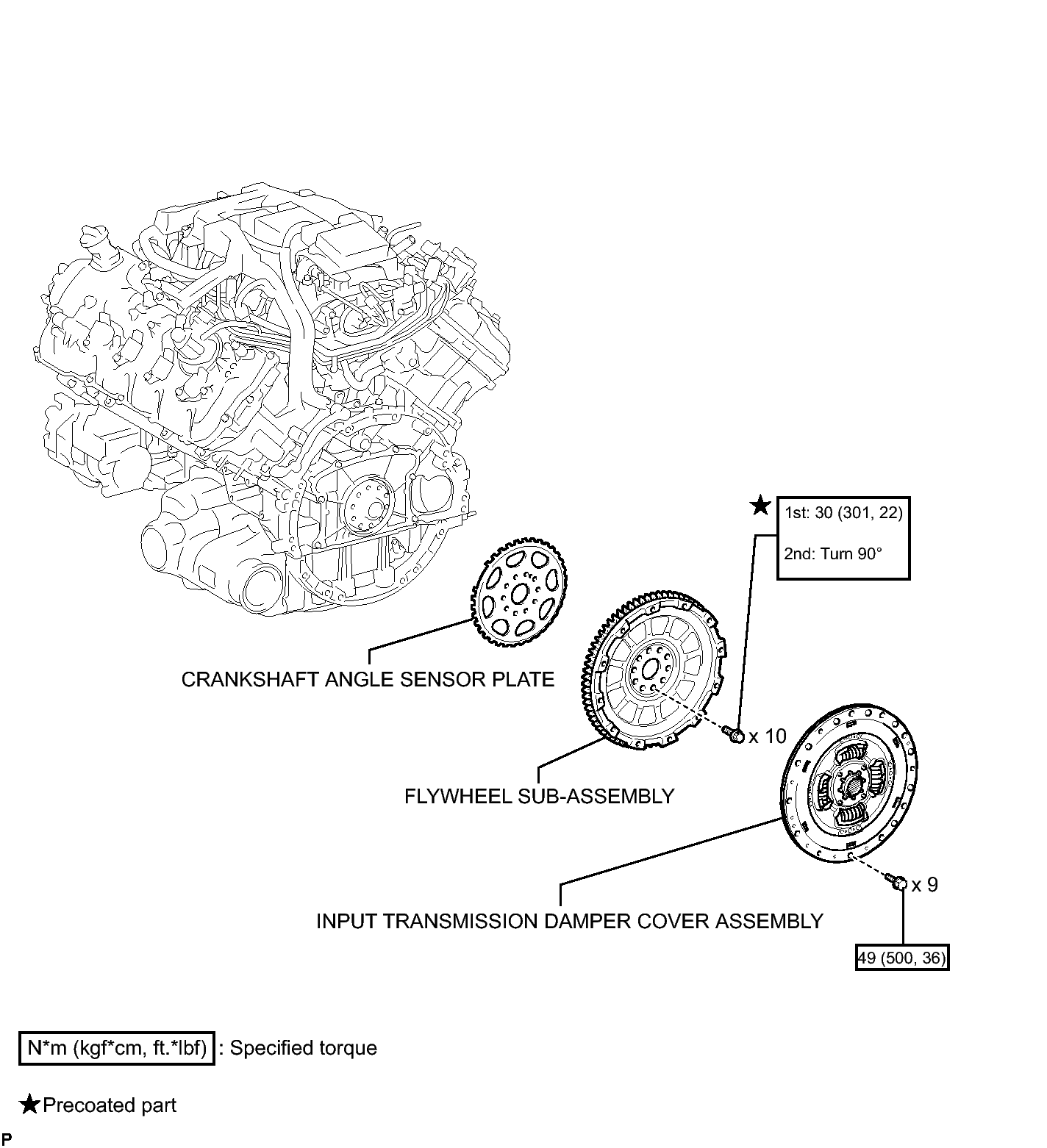

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (21 Of 21)
GTY126476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
