Mass Air Flow Meter: Components: Illustration

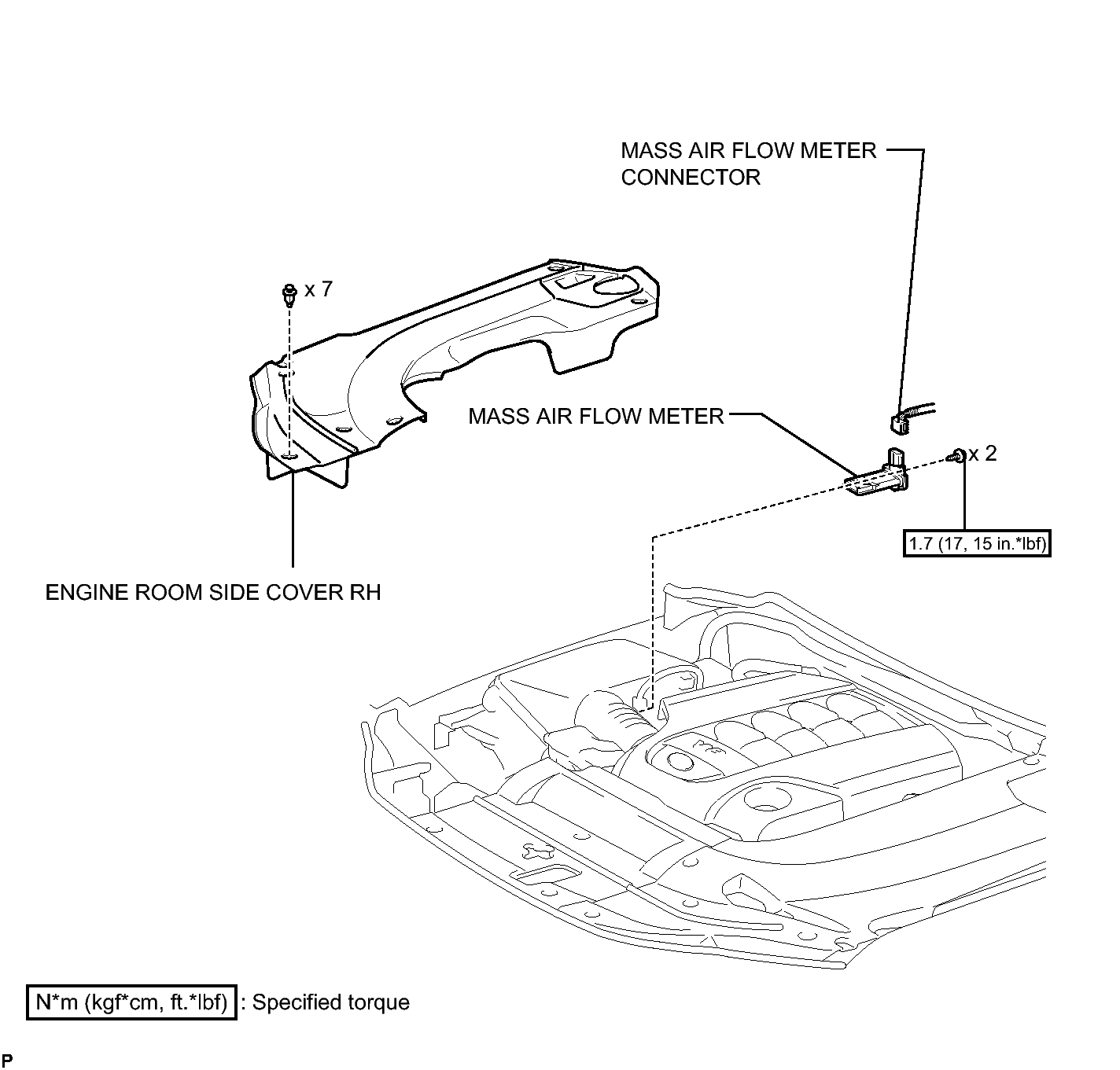

Fig 1: Identifying Mass Air Flow Meter Replacement Components With Torque Specifications
GTY120987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
