System Diagram

MOST NETWORK COMMUNICATION LINE

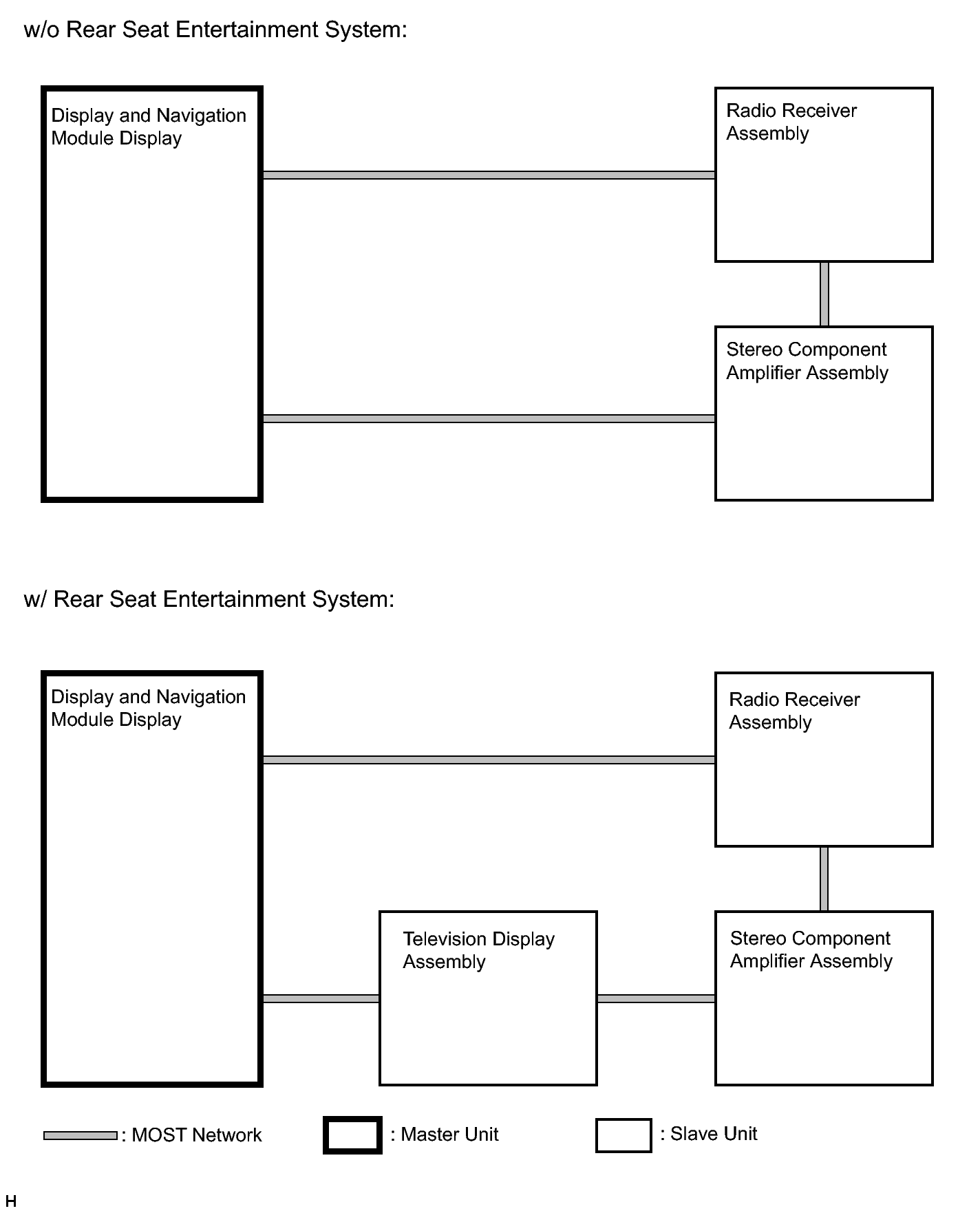

Fig 1: Identifying MOST Network Communication Line - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AVC-LAN COMMUNICATION LINE

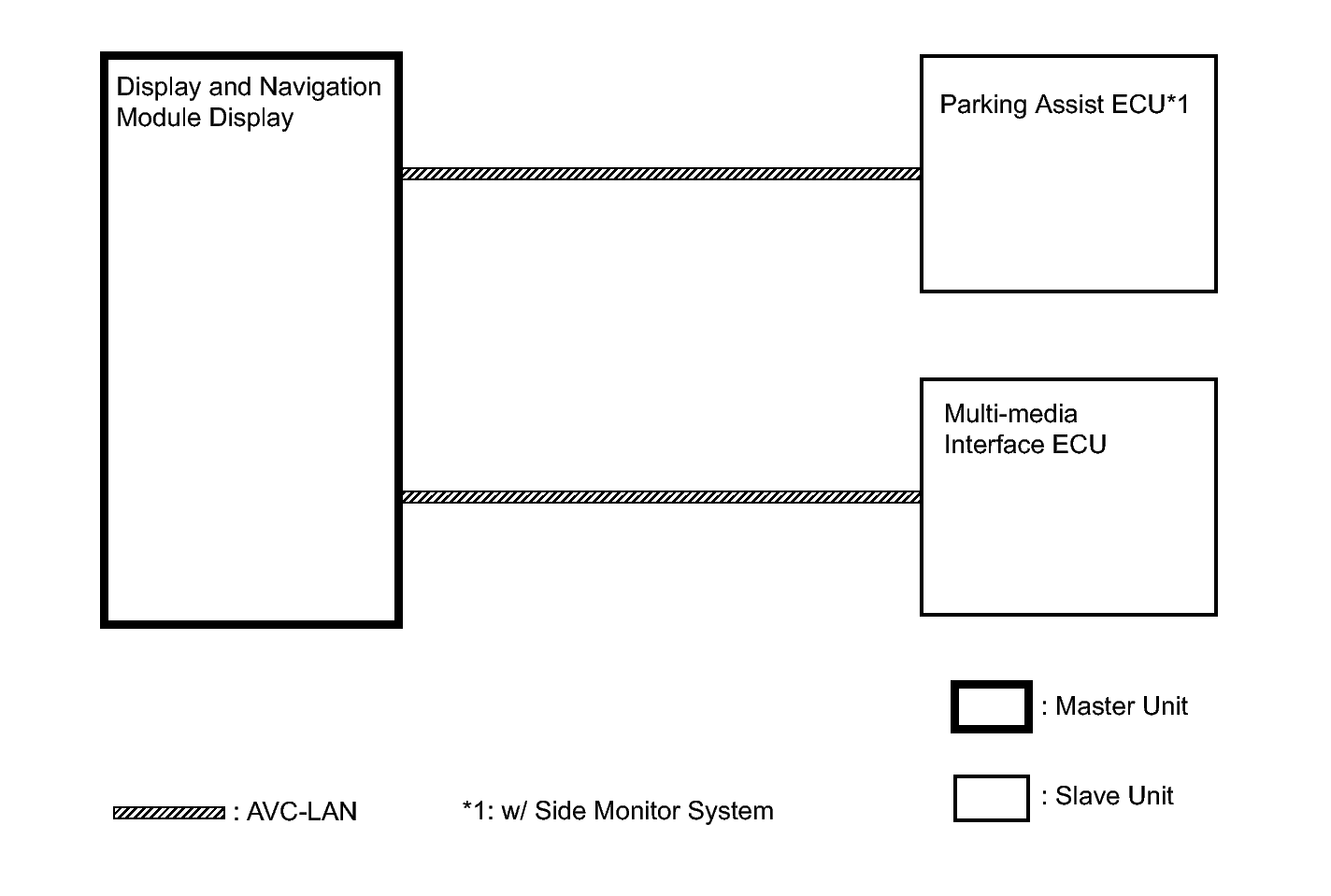

Fig 2: Identifying AVC-LAN Communication Line - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER

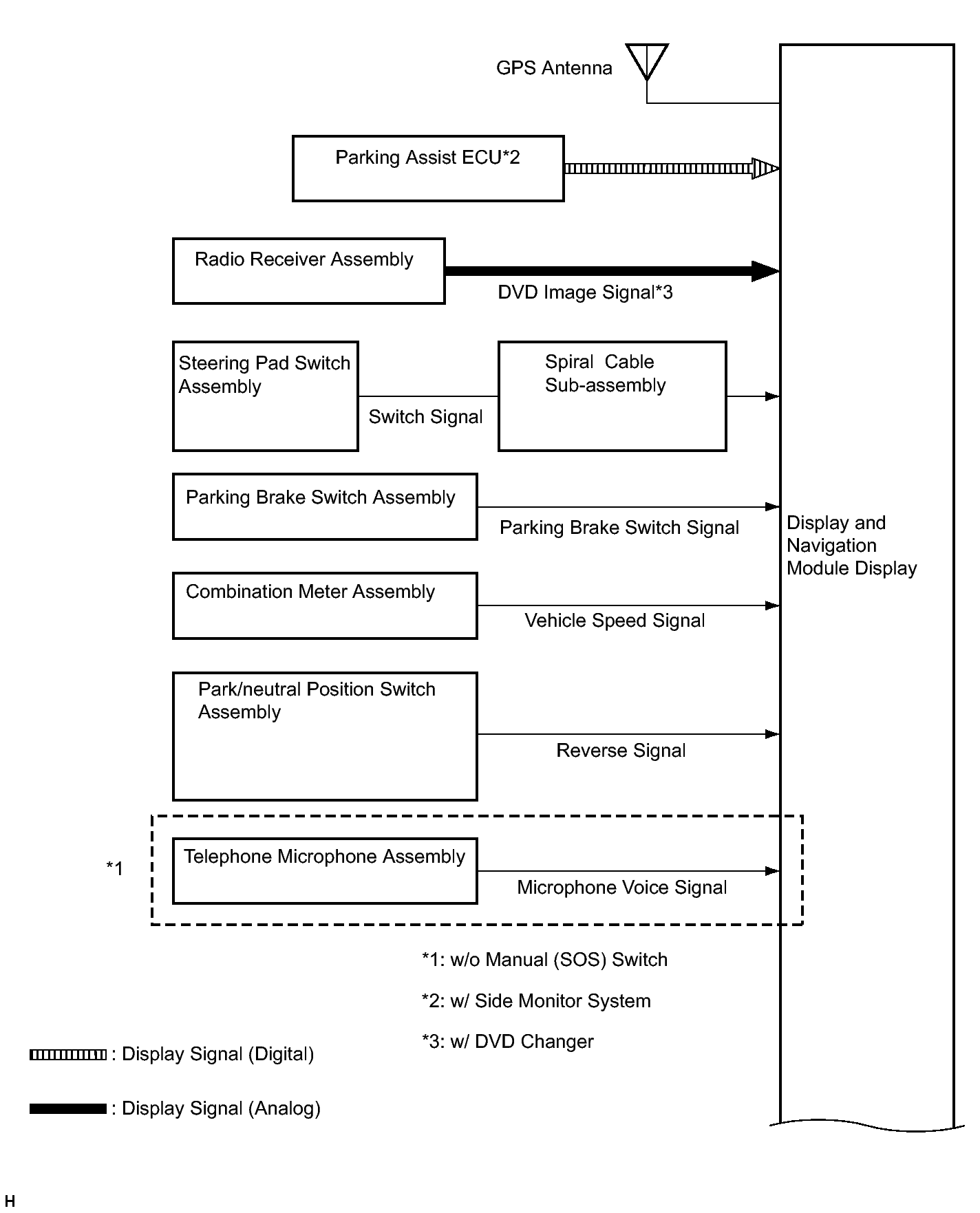

Fig 3: Identifying Navigation System - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

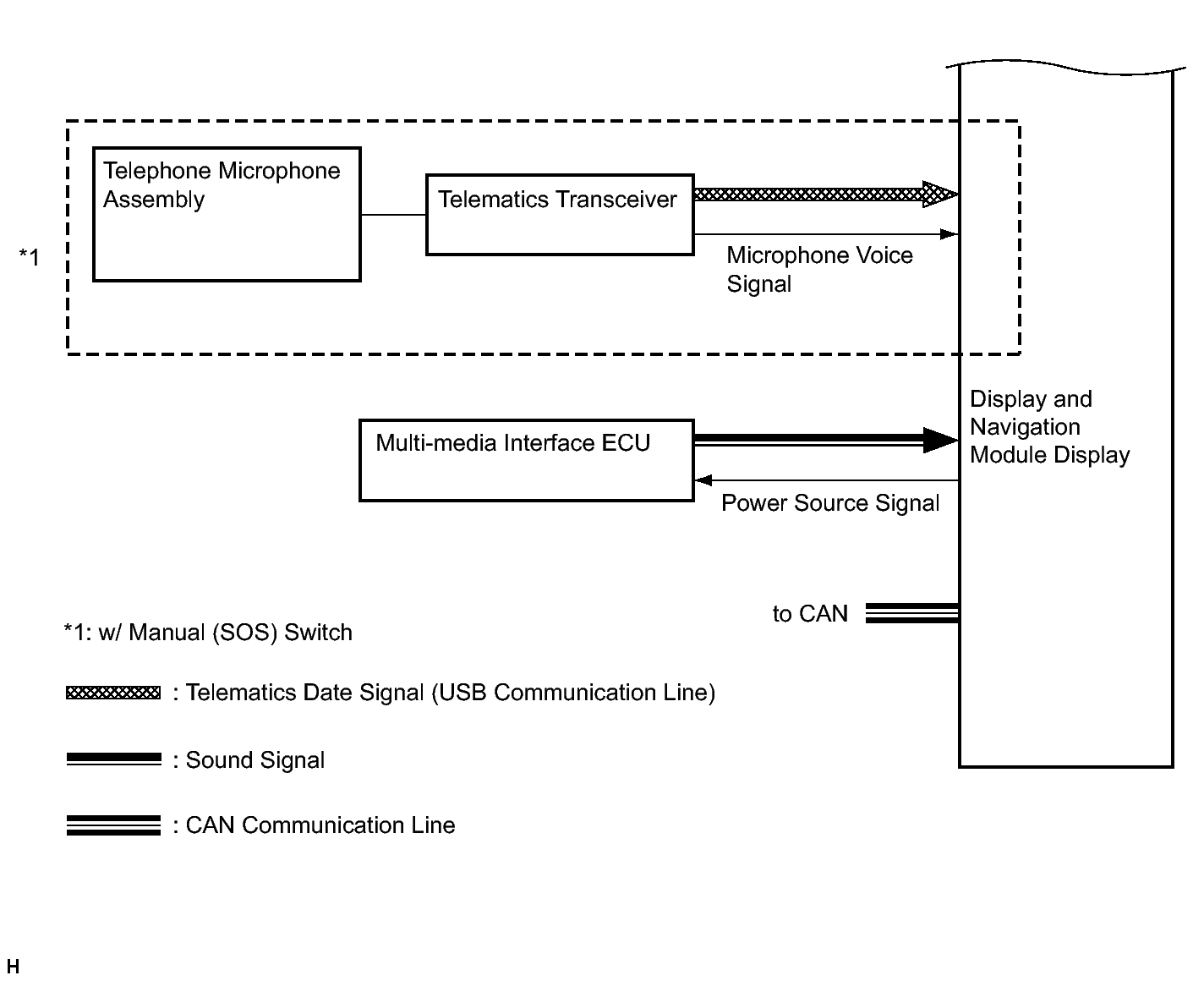

Fig 4: Identifying Navigation System - System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
