Condenser Fan: Notes

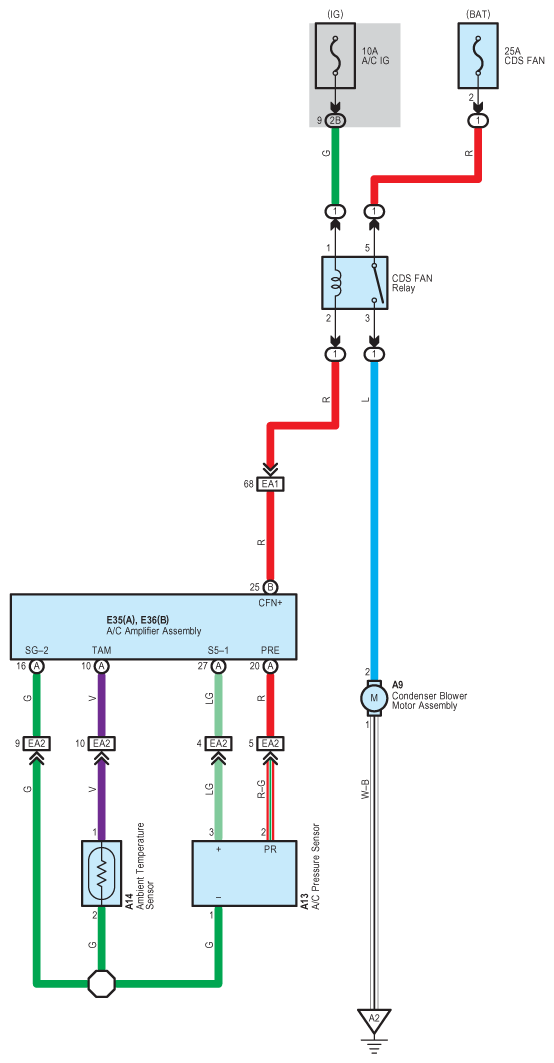

Fig 1: Condenser Fan - Circuit Diagram

G07575736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
