Sliding Roof: Notes

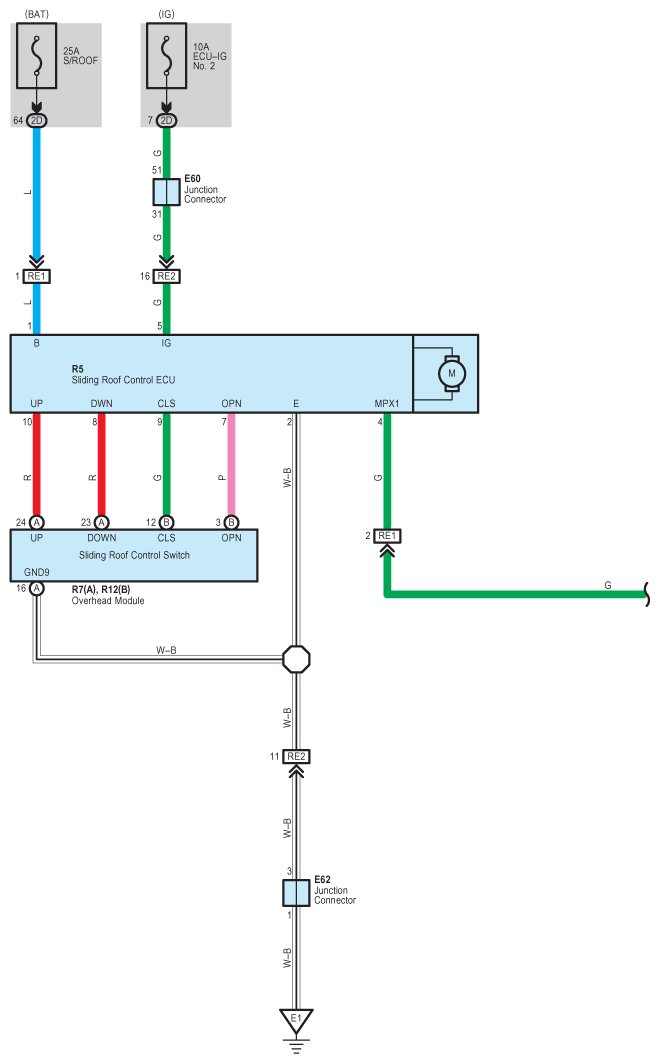

Fig 1: Sliding Roof - Circuit Diagram (1 Of 5)
G07575552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

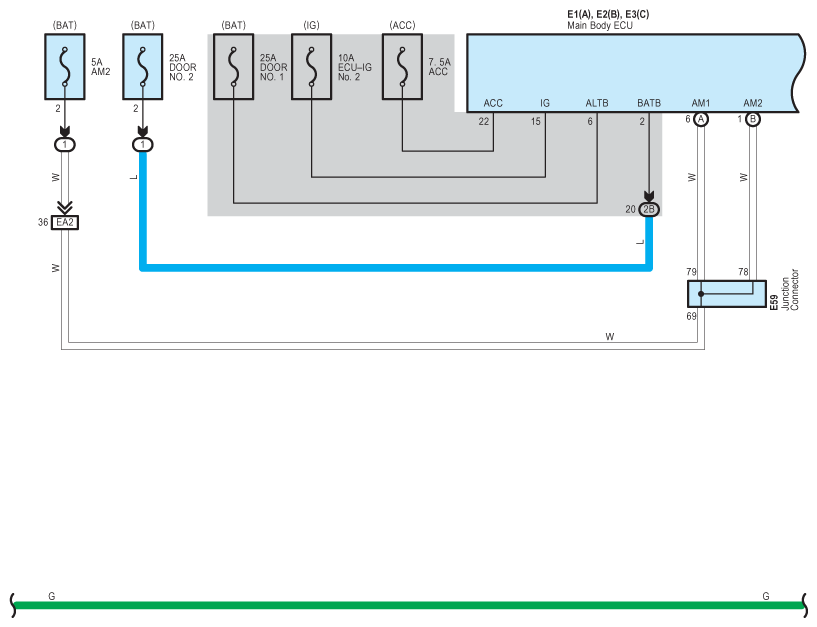

Fig 2: Sliding Roof - Circuit Diagram (2 Of 5)
G07575553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Sliding Roof - Circuit Diagram (3 Of 5)
G07575554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

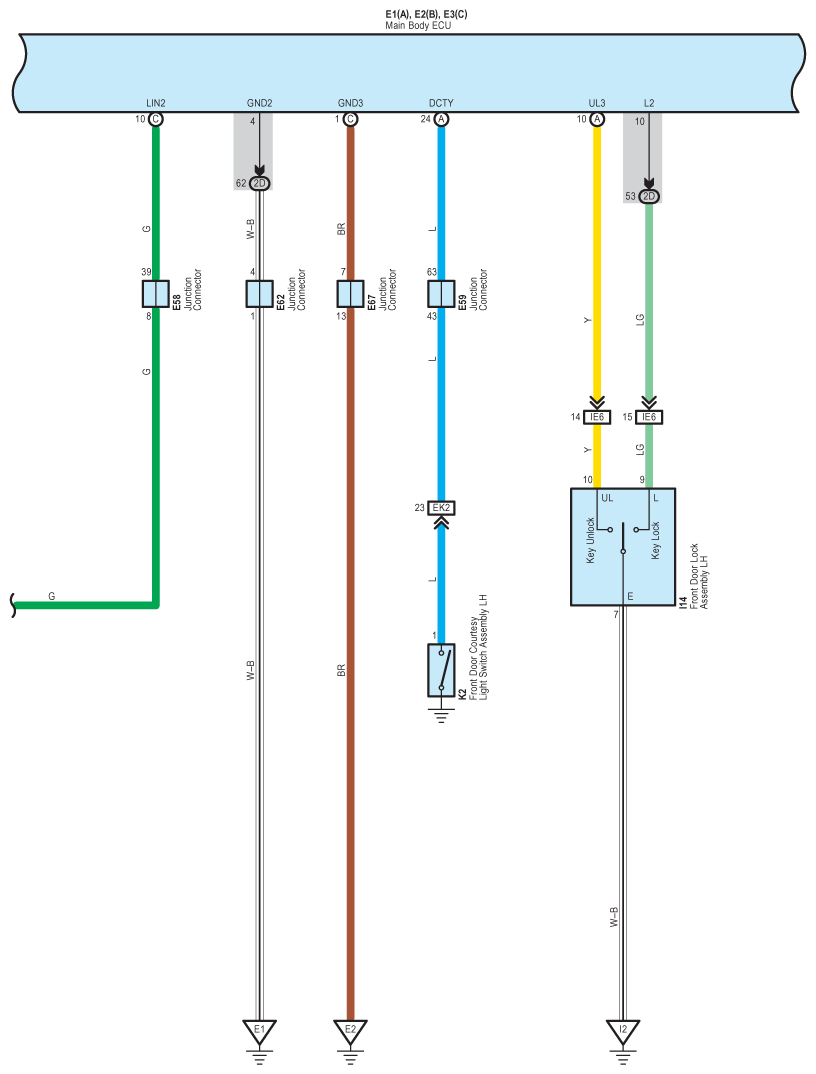

Fig 4: Sliding Roof - Circuit Diagram (4 Of 5)
G07575555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

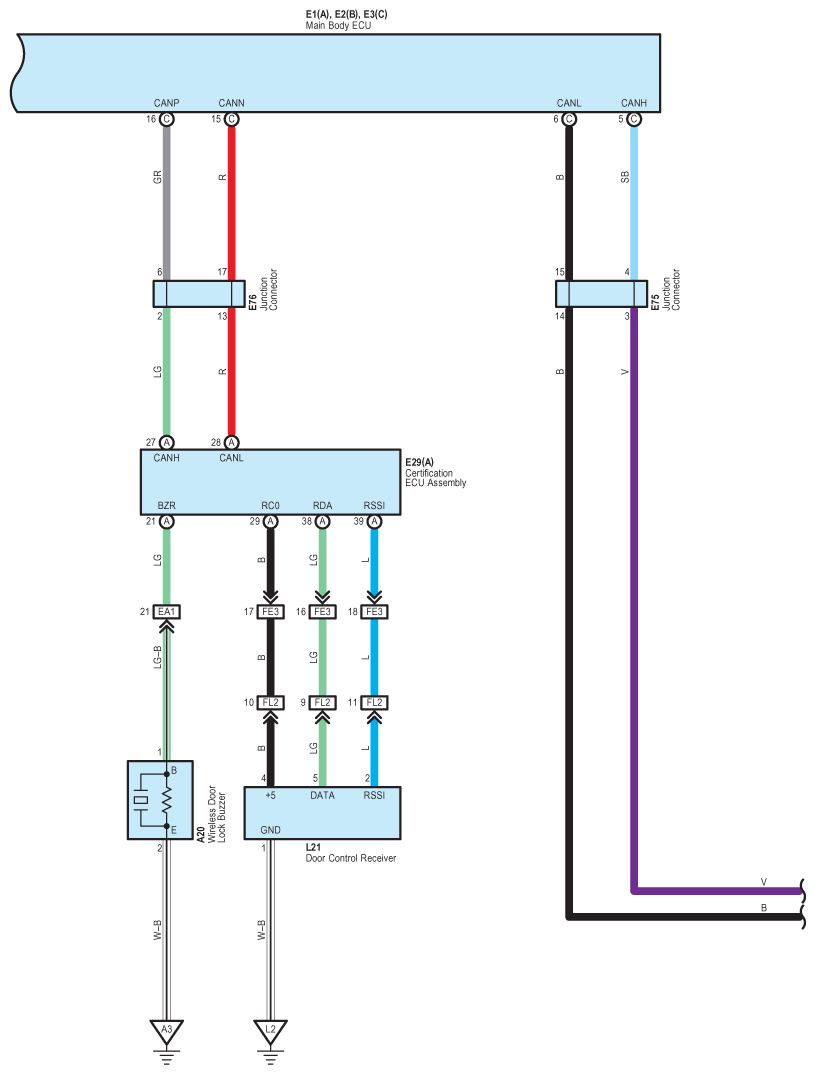

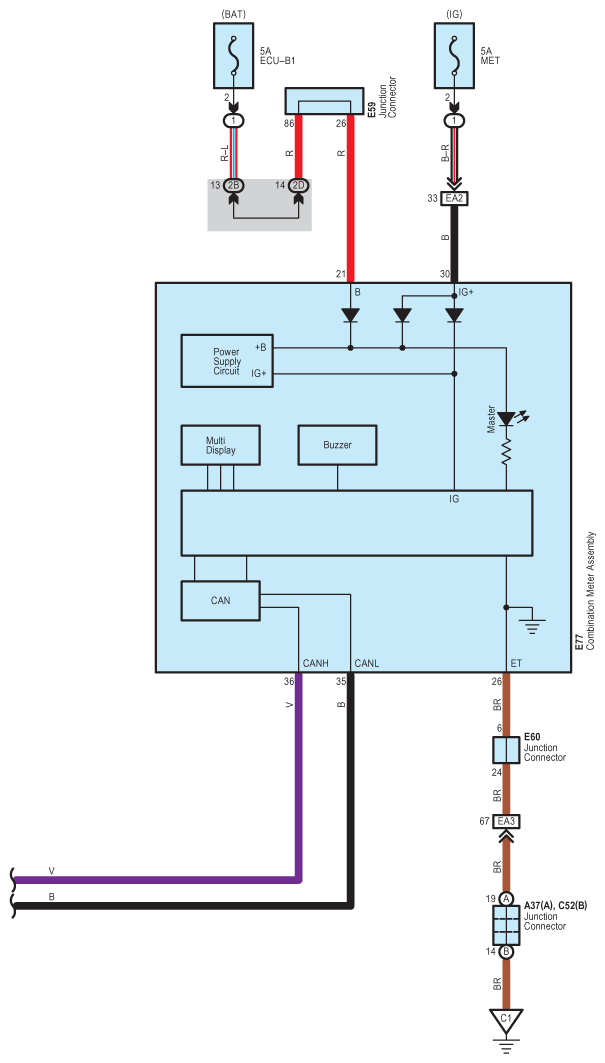

Fig 5: Sliding Roof - Circuit Diagram (5 Of 5)
G07575556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
