System Diagram

  1. FUEL FLOW DIAGRAM

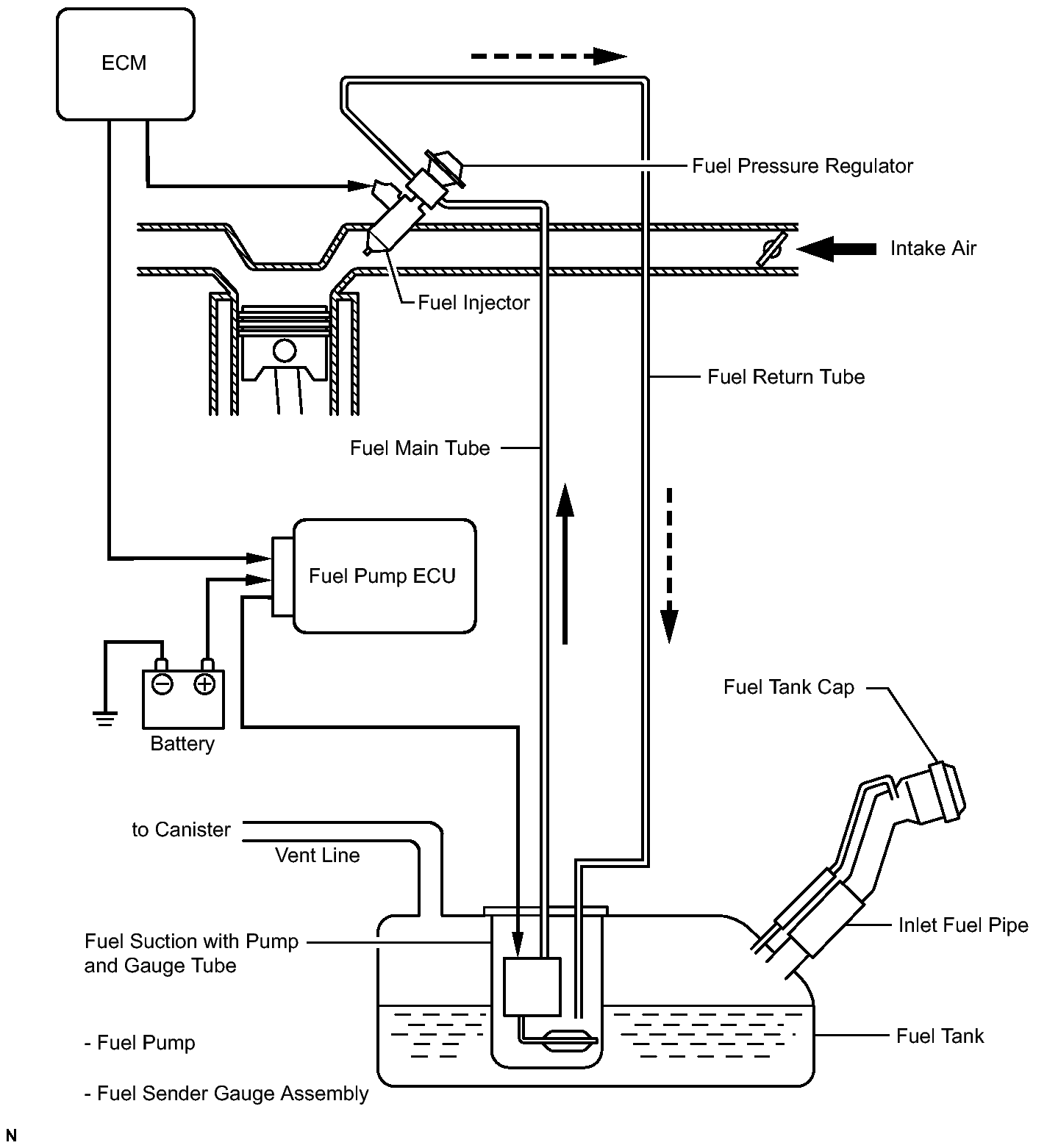

    Fig 1: Fuel Flow System Diagram
    GTY123941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM

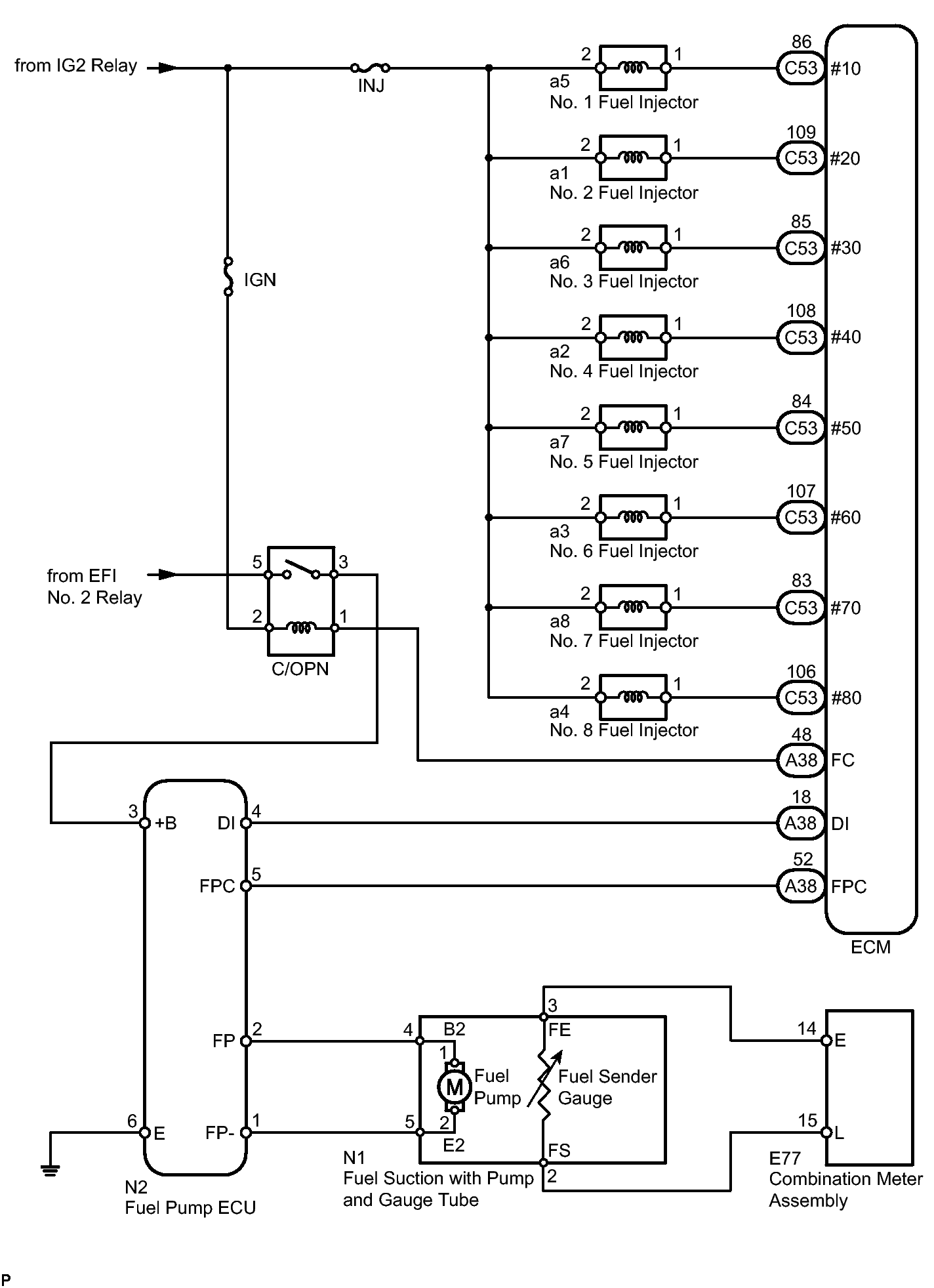

    Fig 2: Electrical Control System Wiring Diagram
    GTY120971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
