Oil Pressure Sensor: Components: Illustration

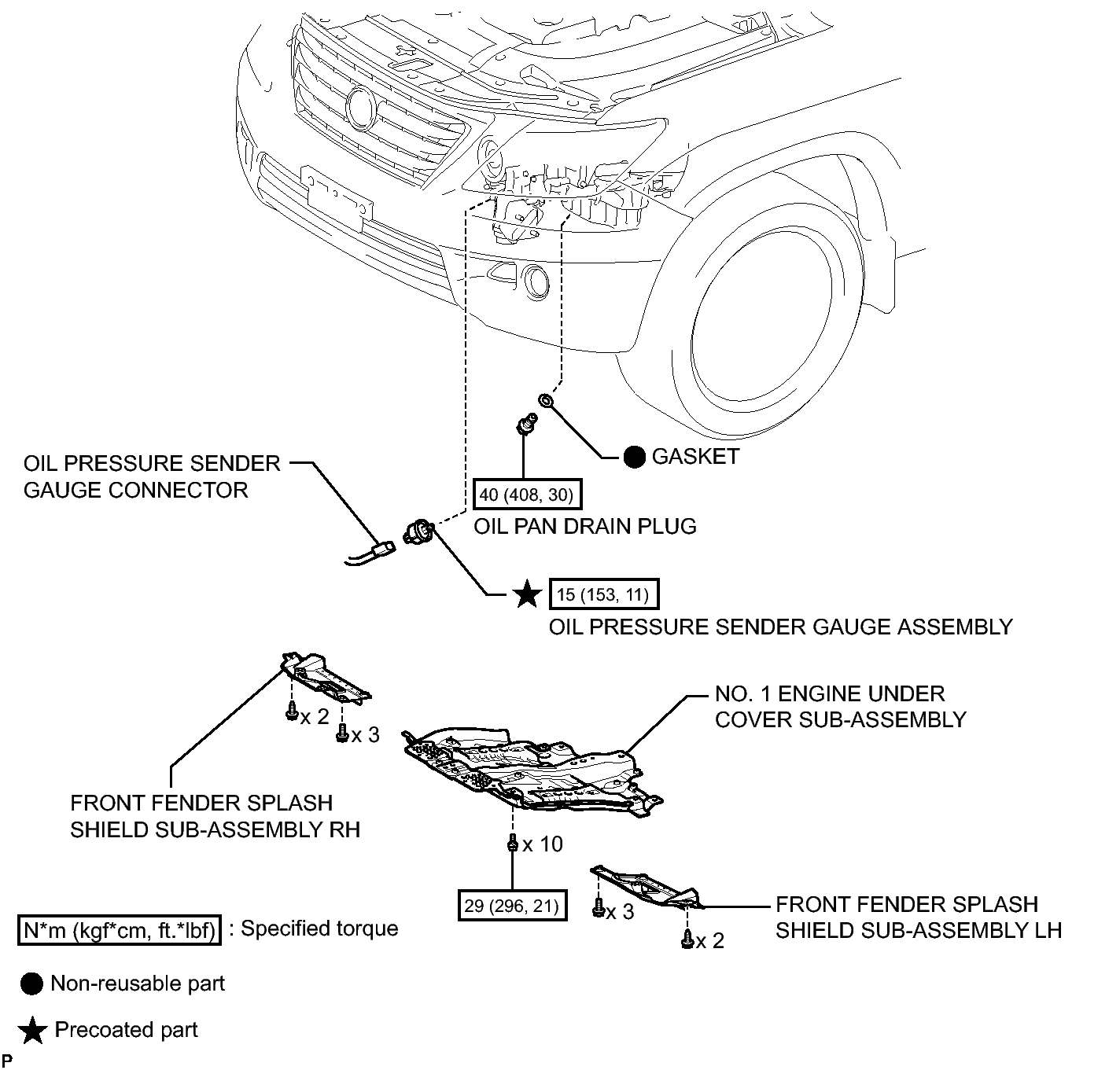

Fig 1: Identifying Oil Pressure Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
