Parts Location: Illustration

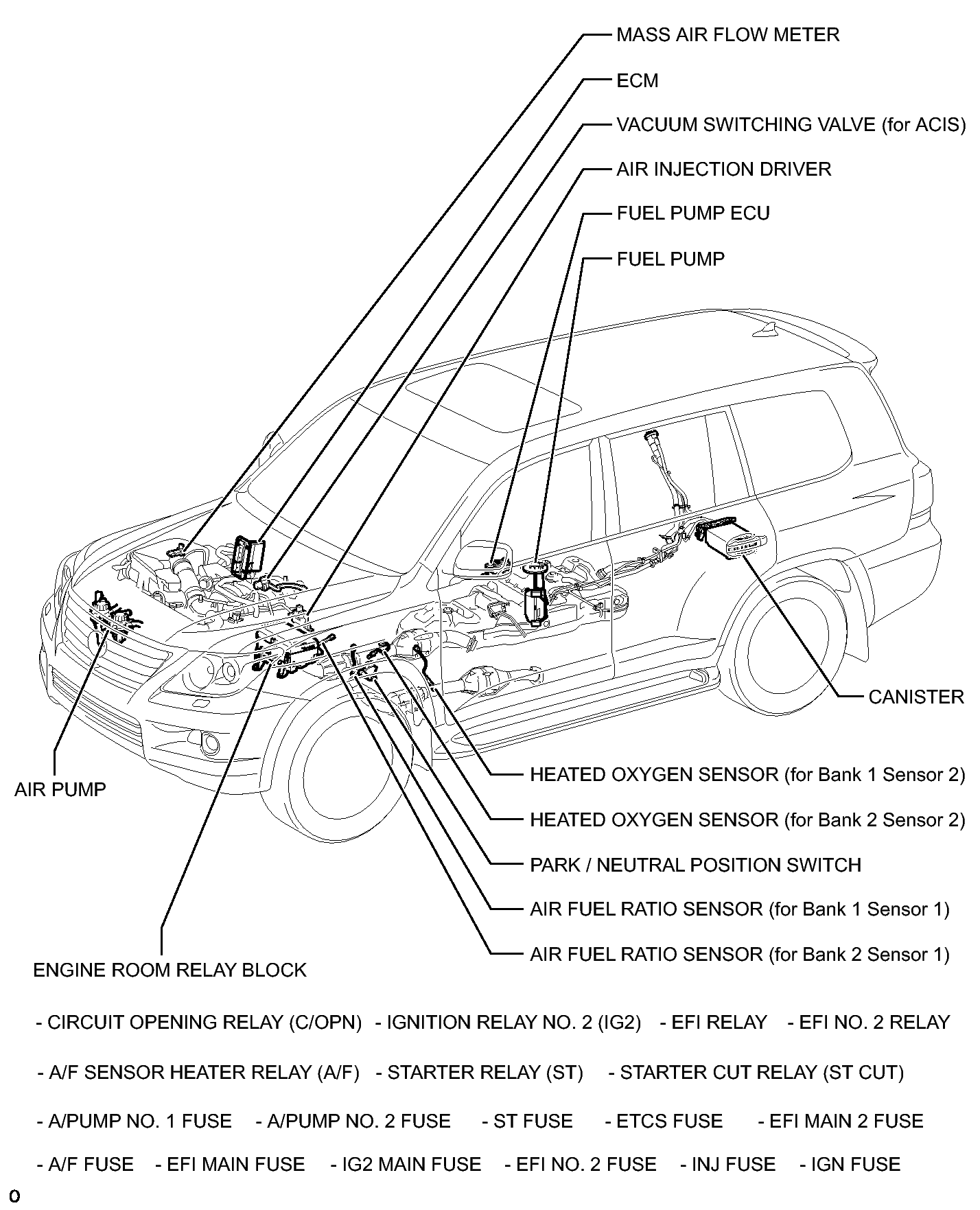

Fig 1: Identifying Engine Control System Components Location (1 Of 5)
GTY358316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

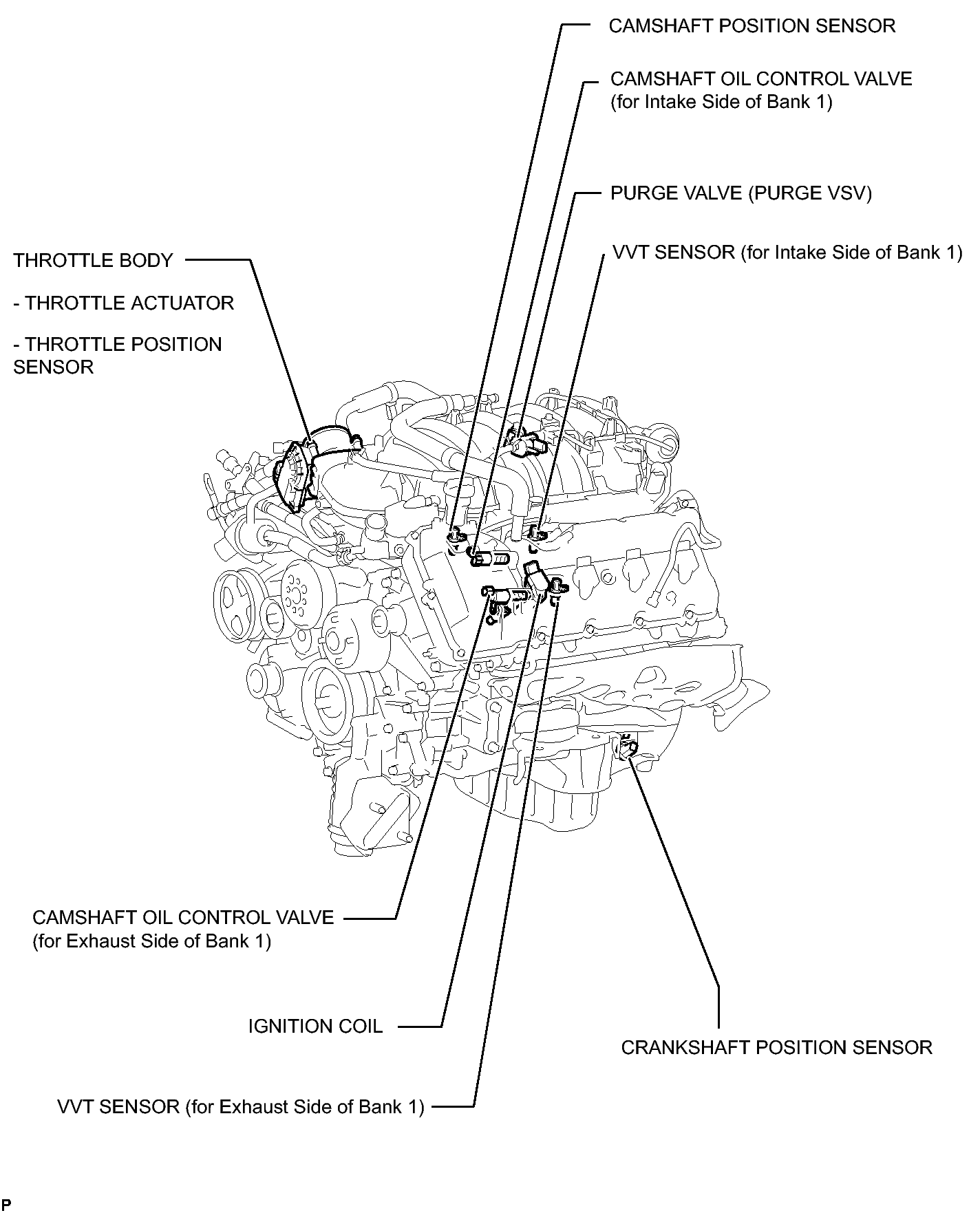

Fig 1: Identifying Engine Control System Components Location (2 Of 5)
GTY356529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

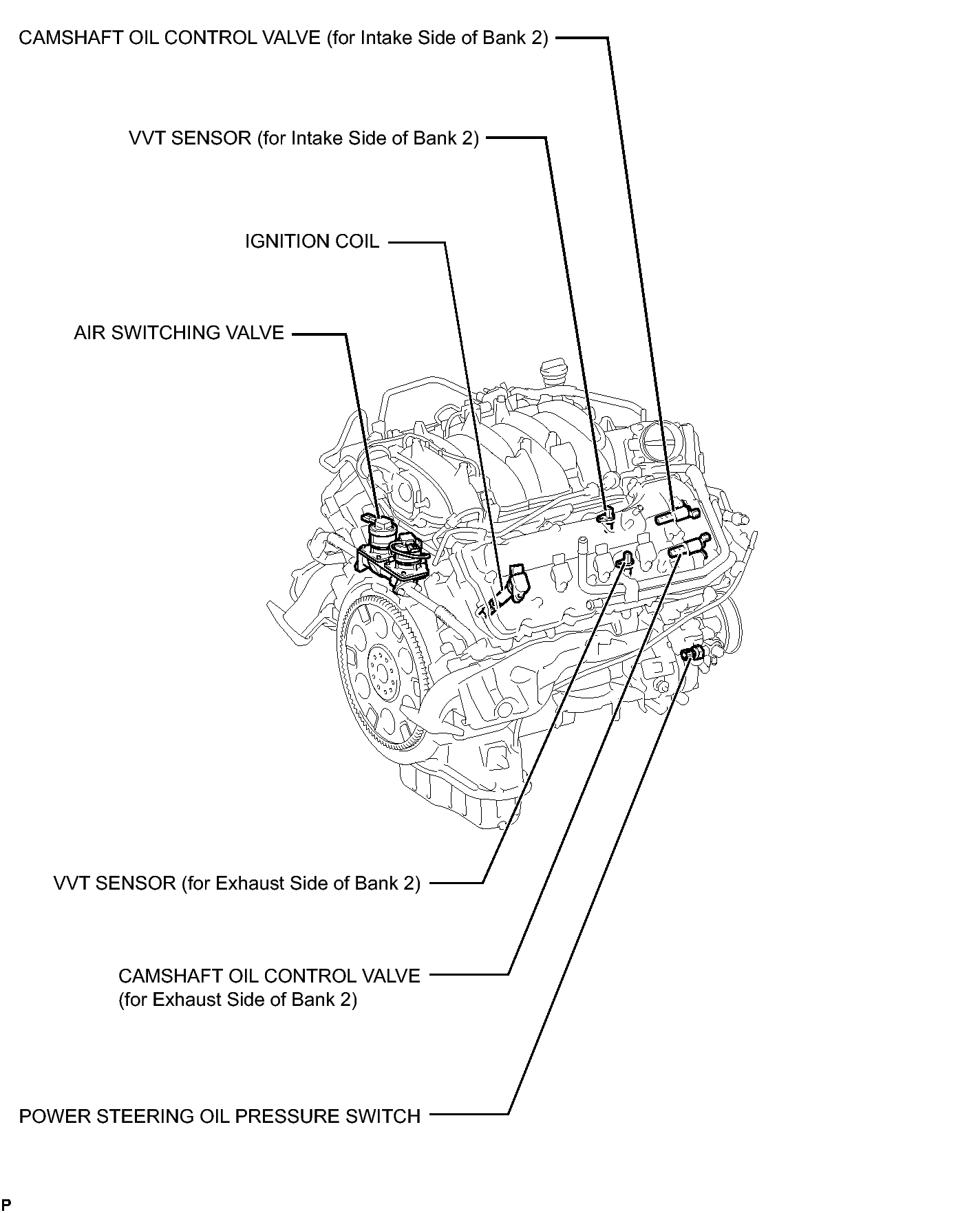

Fig 1: Identifying Engine Control System Components Location (3 Of 5)
GTY351088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

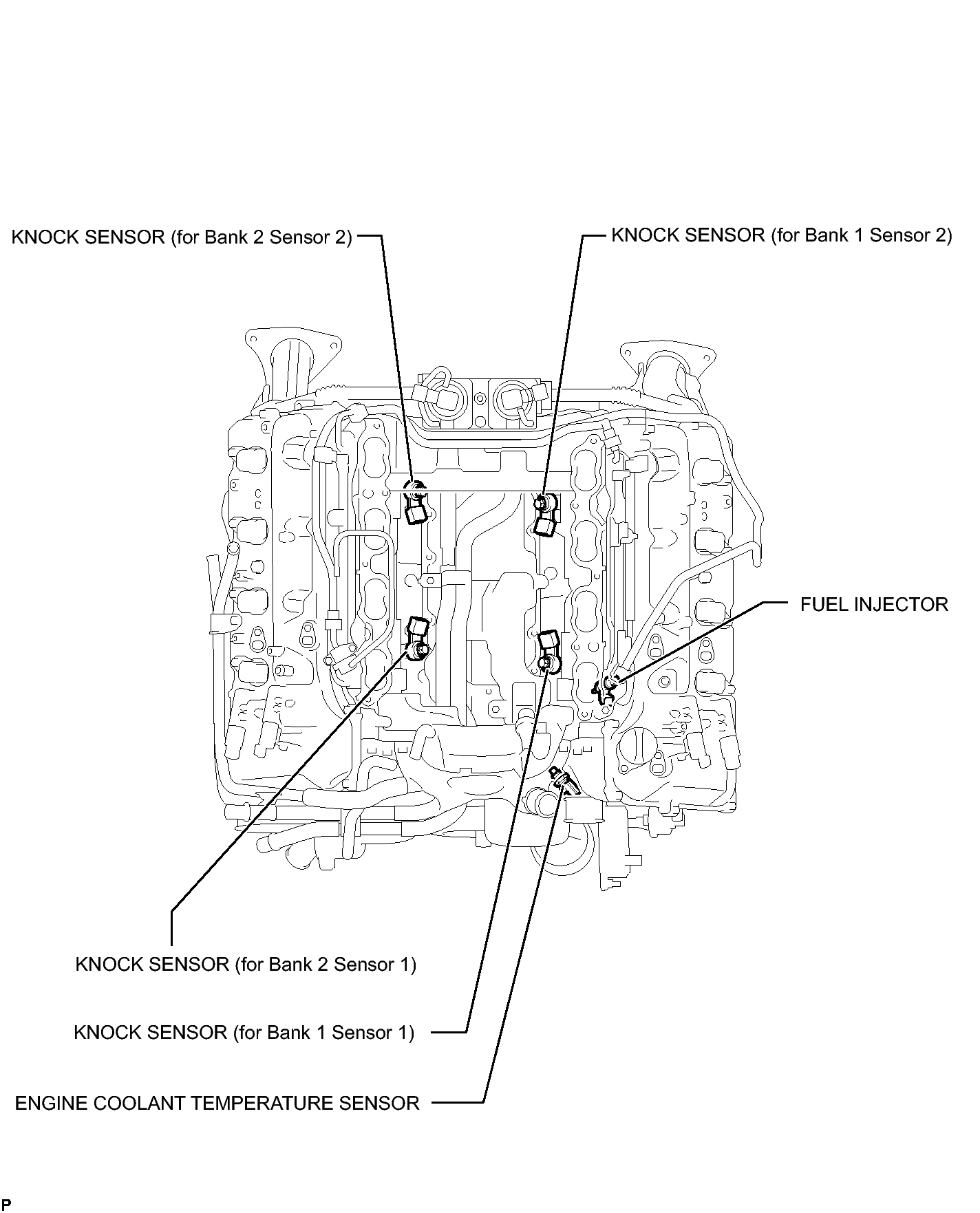

Fig 1: Identifying Engine Control System Components Location (4 Of 5)
GTY353974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

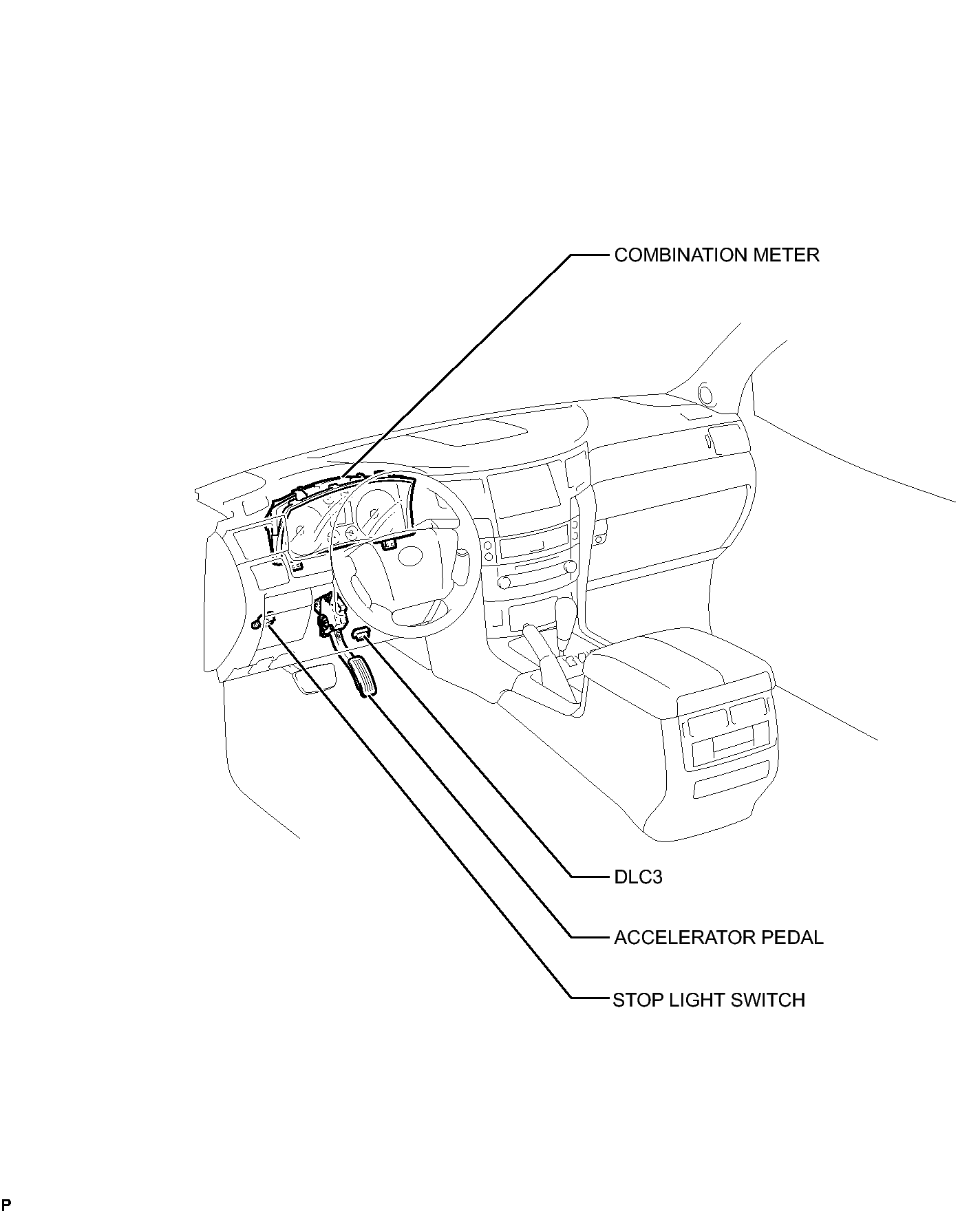

Fig 1: Identifying Engine Control System Components Location (5 Of 5)
GTY348222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
