System Diagram

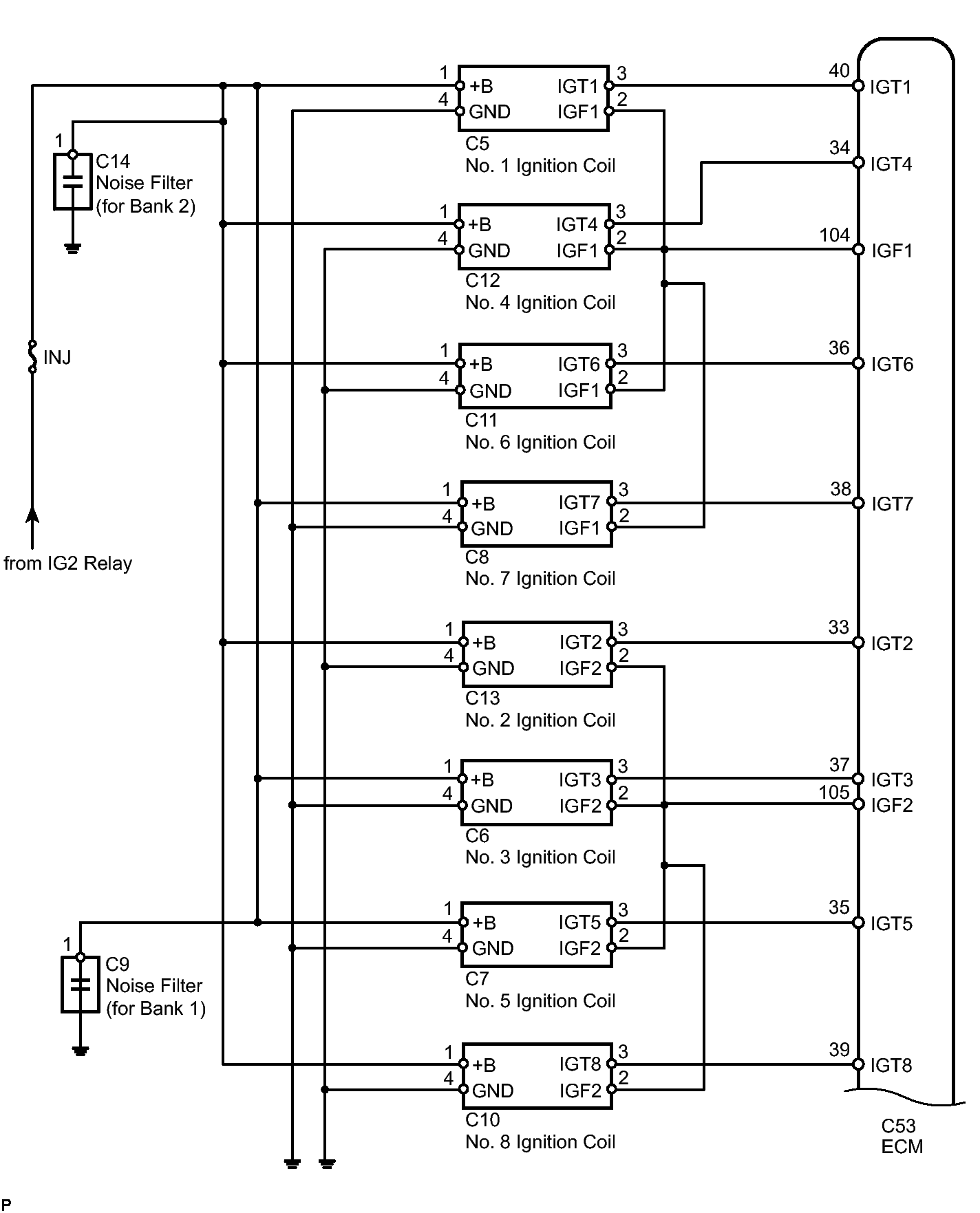

Fig 1: Ignition System Wiring Diagram (1 Of 2)
GTY148590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

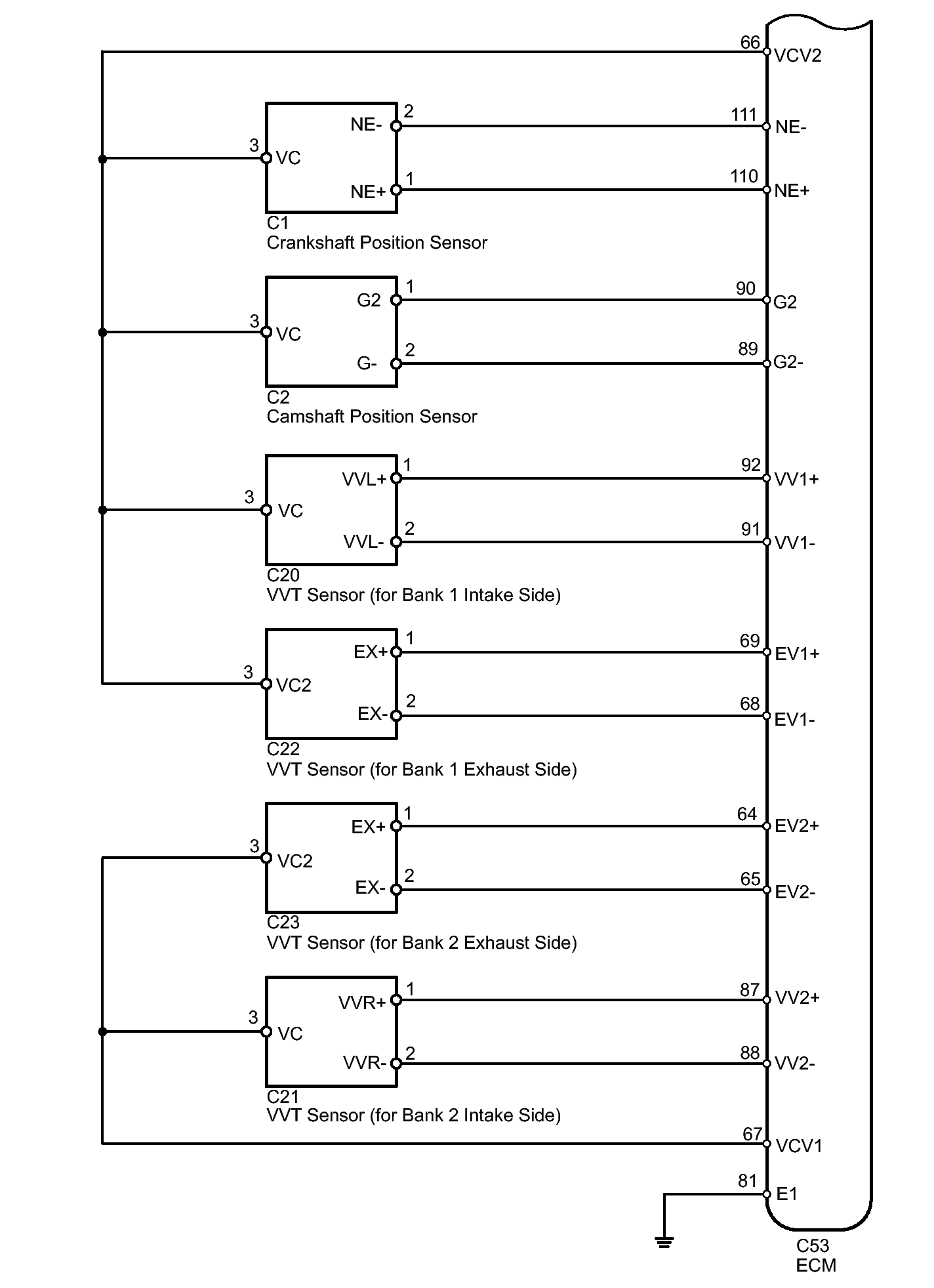

Fig 2: Ignition System Wiring Diagram (2 Of 2)
GTY144124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
