Parking Assist (Rear View Monitor w/o LEXUS Navigation System): Notes

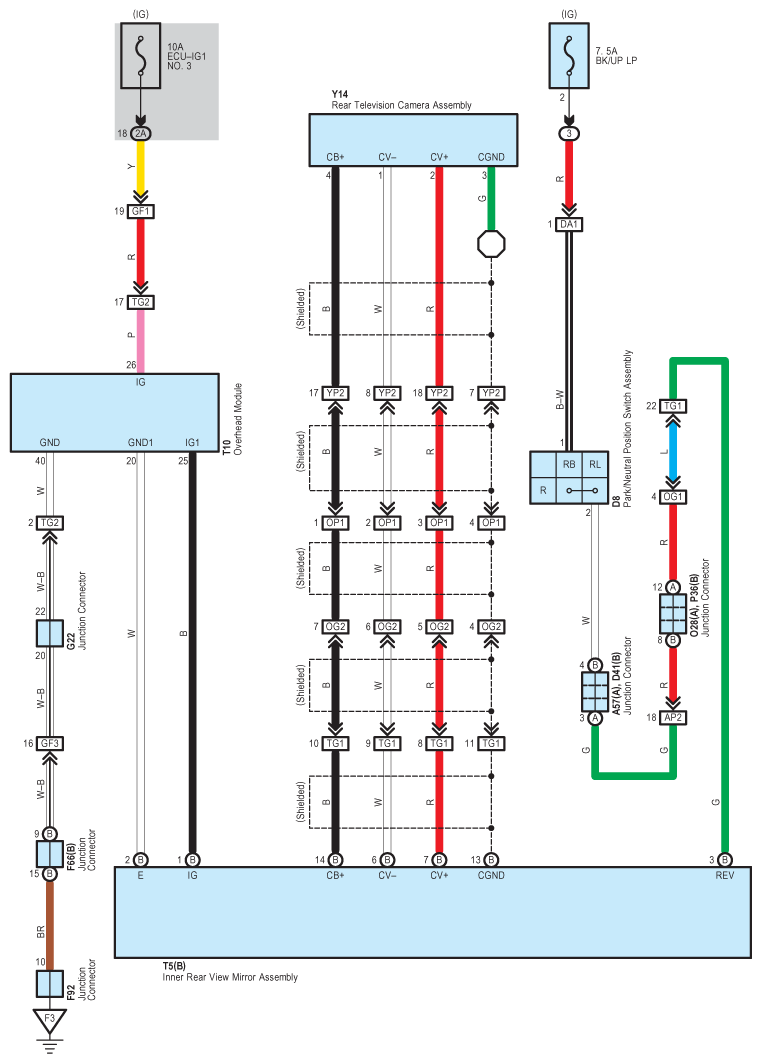

Fig 1: Parking Assist (Rear View Monitor W/O Lexus Navigation System) - Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
