VACUUM SWITCHING VALVE (for Engine Mounting)
›
Components
›
Illustration
VACUUM SWITCHING VALVE (for Engine Mounting): Components: Illustration
Fig 1: Identifying Vacuum Switching Valve (For Engine Mounting) Replacement Components (1 of 2) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

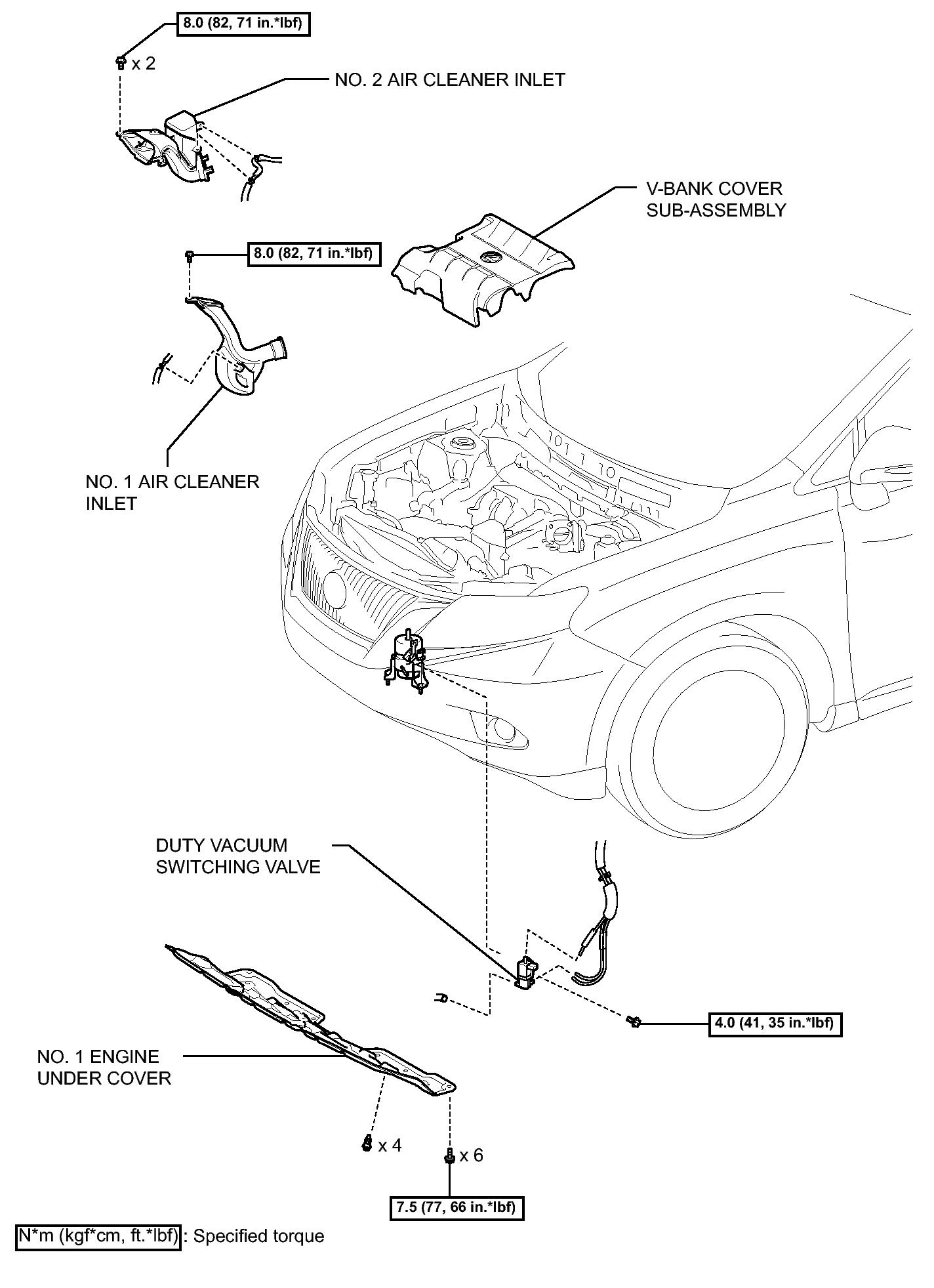

Fig 1: Identifying Vacuum Switching Valve (For Engine Mounting) Replacement Components (2 of 2) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
