Cooling Fan: Notes

WARNING: This page is about a different car, the 2010 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

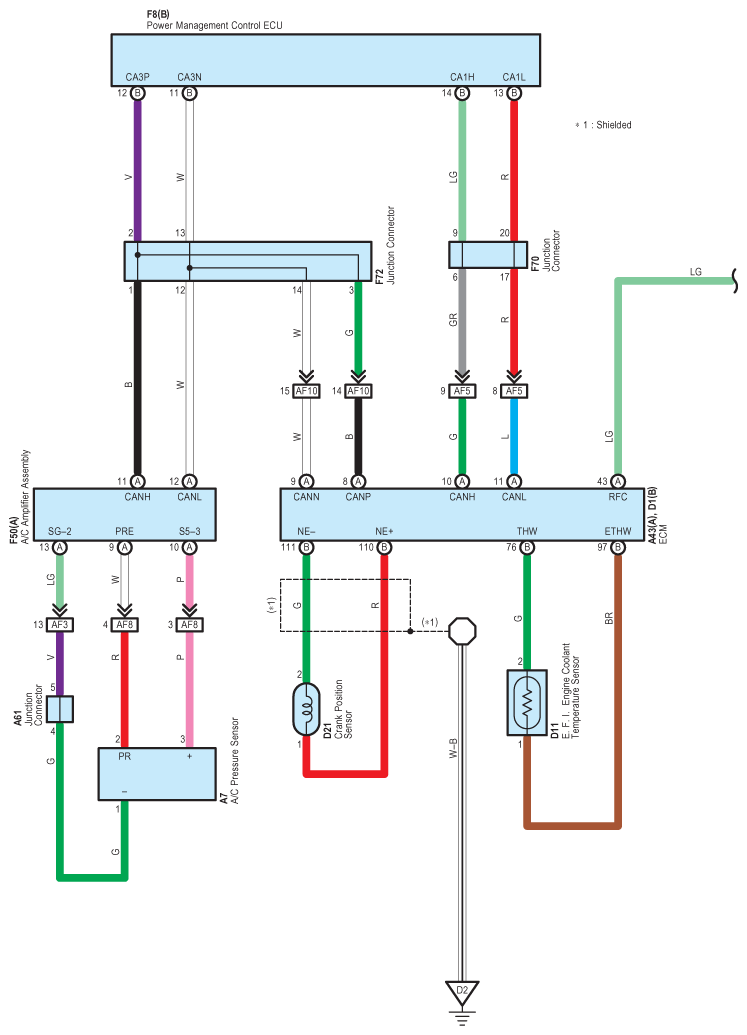

Fig 1: Cooling Fan - Circuit Diagram (1 Of 2)
G07574030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

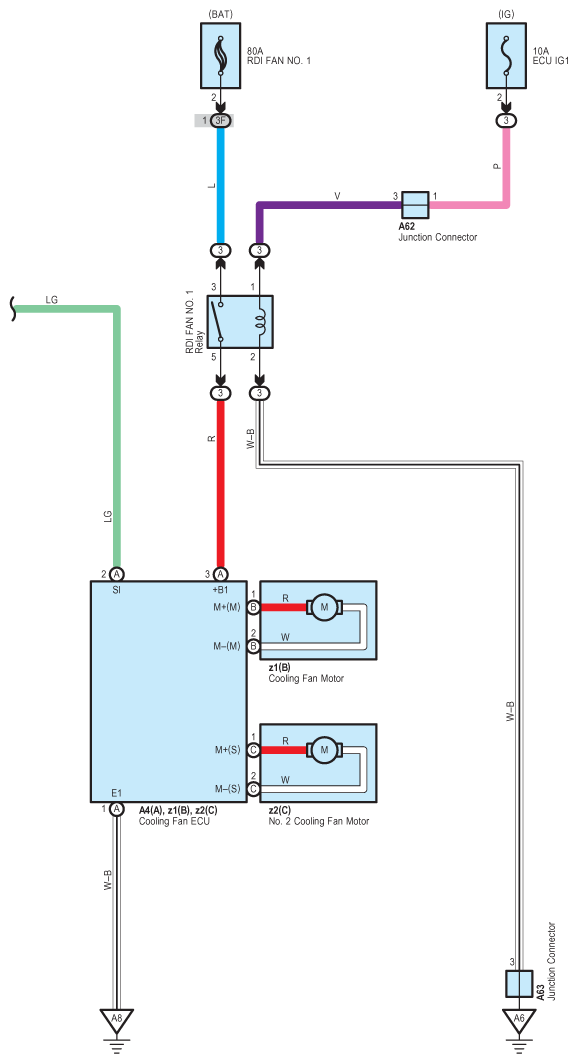

Fig 2: Cooling Fan - Circuit Diagram (2 Of 2)
G07574031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
