Battery System (Service Information): Battery: Installation: Installation

INSTALL AUXILIARY BATTERY
1. Install the battery.
2. Install the battery insulator.
3. Connect the battery ventilation hose to the battery without kinking it.

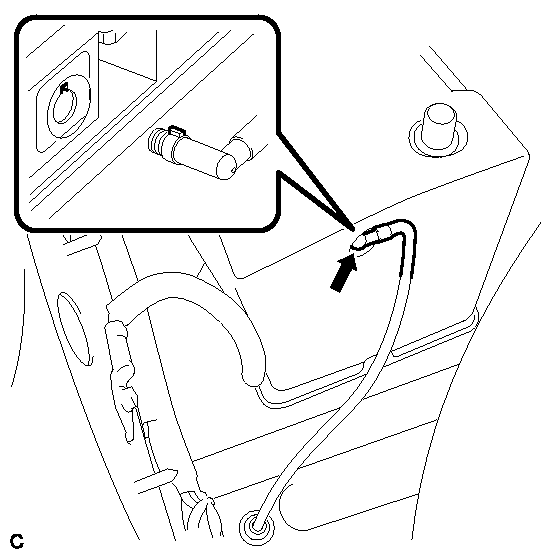

  Fig 1: Identifying Battery Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Push in the battery ventilation hose to the battery until a click sound is heard.
4. Install the battery clamp with the bolt and nut.

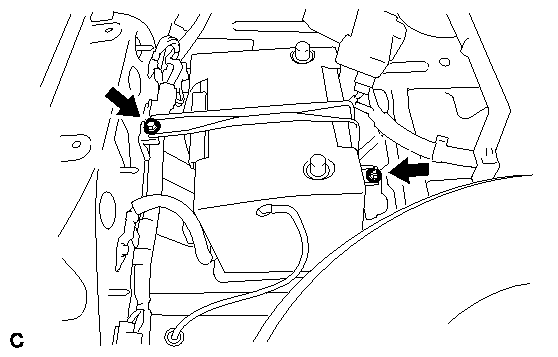

  Fig 2: Location of Nut And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Nut

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Bolt

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
5. Install the positive (+) battery terminal with the nut.

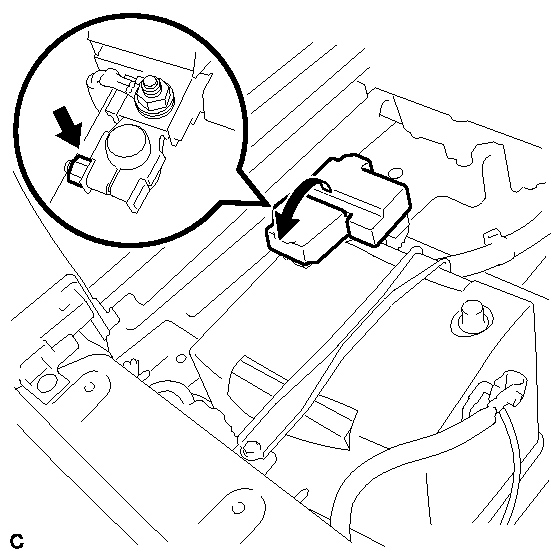

  Fig 3: Positive (+) Battery Terminal With The Nut & Battery Terminal Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
6. Install the battery terminal cap.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL REAR FLOOR FINISH PLATE . Refer to INSTALLATION - Step 39
INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 69
INSTALL SPARE WHEEL COVER ASSEMBLY (for Compact Spare Tire) . Refer to INSTALLATION - Step 50
