OEM System Circuits: Illumination: Notes

Fig 1: Illumination - Circuit Diagram (1 Of 10)

G07605388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Illumination - Circuit Diagram (2 Of 10)

G07605389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Illumination - Circuit Diagram (3 Of 10)

G07605390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

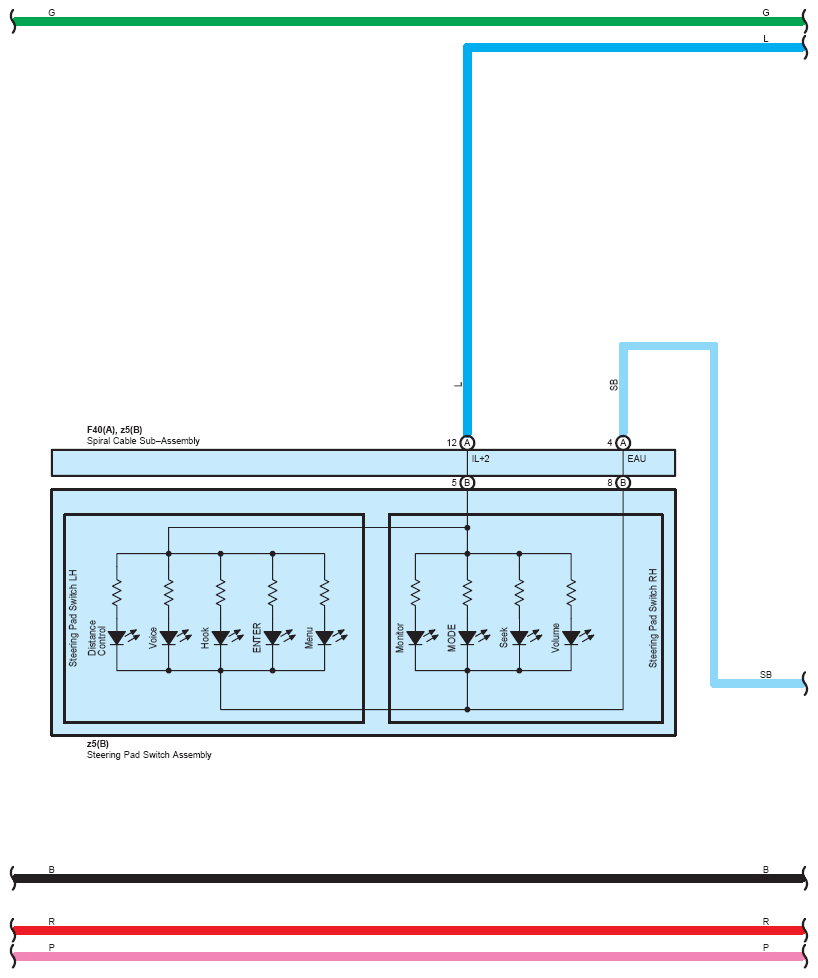

Fig 4: Illumination - Circuit Diagram (4 Of 10)

G07605391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Illumination - Circuit Diagram (5 Of 10)

G07605392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Illumination - Circuit Diagram (6 Of 10)

G07605393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Illumination - Circuit Diagram (7 Of 10)

G07605394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Illumination - Circuit Diagram (8 Of 10)

G07605395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

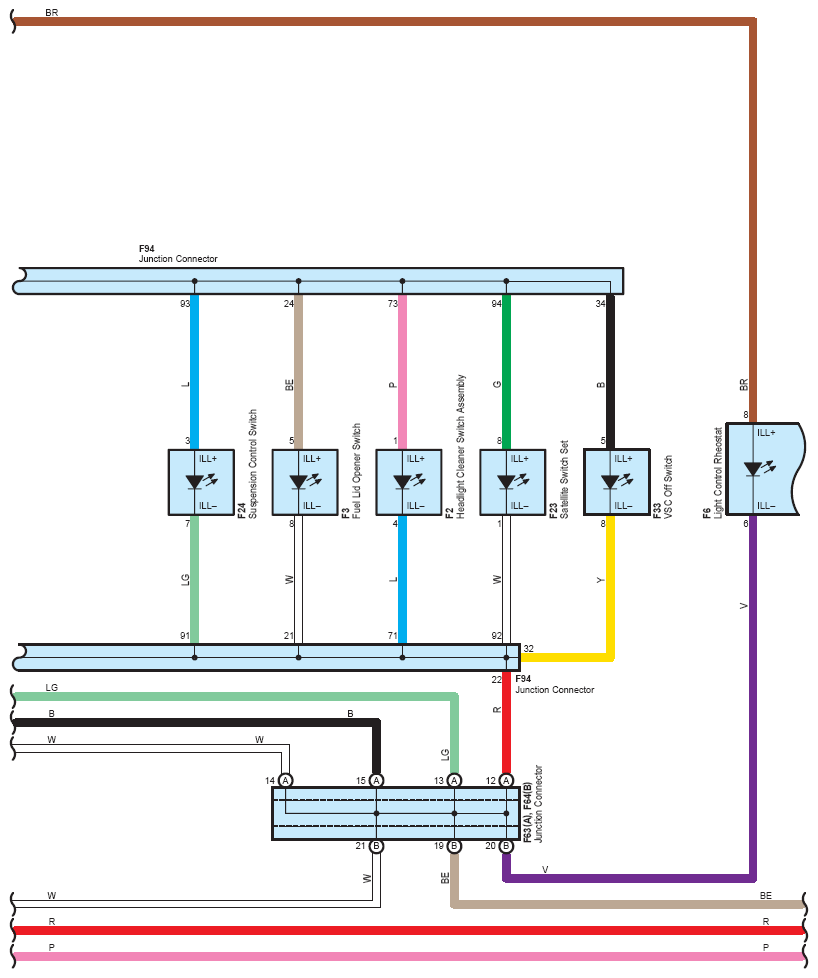

Fig 9: Illumination - Circuit Diagram (9 Of 10)

G07605396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

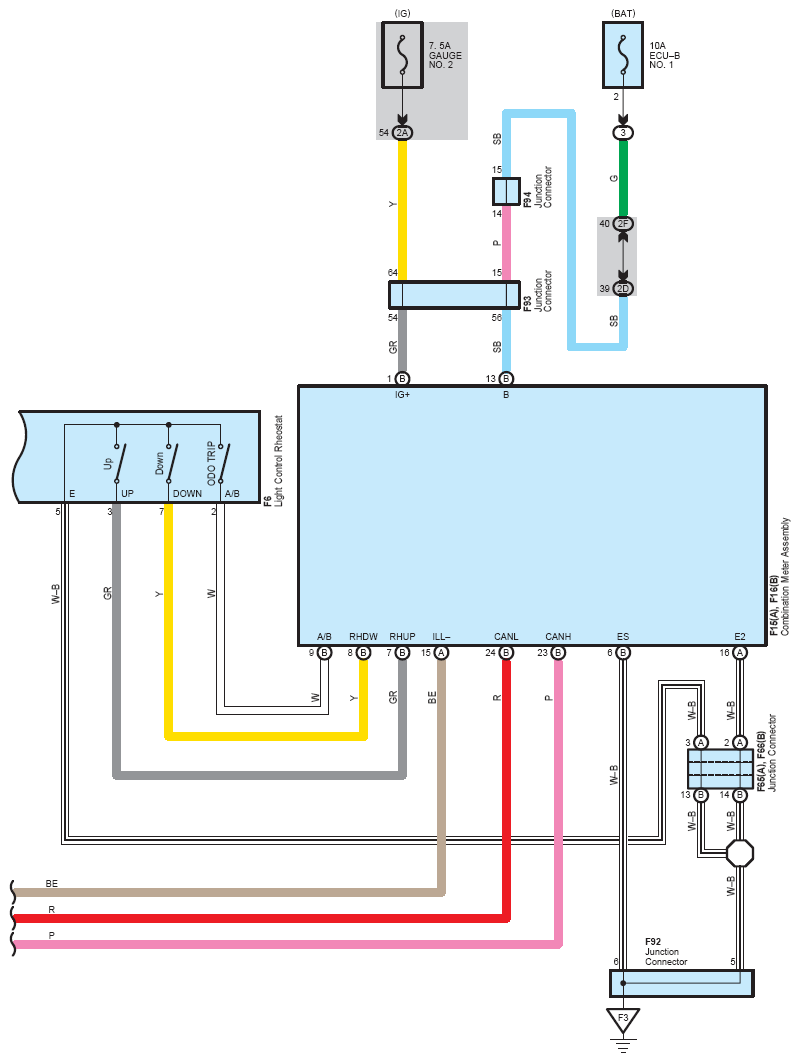

Fig 10: Illumination - Circuit Diagram (10 Of 10)

G07605397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
