LEXUS ENFORM or Safety Connect: Notes

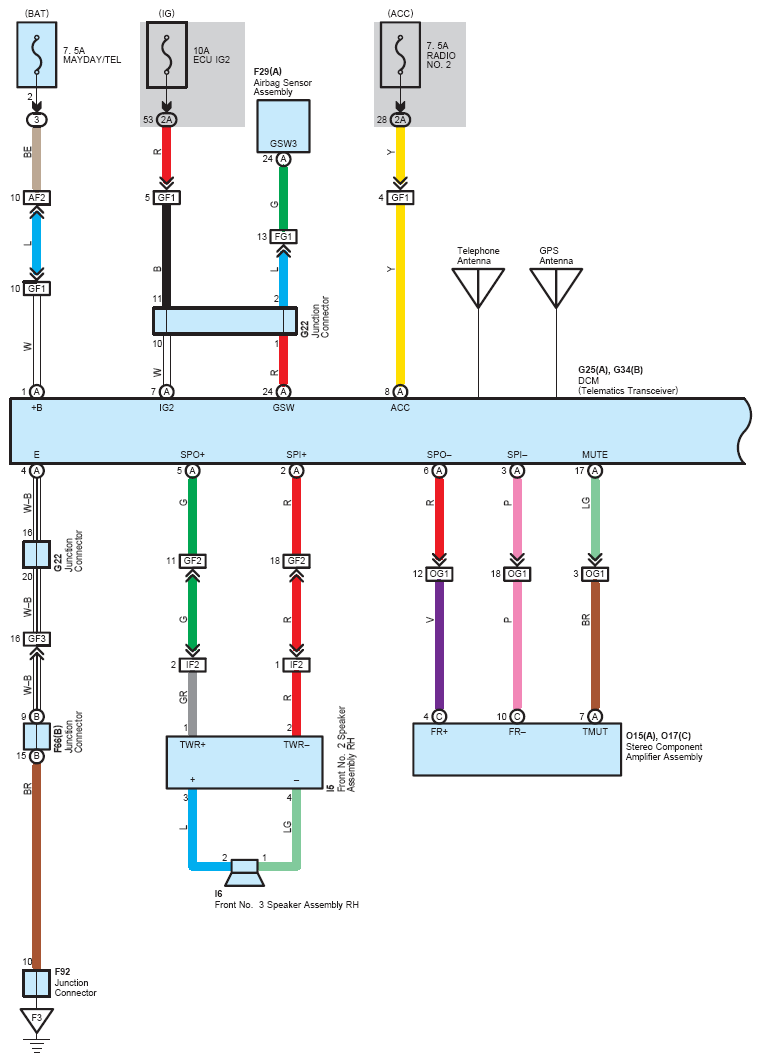

Fig 1: Lexus Enform/Safety Connect - Circuit Diagram (1 Of 5)
G07605568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

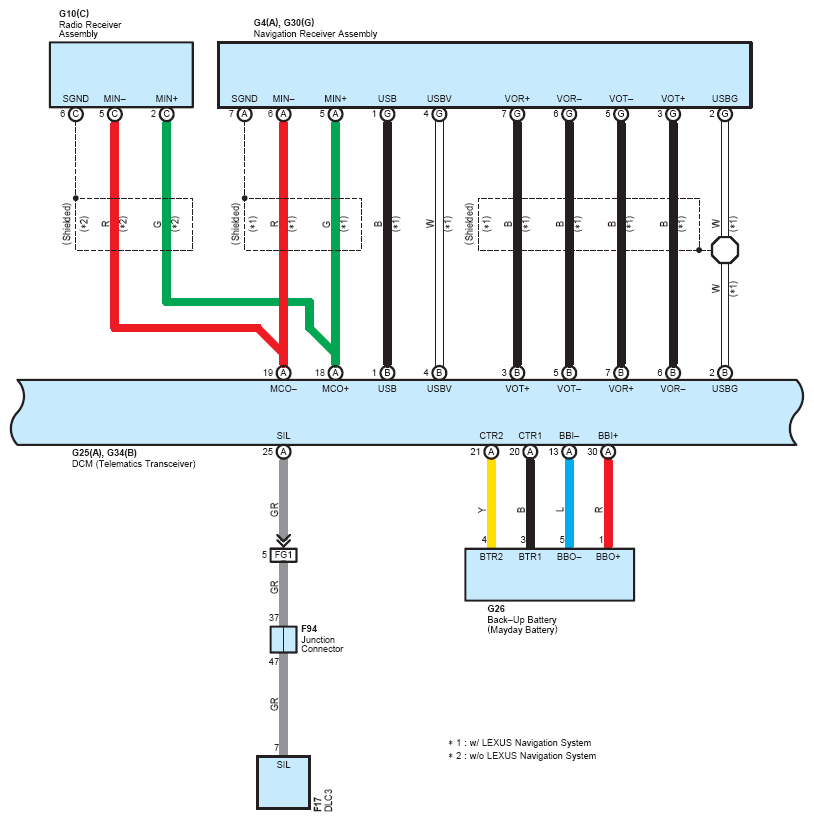

Fig 2: Lexus Enform/Safety Connect - Circuit Diagram (2 Of 5)
G07605569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

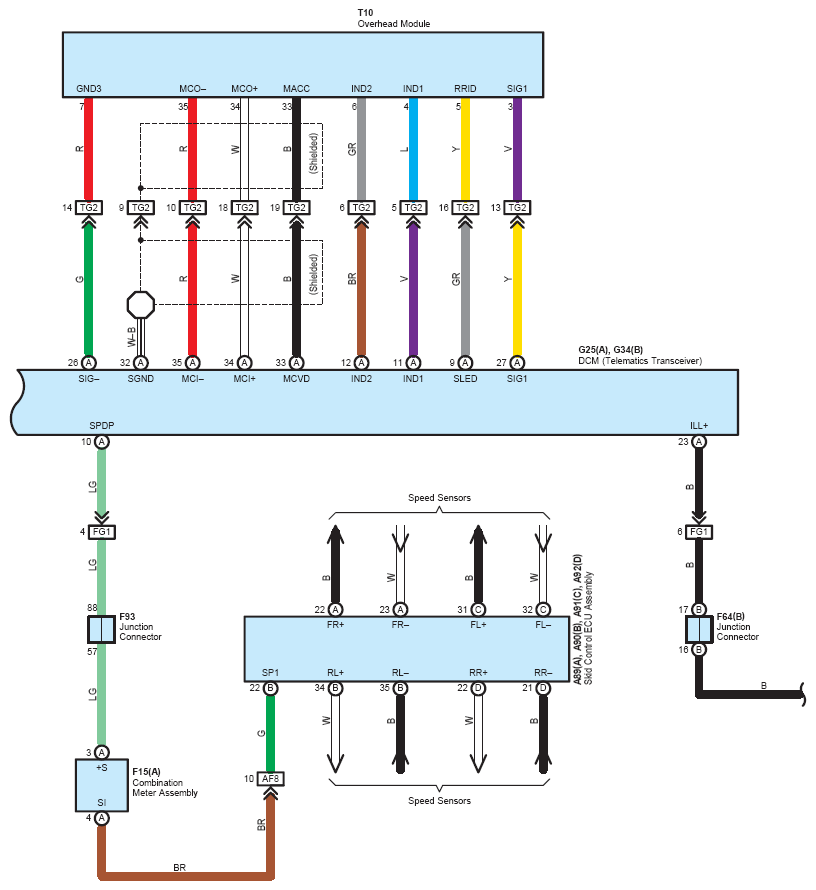

Fig 3: Lexus Enform/Safety Connect - Circuit Diagram (3 Of 5)
G07605570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

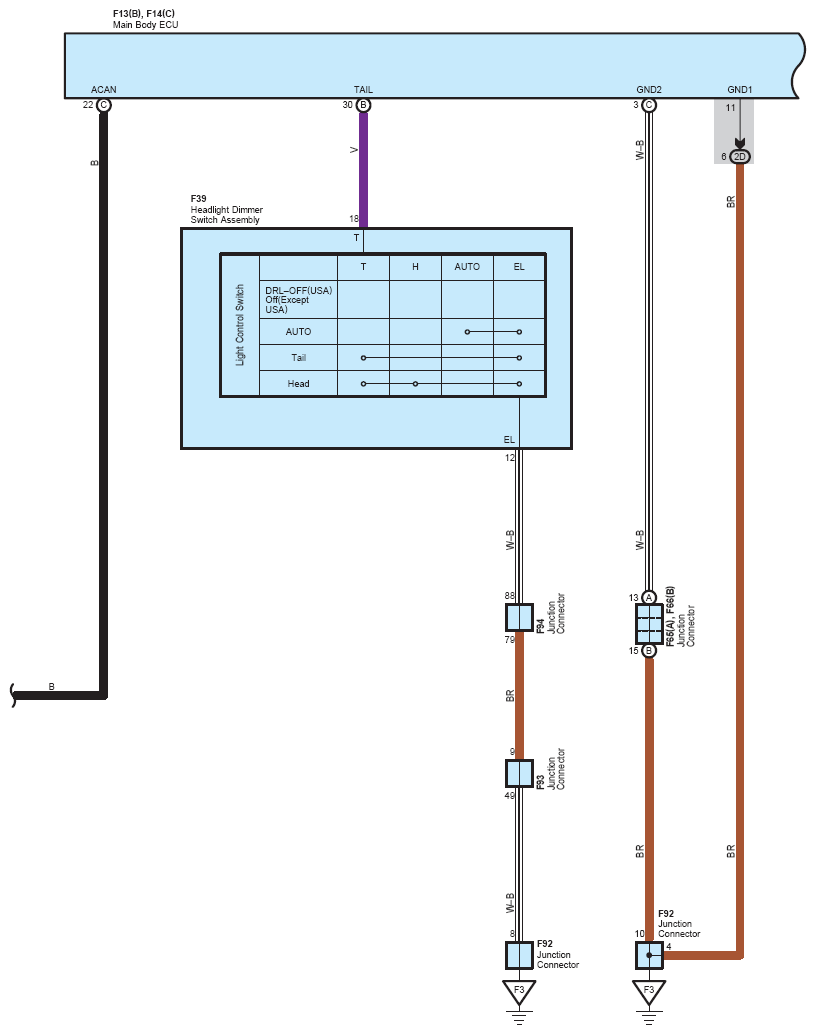

Fig 4: Lexus Enform/Safety Connect - Circuit Diagram (4 Of 5)
G07605571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

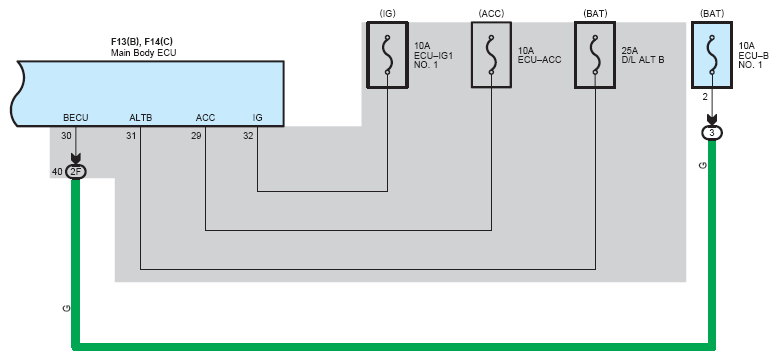

Fig 5: Lexus Enform/Safety Connect - Circuit Diagram (5 Of 5)
G07605572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
