Fuel Injector: Installation: Installation

  1. INSTALL FUEL INJECTOR ASSEMBLY
    1. Apply a light coat of spindle oil or gasoline to new O-rings, and install them to each injector.
      Fig 1: Identifying O-ring Location
      GTY250851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 New O-ring
    2. Apply a light coat of spindle oil or gasoline where the fuel delivery pipe contacts each O-ring.
      Fig 2: Positioning Fuel Injector Connector Outward
      GTY122680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Push and twist each fuel injector to install them into the fuel delivery pipe.
    4. Position each fuel injector connector outward.
      NOTE:
      • Be careful not to twist the O-rings.
      • After installing a fuel injector, check that it turns smoothly. If not, reinstall it with a new O-ring.
    5. Install 6 new injector vibration insulators to the intake manifold.
      Fig 3: Location of Injector Vibration Insulators And Intake Manifold
      GTY171257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Place the fuel delivery pipe with the 6 fuel injectors in position on the intake manifold.
      NOTE:

      Be careful not to drop the fuel injectors when installing the fuel delivery pipe.

    7. Temporarily install the 5 bolts which are used to hold the fuel delivery pipe to the intake manifold.

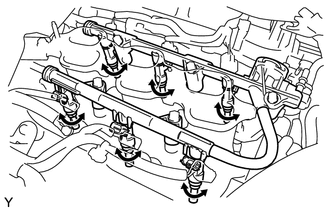

      Fig 4: Identifying Fuel Delivery Pipe And Fuel Injectors
      GTY168925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      After installing the fuel injectors, check that they turn smoothly. If not, reinstall the injectors with new O-rings.

    8. Tighten the 5 bolts which are used to hold the fuel delivery pipe to the intake manifold.
      Fig 5: Location of Fuel Delivery Pipe And Fuel Injectors
      GTY139208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    9. Connect the 6 fuel injector connectors.
      Fig 6: Location of Fuel Injector Connectors
      GTY139844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Push in the tube connector onto the pipe until the tube connector makes a "click" sound.

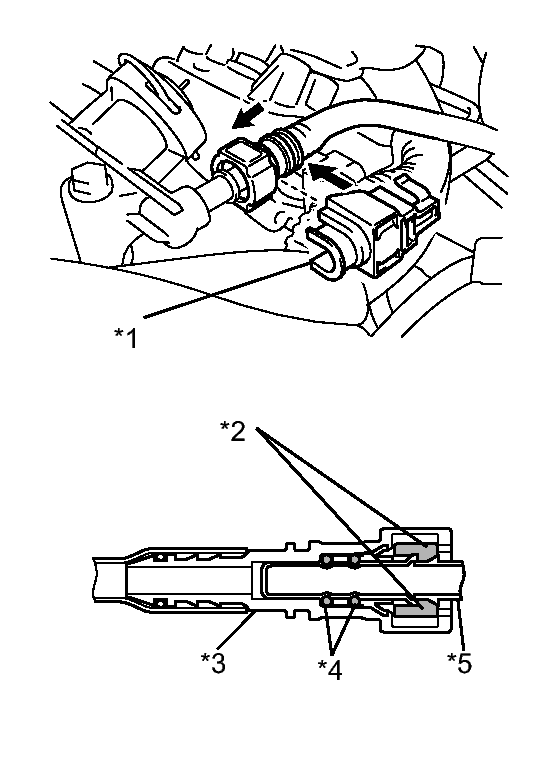

      Fig 7: Identifying Intake Air Surge Tank Assembly
      GTY251206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 2 Fuel Pipe Clamp
      *2 Retainer
      *3 Fuel Tube Connector
      *4 O-ring
      *5 Pipe
      NOTE:
      • Before connecting the tube, make sure that it is not damaged. Make sure that there is no dirt present on the connecting surfaces.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
    2. Install the No. 2 fuel pipe clamp.
  3. INSTALL EGR DELIVERY CHAMBER  . Refer to INSTALLATION - Step 6
  4. INSTALL NO. 2 EGR PIPE  . Refer to INSTALLATION - Step 2
  5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY  . Refer to INSTALLATION - Step 8
  6. INSTALL AIR CLEANER ASSEMBLY WITH HOSE

    HINT:

    Refer to INSTALLATION

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  8. INSTALL REAR DECK FLOOR BOX  . Refer to INSTALLATION - Step 69
  9. INSPECT FOR COOLANT LEAK (for Engine)  . Refer to ON-VEHICLE INSPECTION - Step 1
  10. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
