Height Control Compressor: Removal: Removal

WARNING:

Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

NOTE:

Before removal, make sure to disable vehicle height control by pressing the height control OFF switch and confirming that the height control OFF indication is displayed on the meter.

PRECAUTION (w/ Navigation System for HDD)
NOTE:
After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
REMOVE REAR DECK FLOOR BOX . Refer to REMOVAL - Step 2
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR

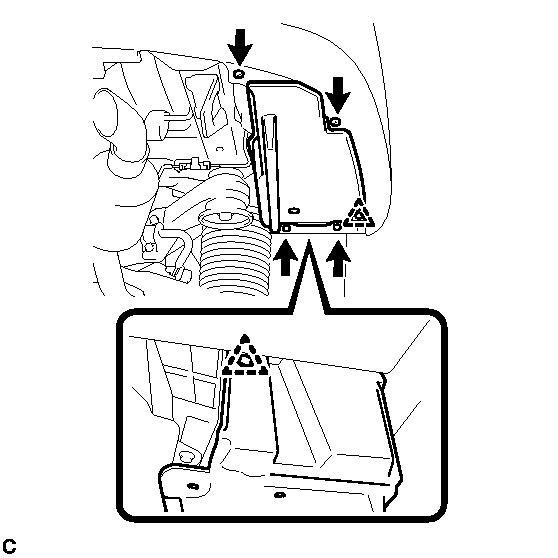

1. Remove the 2 bolts and 2 screws.

  Fig 1: Remove The 2 Bolts And 2 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clips and No. 1 luggage compartment side cover protector.
REMOVE CAP GROMMET
1. Disconnect the clamp and hose from the cap grommet.
2. Remove the cap grommet from the No. 1 rear bumper reinforcement.

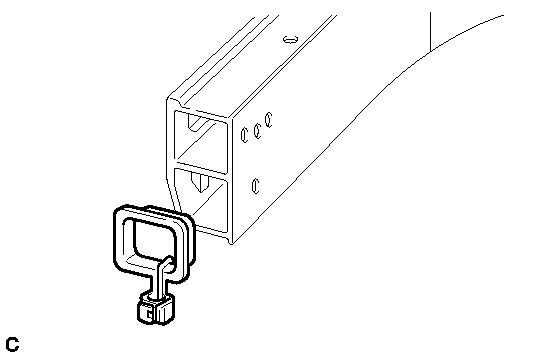

  Fig 2: Remove The Cap Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL COMPRESSOR WITH BRACKET
1. Remove the holder and disconnect the air tube from the height control way.

  Fig 3: Remove The Holder And Disconnect The Air Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  For the disconnecting procedure of the tube (type 3), refer to Precaution of the suspension control system. Refer to PRECAUTION .
2. Disconnect the 2 connectors.

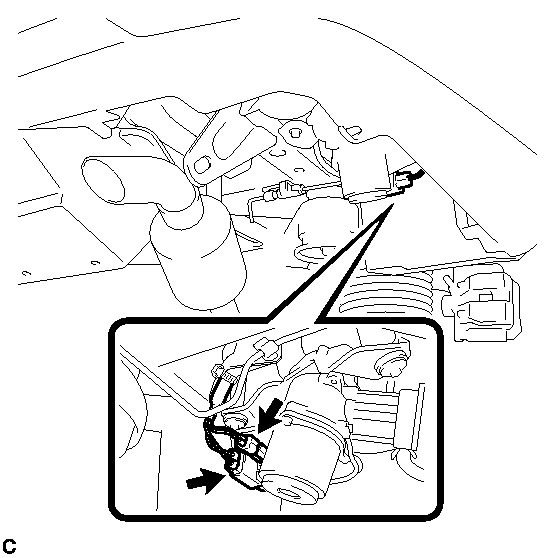

  Fig 4: Location of 2 Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the wire harness clamp from the bracket.

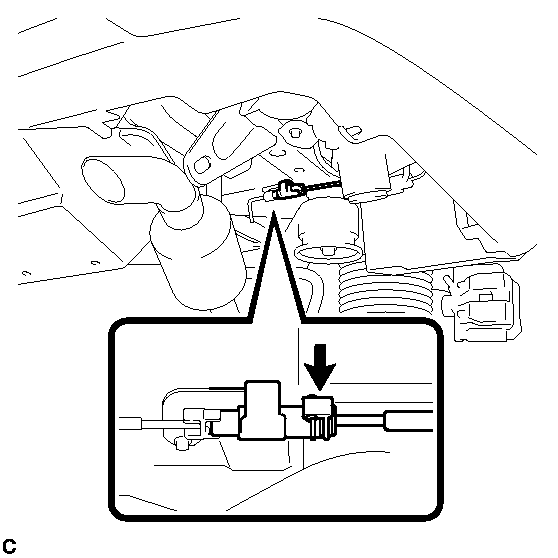

  Fig 5: Location of Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

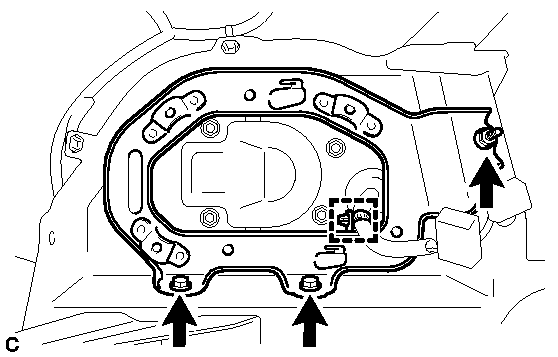

4. Remove the 4 bolts and height control compressor with bracket.

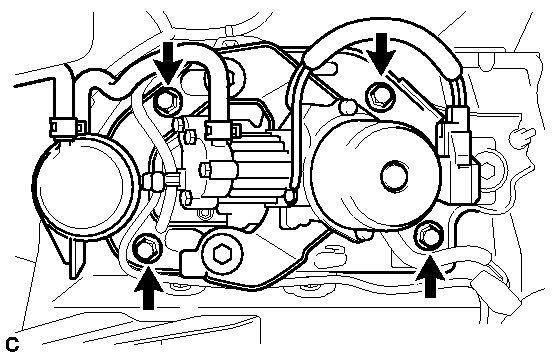

  Fig 6: Remove the 4 Bolts And Height Control Compressor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL COMPRESSOR BRACKET

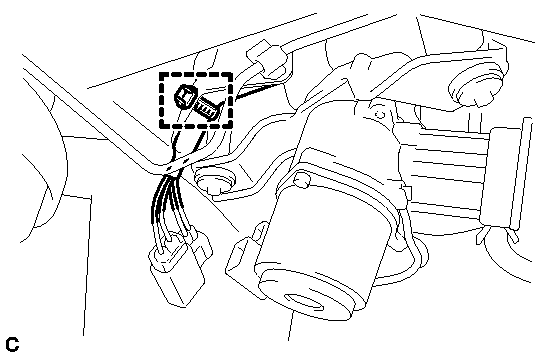

1. Disengage the wire harness clamp.

  Fig 7: Identifying 2 Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts, nut and height control compressor bracket from the body.
REMOVE HEIGHT CONTROL FILTER
1. Separate the 2 clips and 2 height control hoses.

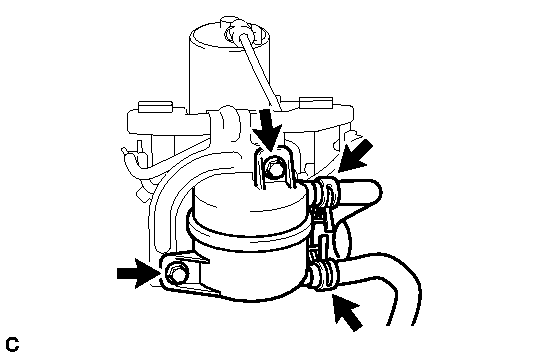

  Fig 8: Separate The 2 Clips And 2 Height Control Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and height control filter.
REMOVE NO. 1 HEIGHT CONTROL HOSE
1. Remove the clip and No. 1 height control hose.

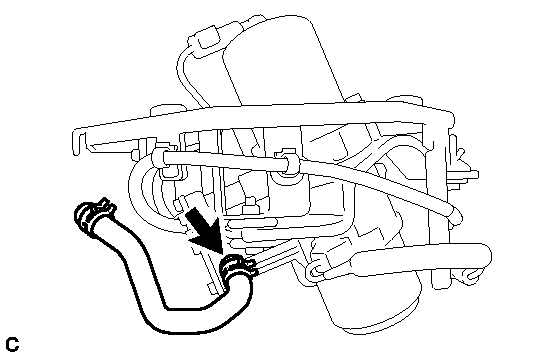

  Fig 9: Remove The Clip And No. 1 Height Control Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 HEIGHT CONTROL TUBE
1. Remove the holder.

  Fig 10: Remove The Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  For the disconnecting procedure of the tube (type 3), refer to Precaution of the suspension control system. Refer to PRECAUTION .
2. Separate the 3 clamps and disconnect the No. 2 height control tube from the height control compressor assembly.

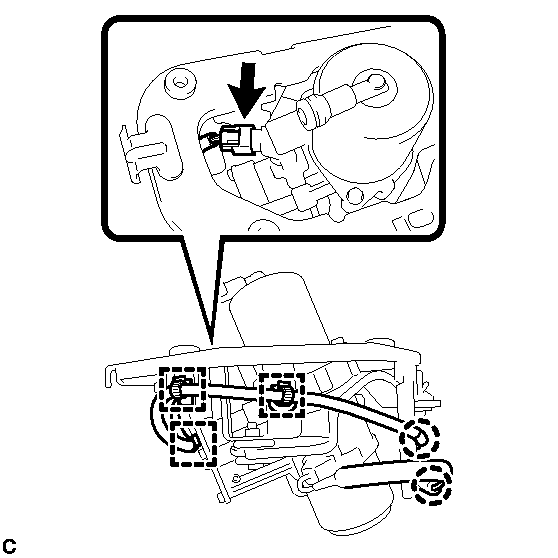

REMOVE HEIGHT CONTROL VALVE HARNESS ASSEMBLY
1. Disconnect the connector and disengage the 3 clamps from the bracket.

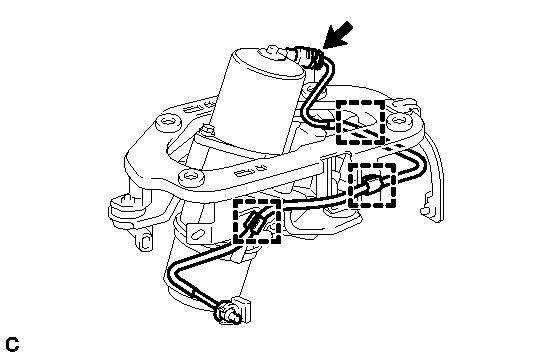

  Fig 11: Identifying 3 clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the connector's claw and height control valve harness assembly.
REMOVE HEIGHT CONTROL COMPRESSOR ASSEMBLY
1. Remove the 3 bolts, 3 bushings and bracket from the compressor.

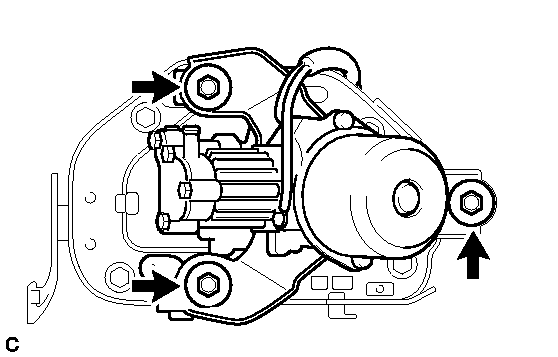

  Fig 12: Remove The 3 Bolts, 3 Bushings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
