Navigation System (Service Information): Multi-Display: Components: Illustration

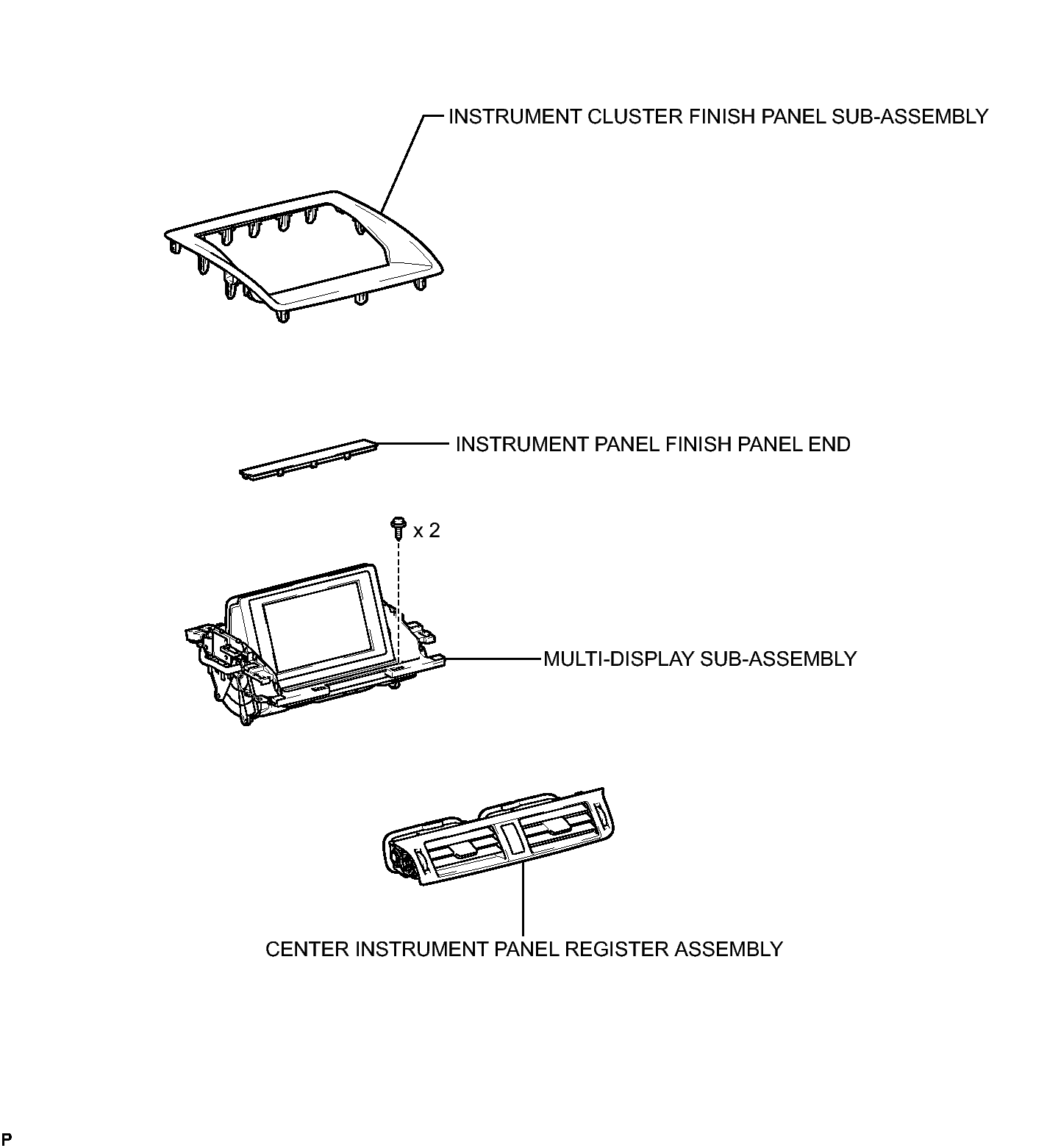

Fig 1: Identifying Multi-Display Replacement Components

GTY353931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

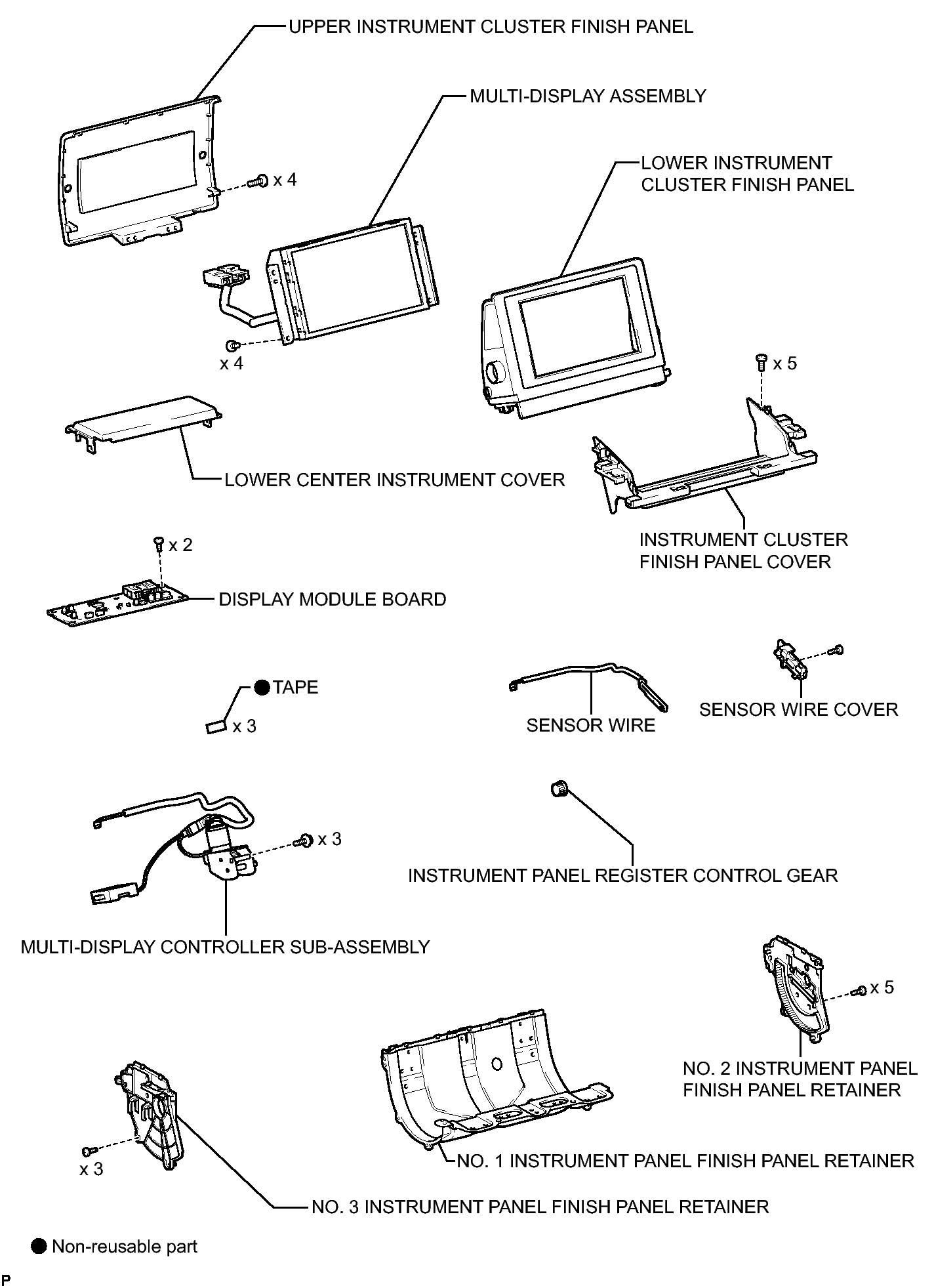

Fig 1: Identifying Multi-Display Replacement Components

GTY350354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

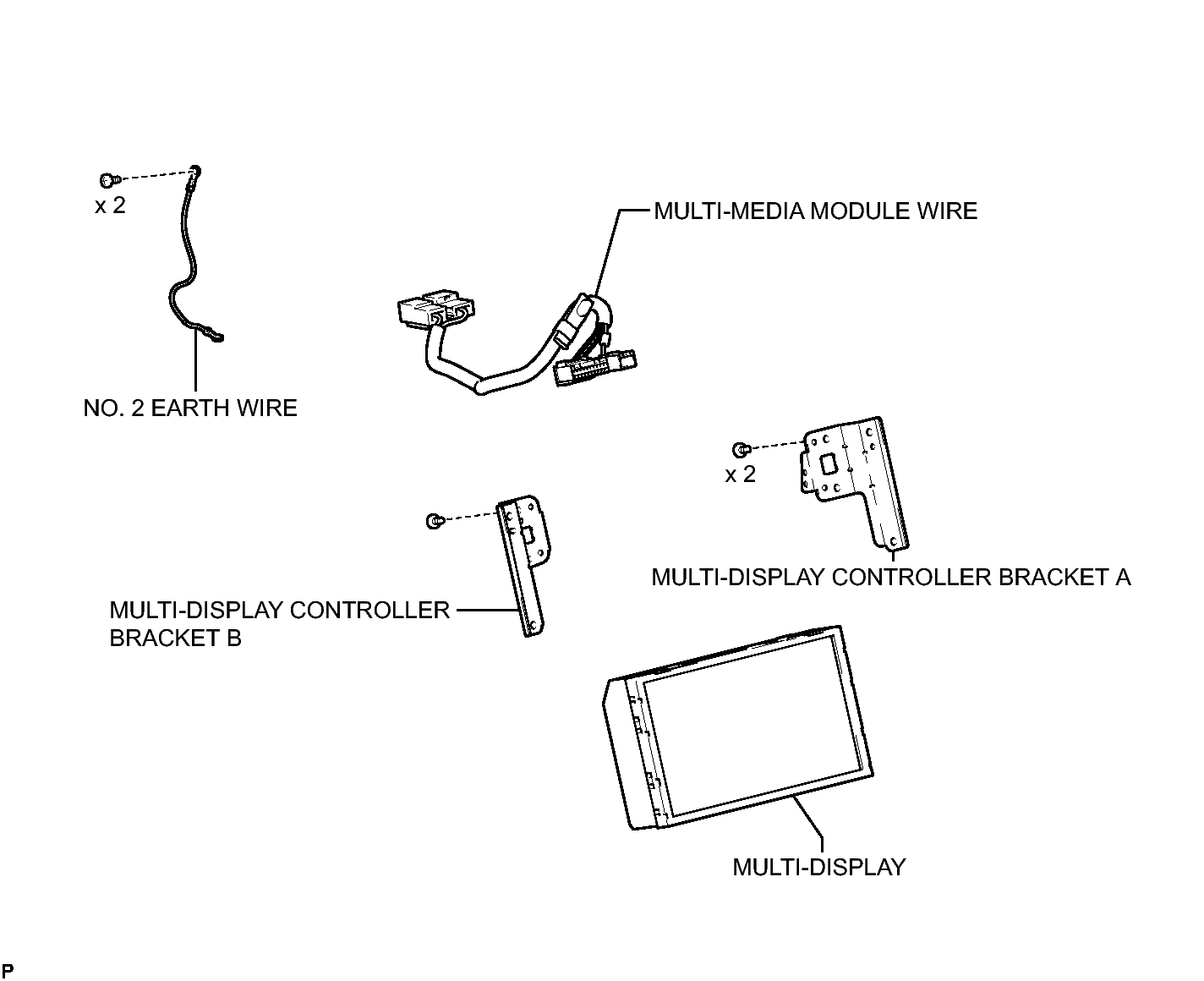

Fig 1: Identifying Multi-Display Replacement Components

GTY350166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
