Parts Location: Illustration

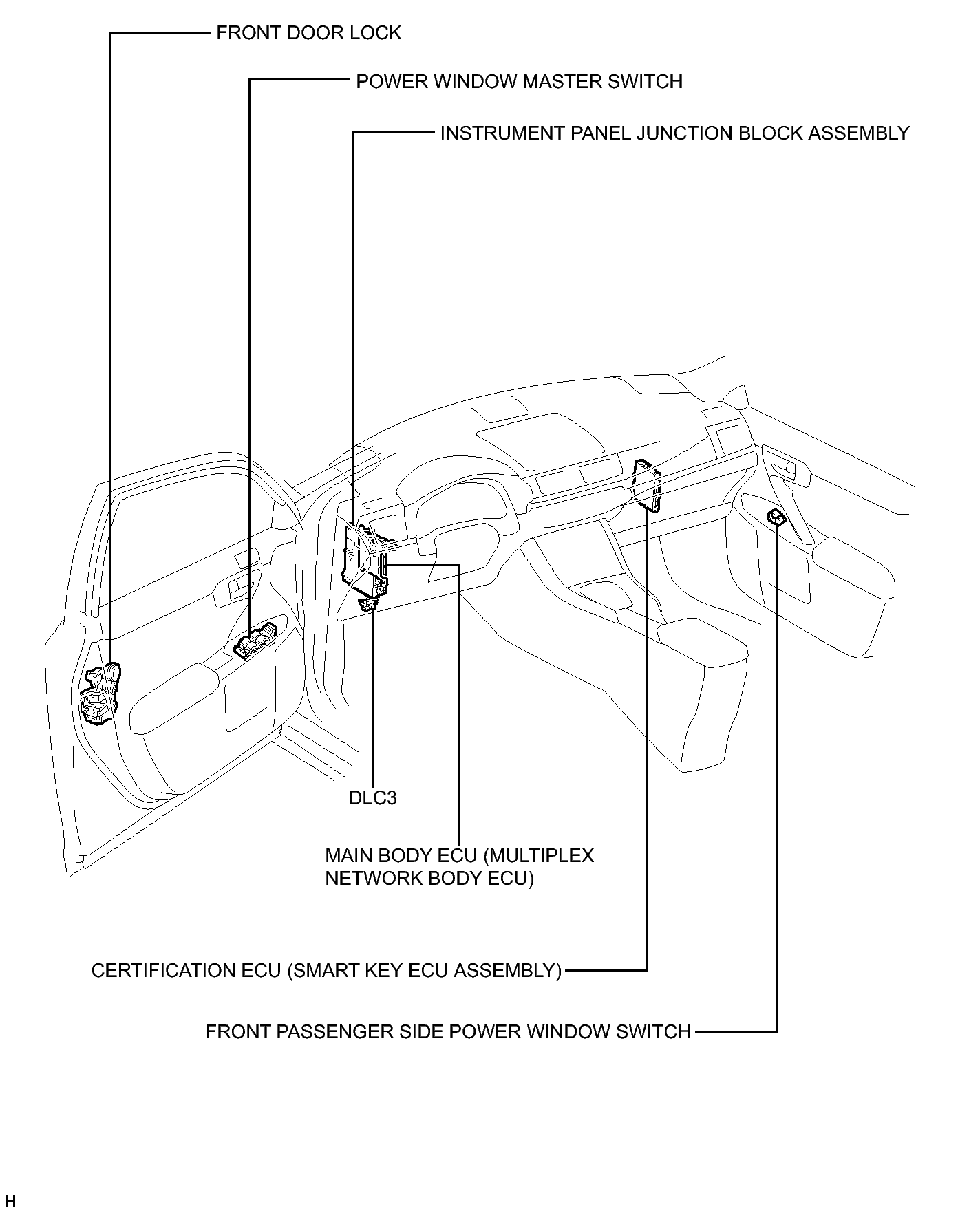

Fig 1: Identifying Power Window Control System Components Location (1 of 2)
GTY357270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

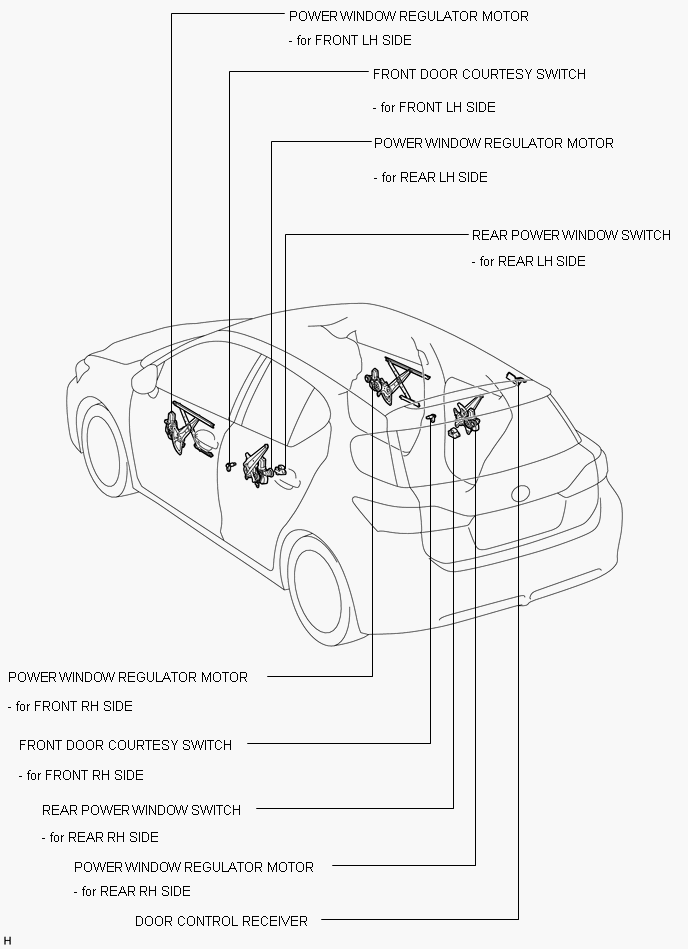

Fig 1: Identifying Power Window Control System Components Location (2 of 2)
GTY356770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
