Brake Pedal Stroke Sensor: Removal: Removal

NOTE:

While the battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch is turned on. Therefore, when servicing brake system components, do not depress the brake pedal or open/close the doors while the battery is connected.

REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL
REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY
1. Disconnect the connector from the brake pedal stroke sensor assembly.

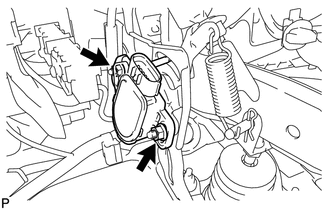

  Fig 1: Identifying Brake Pedal Stroke Sensor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.

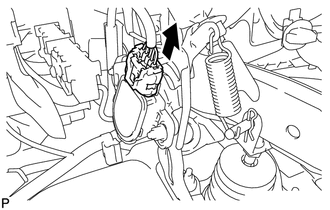

  Fig 2: Identifying Brake Pedal Stroke Sensor Assembly And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not drop the brake pedal stroke sensor assembly.
  - If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
