Parts Location: Illustration

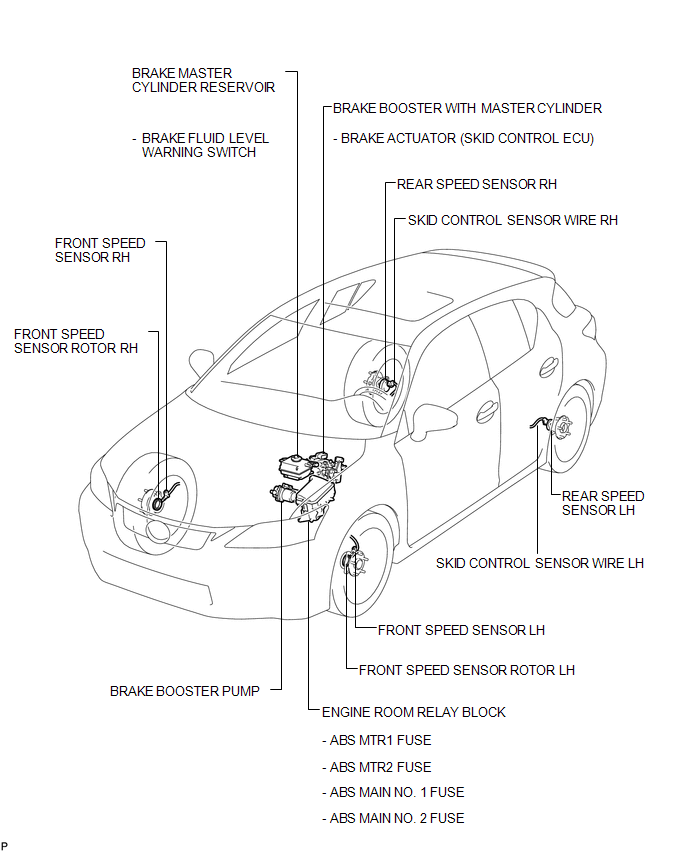

Fig 1: Identifying Electronically Controlled Brake System Components Location (1 Of 2)
GTY357417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

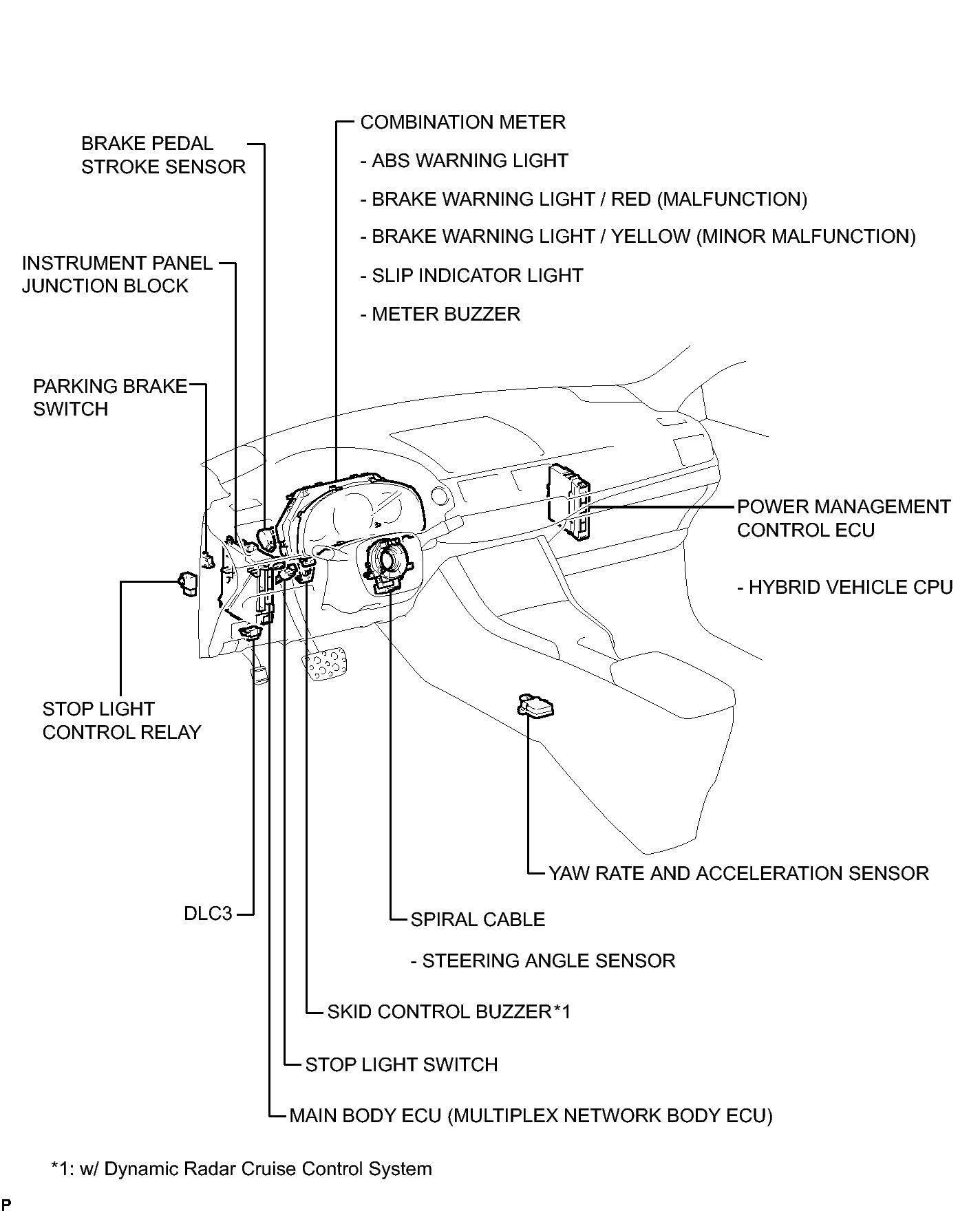

Fig 1: Identifying Electronically Controlled Brake System Components Location (2 Of 2)
GTY353037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
